Divimath Digital & Analog FPV Monitor

Divimath Monitor is a compact, high-brightness field monitor designed to improve situational awareness and make FPV video easy to monitor and share. Whether you are monitoring nearby aircraft, spotting during races, searching for active analog video signals, or sharing a live FPV feed with a teammate or observer, Divimath Monitor delivers fast, reliable video with minimal setup.

Select between Digital Wide, Digital Narrow, and Analog operating modes for faster signal acquisition and more control over RF monitoring. Auto Scan quickly searches for a valid signal, while Loop Scan continuously monitors analog channels and automatically resumes scanning if the detected signal is lost.

In addition to typical analog video bands like R, A, B, E and F, Divimath monitor offers analog bands M, H, Y, and T, providing channel coverage from 4.9 GHz to 6.0 GHz. Weak, unstable, and no-signal analog inputs display static instead of a blank screen, making it easier to identify nearby transmissions and troubleshoot marginal video links.

For encrypted Divimath digital links, simply enter the matching password on the monitor to securely decode and display the video feed.

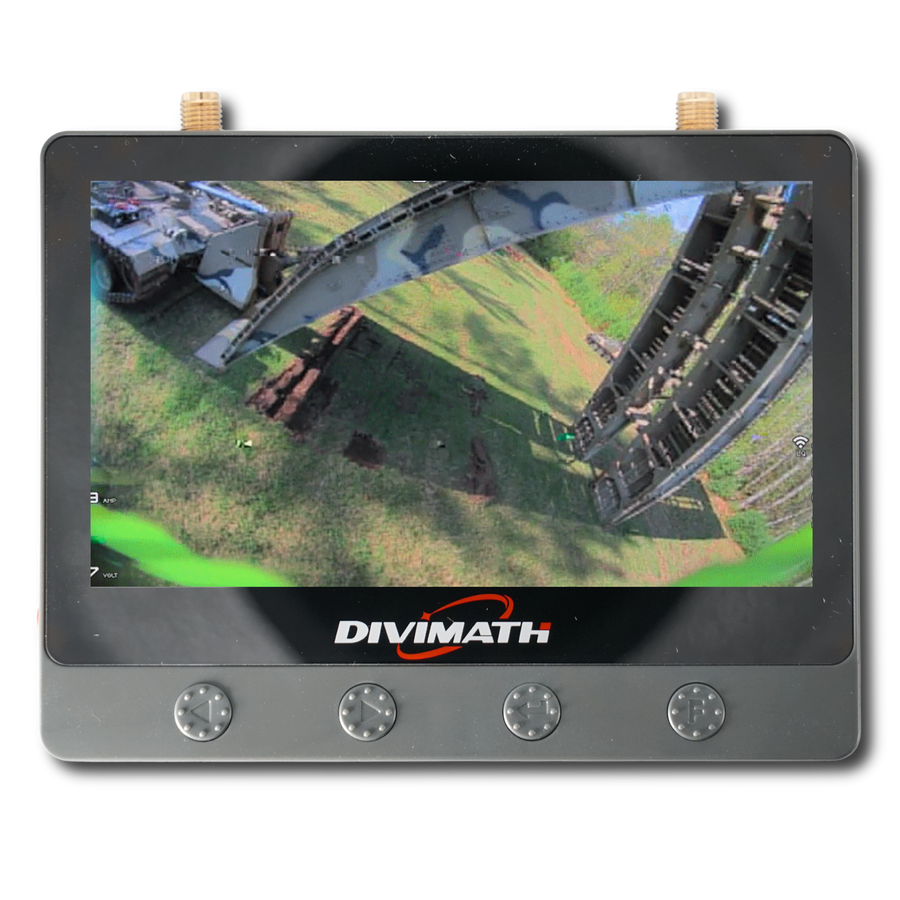

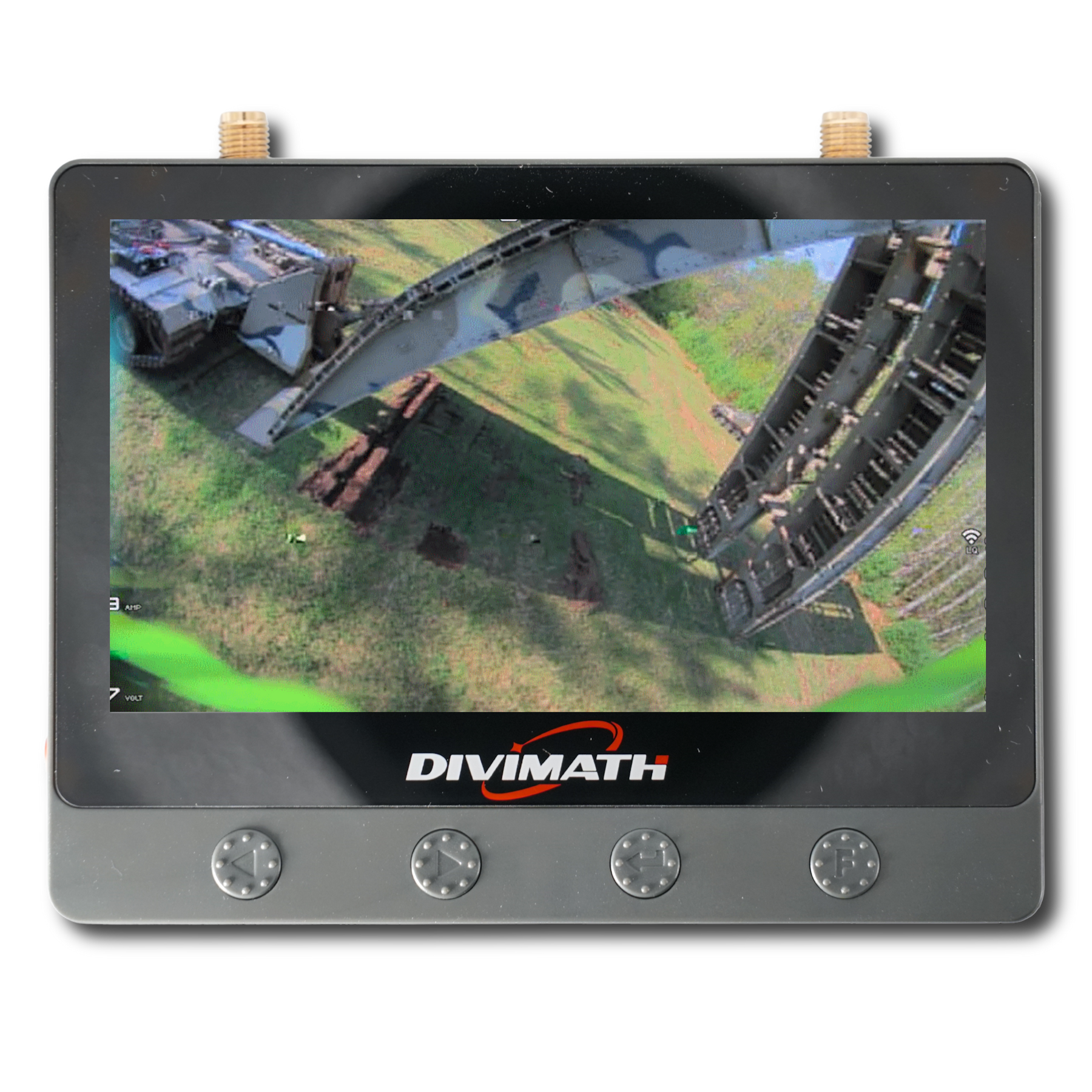

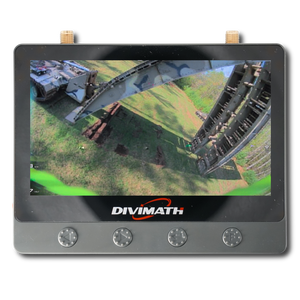

The 4.3-inch, 800-nit anti-glare display provides excellent outdoor visibility. Select between 4:3 and 16:9 aspect ratios to properly display different video sources. For night operations, the monitor includes a black standby screen and a red-tint display mode designed to help preserve the operator's natural night vision.

HDMI output makes it easy to share both Divimath digital and analog video on an external display for coordination, training, demonstrations, or spectator viewing.

Features

• Fast boot-up using the red power switch
• Select between Digital Wide, Digital Narrow, and Analog operating modes
• Selected operating mode is retained after reboot
• Auto Scan quickly searches for and locks onto valid digital or analog signals
• Loop Scan continuously detects nearby analog video signals and resumes scanning if a signal is lost
• Expanded analog support for M, H, Y, and T bands, covering 4.9 GHz to 6.0 GHz
• Displays static for weak, unstable, or missing analog signals instead of defaulting to a blank screen
• Encrypted Divimath video decoding using a matching password
• 4.3-inch 720p LCD with 800-nit brightness and anti-glare screen protector
• Selectable 4:3 and 16:9 display aspect ratios
• Red-tint mode helps preserve natural night vision during low-light operations
• Black standby screen for night operations
• UART control for LCD backlight and red-tint mode
• Shared antennas for Divimath digital and analog video
• Deinterlaced and upscaled analog video with adaptive comb filtering

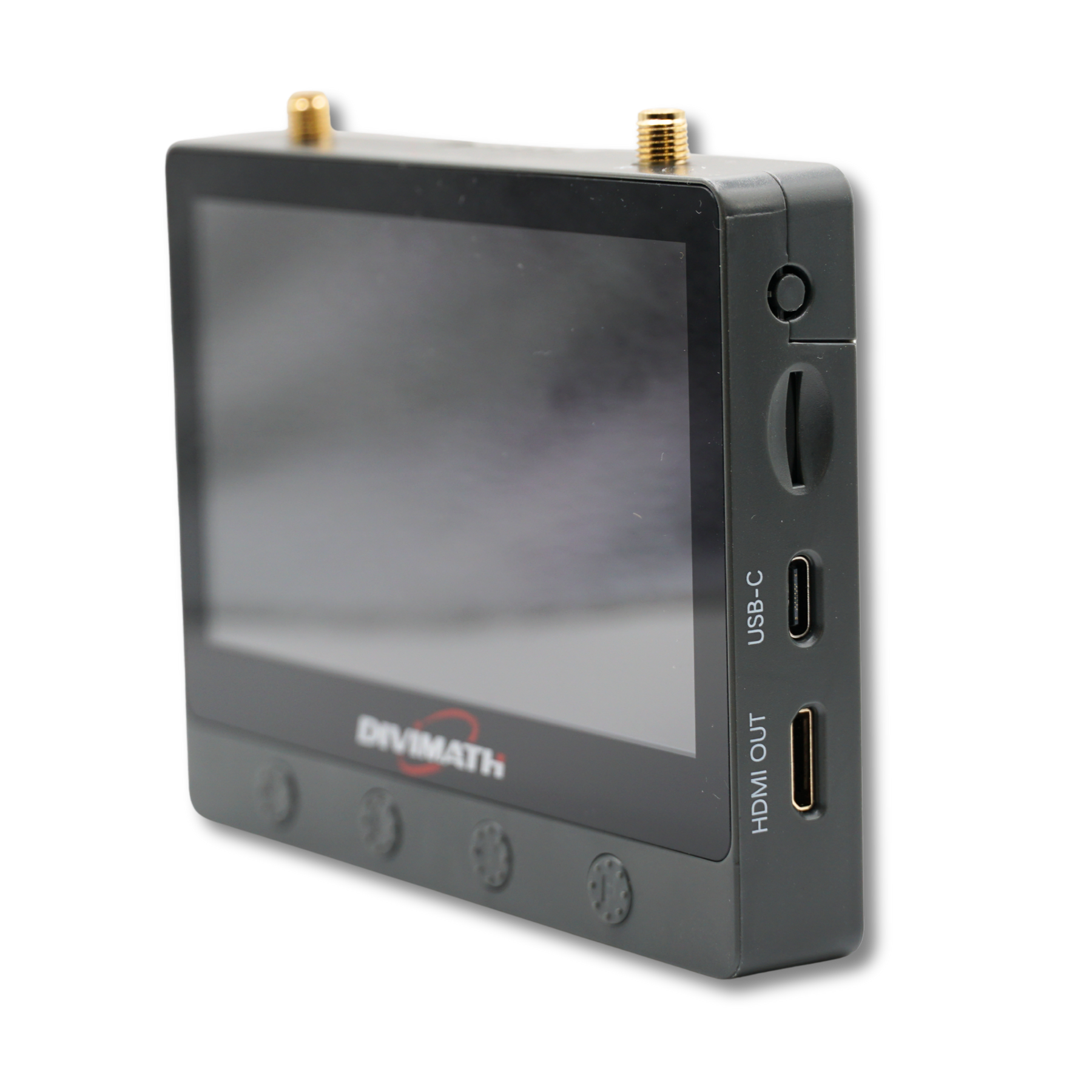

• HDMI output for both Divimath digital and analog video
• Supports CVBS analog video input and audio line output
• USB Type-C port for parameter adjustment and firmware updates

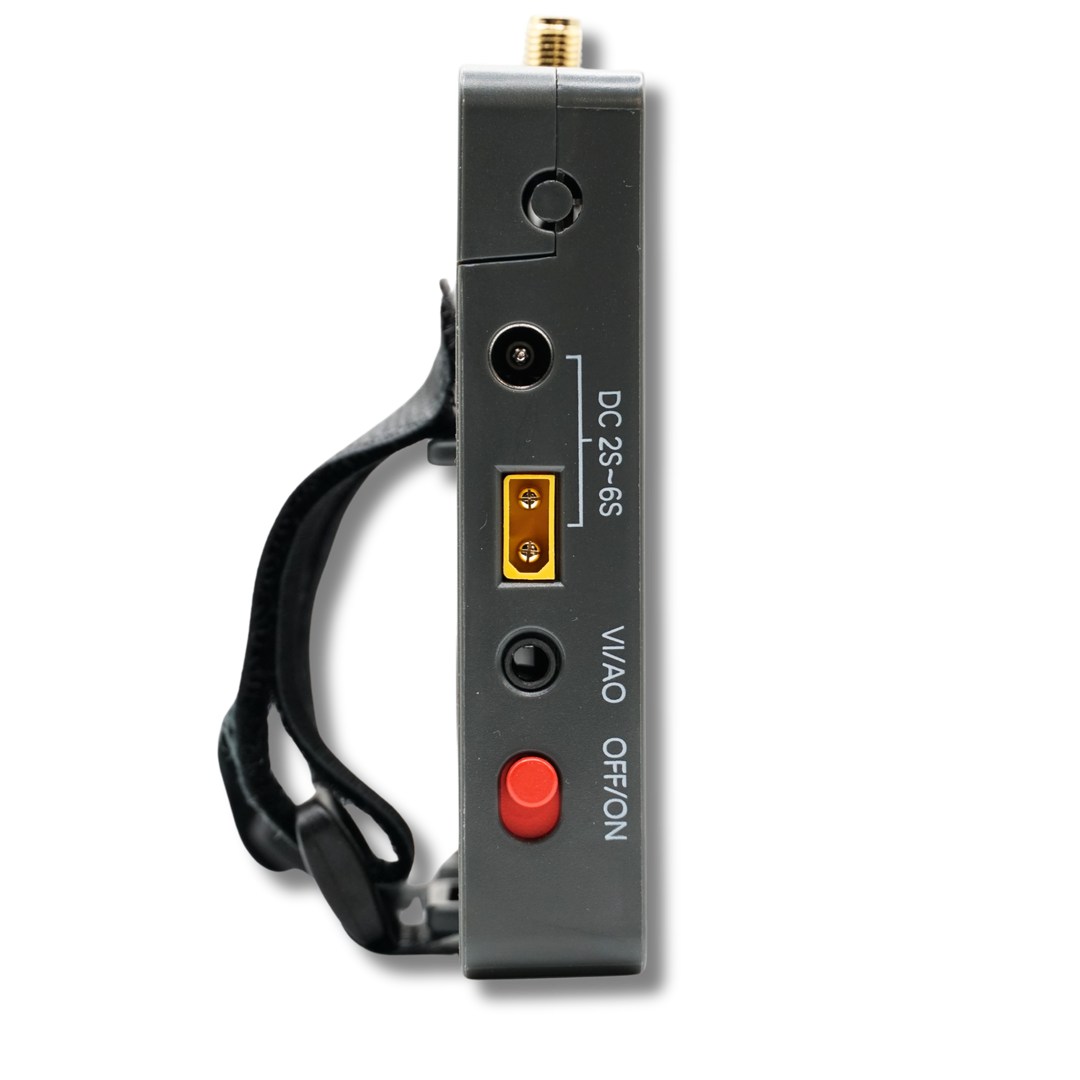

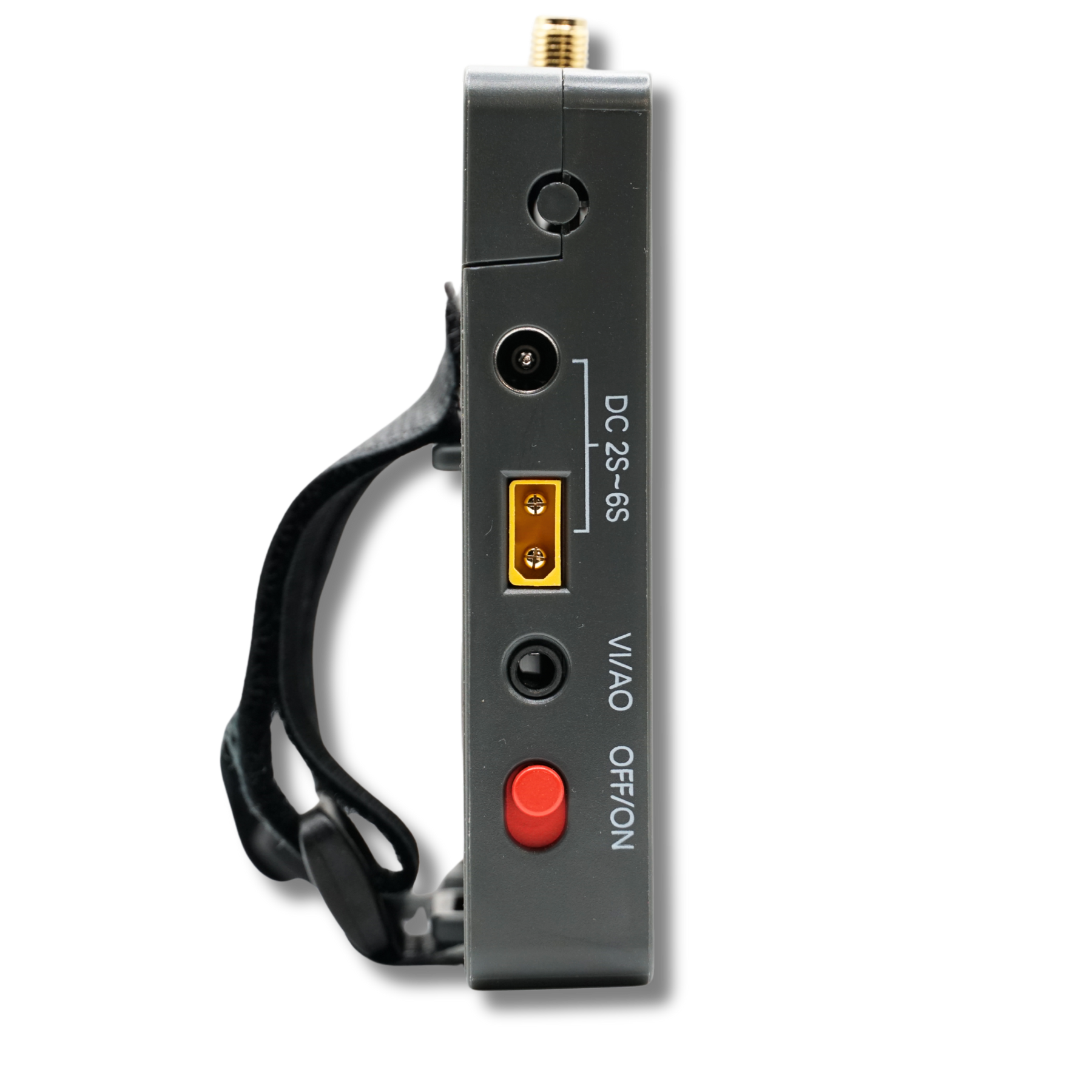

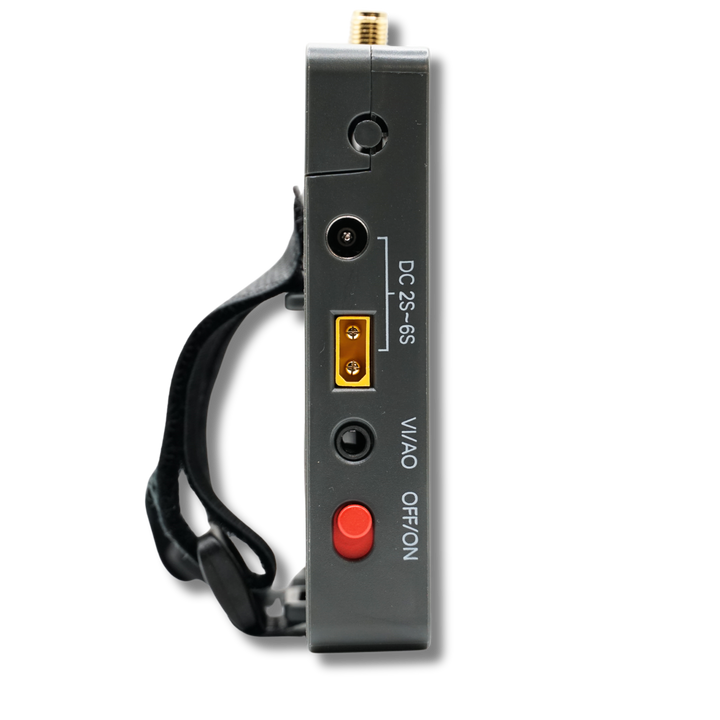

• 2S-6S power input through XT30 or DC input with polarity protection and a recoverable fuse

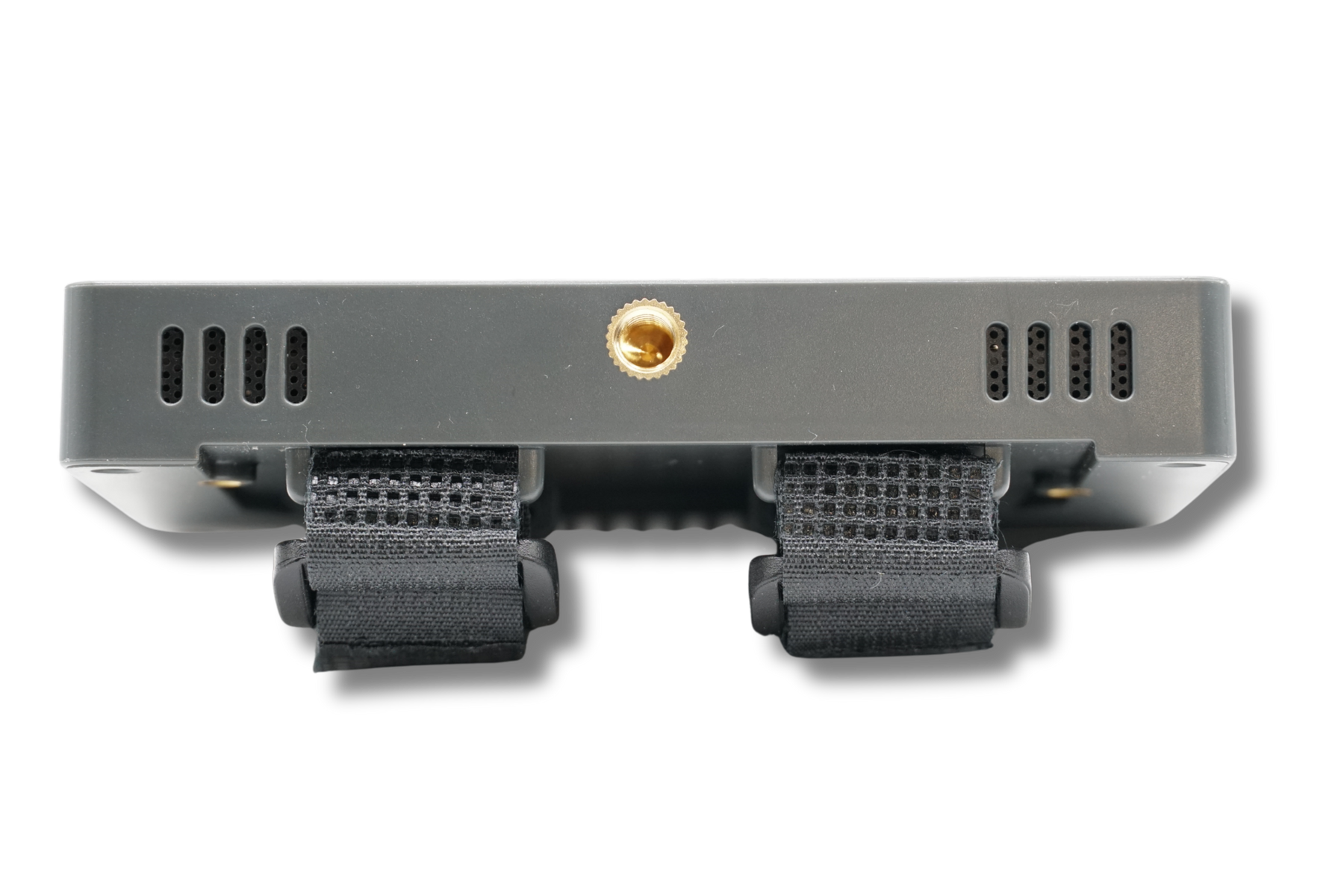

• 1/4-20 threaded tripod mount on the bottom
• Durable black enclosure suitable for field use

UART control documentation is available upon request. Contact ndaa@DivimathInc.com for details.

Compliance and Origin

NDAA compliant
Country of Origin: Thailand
