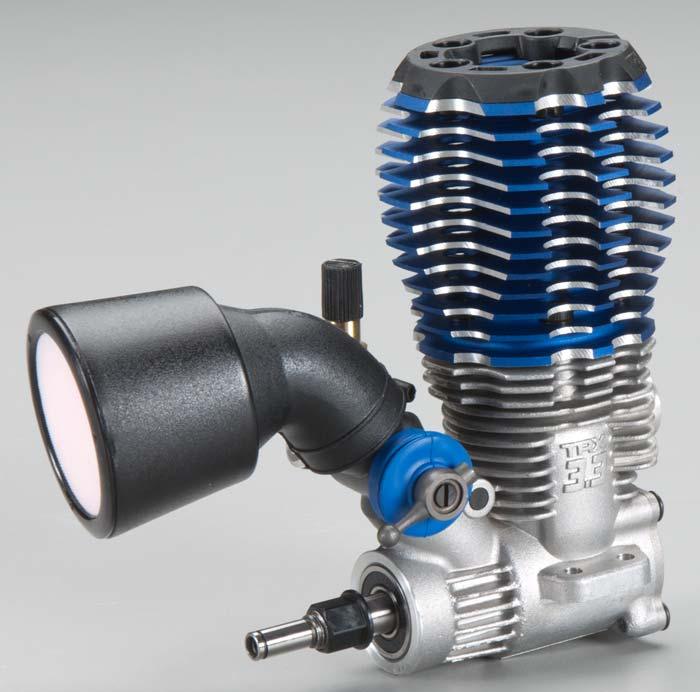

Traxxas 5404 TRX 3.3 Engine IPS Shaft with out Start

Traxxas TRX 3.3 IPS Shaft

Features:

• For use in all Traxxas TRX2.5 and TRX 3.3 equipped vehicles with flywheel access
• 60% more peak power than the TRX2.5, with nearly 50% more power under the curve for strong linear acceleration
• One-piece IPS crank provides precise gear mesh and eliminates vibration
• Rear exhaust
• Molded LCP (Liquid Crystal Polymer) body slide valve carburetor with high-volume air filter
• Blue anodized aluminum cooling head with molded head protector

Includes:

• Traxxas TRX 3.3 Racing Engine with IPS crankshaft, air filter, filter oil, setup DVD, illustrated instruction manual and glow plug

Specs:

• Displacement: .20 cu in (3.3cc)
• Specs such as bore, stroke, RPM and horsepower are not provided, contact Traxxas for further details
• Weight: 9.1oz (257g)
• Distance between mounting holes same side: 0.43" (11mm)
• Distance between mounting holes opposite side: 1.2" (32mm)
• Distance from center of engine to front bearing: 1.2" (32mm)
• Distance/bottom of mounting flanges/top of cylinder head: 3.6" (92mm)
• Distance/ crankcase bottom to top of cylinder head: 44" (105mm)
• Width of mounting flanges: 1.5" (39.5mm)
