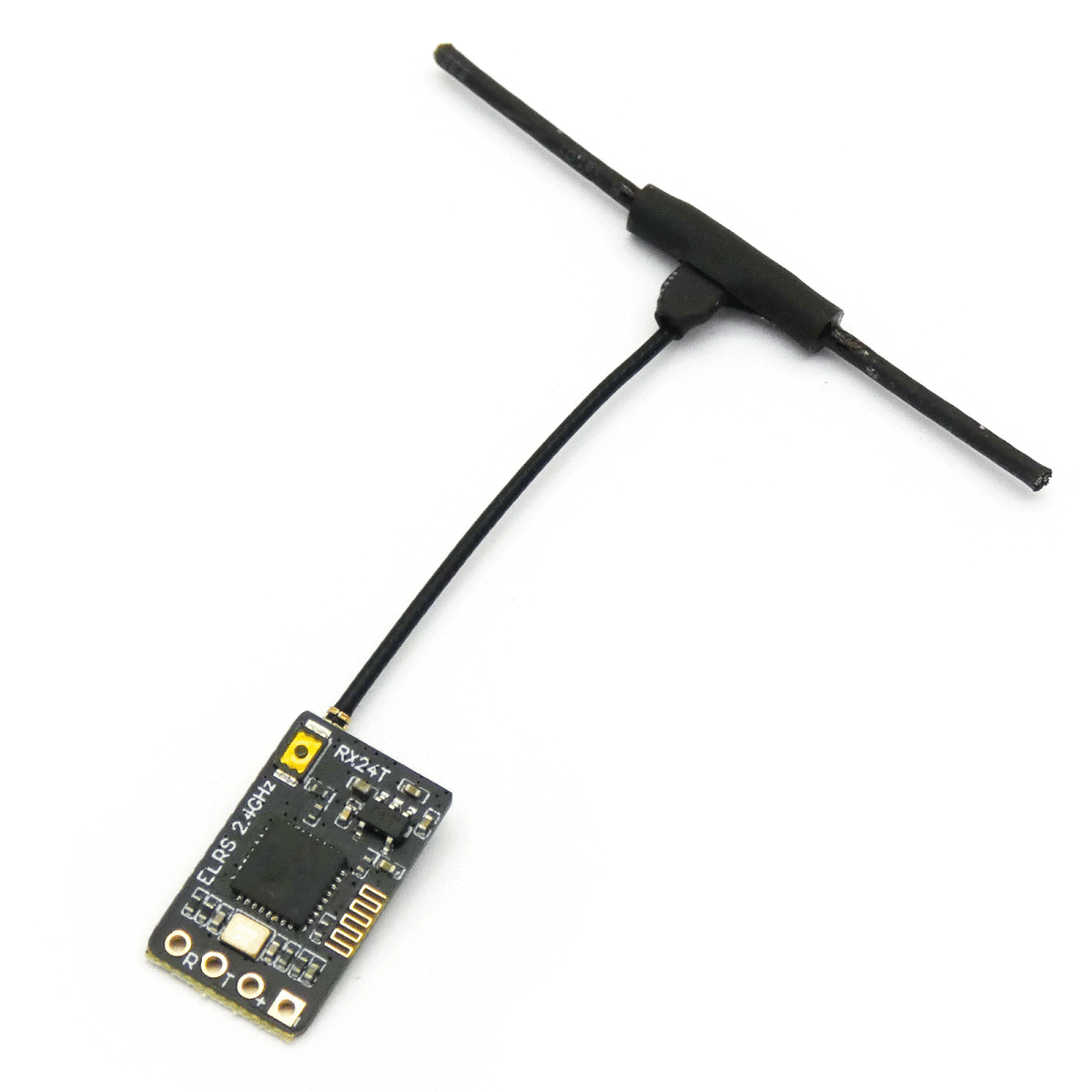

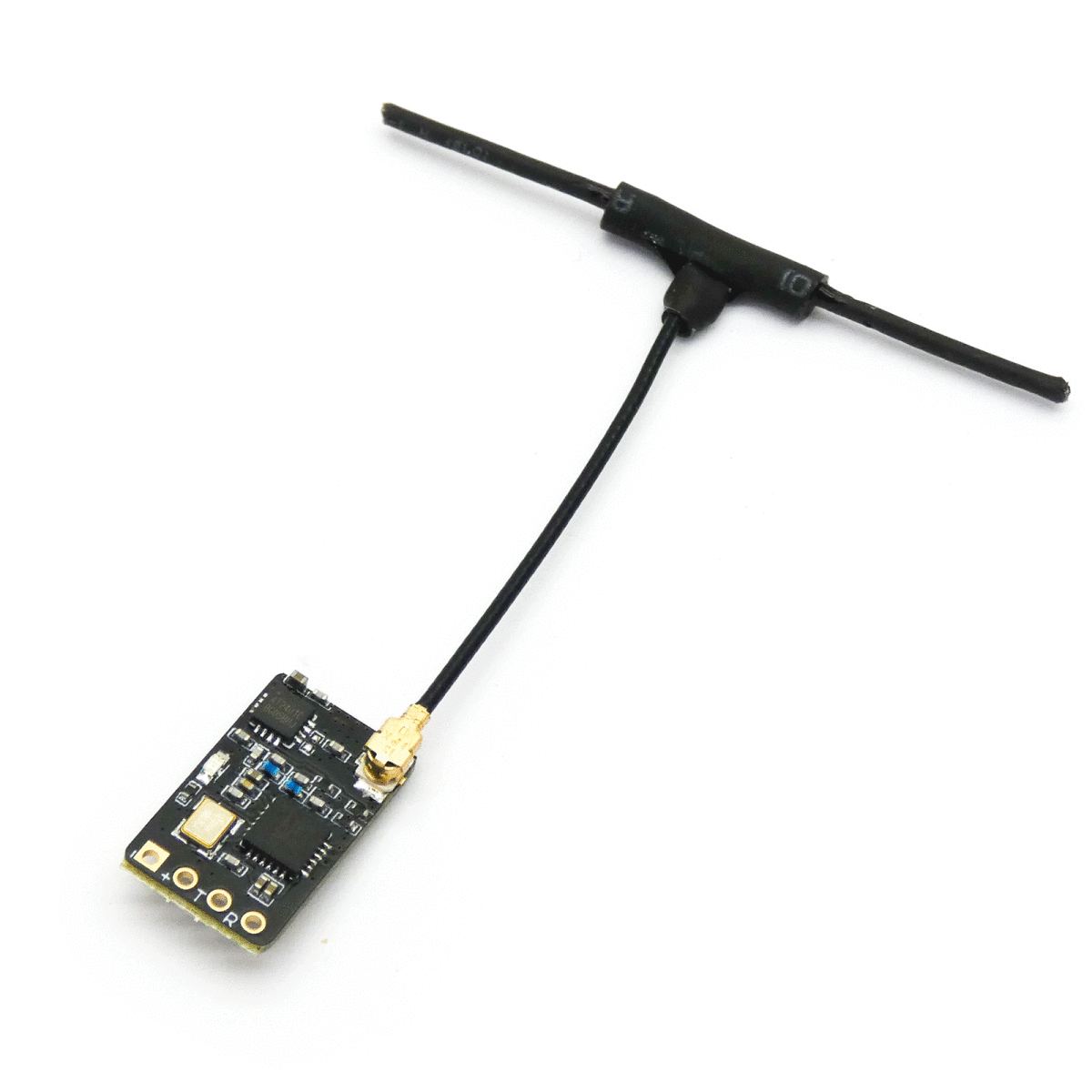

WREKD RX24T 2.4GHz ELRS Receiver

Specifications

• Model: RX24T 2.4Ghz Receiver
• Weight: 0.6g (excluding antenna)
• Dimensions: 11183 mm
• Type: 2.4G ISM
• MCU: ESP8285
• RF: SX1280IMLTRT
• Firmware Target: BETAFPV 2.4 GHz / BETAFPV 2.4GHz Nano RX (BETAFPV_2400_RX / BETAFPV_NANO_2400_RX)
• Frequency: 2400-2500 MHz
• Reception Rates: Ranging from 25Hz (min) to a speedy 1000mHz (max)
• Operating Voltage: 5V
• Peak Gain: 3.16dB
• Antenna: RX24T's signature half-wave dipole omnidirectional T-antenna
• Manufacturer: JHE

Notice: Please update the firmware to a newer version once you receive the unit.

Includes

• 1 x WREKD RX24T RC Receiver
• 1 x T-shaped antenna
• 4 x Connecting wires

Streamlined Setup with RX24T RC Receiver

Quick Connection Guide

• Step 1: Power up your flight controller with the USB after connecting the receiver. On the first USB connection, wait until the receiver's LED turns off, then unplug. Repeat twice. By your third connection, the LED will blink in double pulses, indicating the receiver is set for code matching.

• Step 2: Ensure the 2.4G ELRS tuner module is properly linked with your remote. Transfer the ELRS.LUA file to your remote's SD card under the directory SD Card/Scripts/tools. Execute the ELRS.LUA file to bind.

• Step 3: A successful bind is confirmed when the LED on the receiver remains continuously lit. Your telemetry signal will also be active.

LED Behavior Guide

• Double Pulse: Code matching mode
• Slow Blink: No transmission signal received
• Solid Glow: Transmission signal active
• Rapid Flash: WIFI upgrade mode
