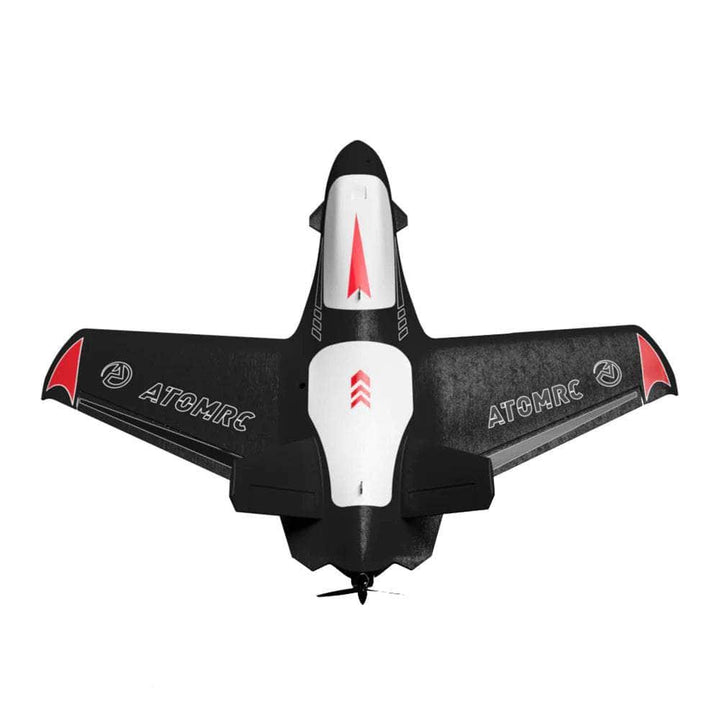

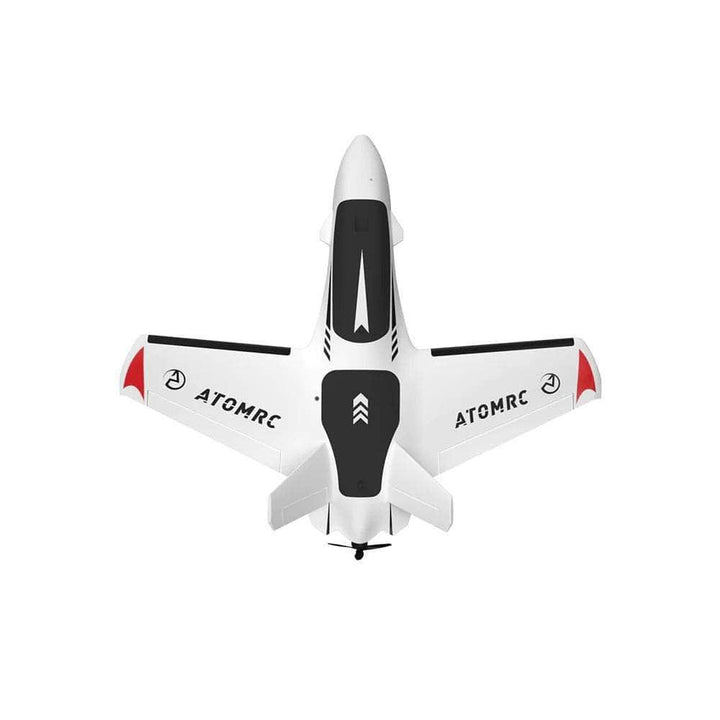

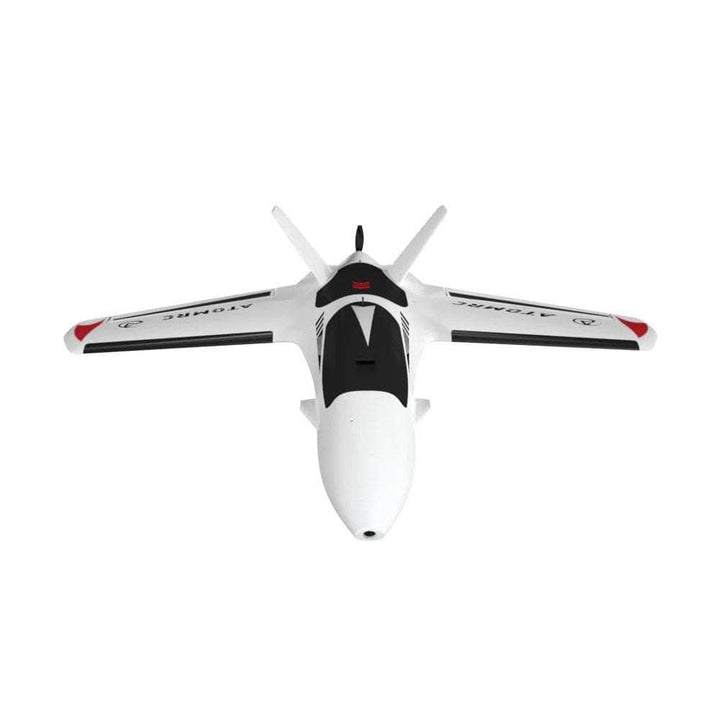

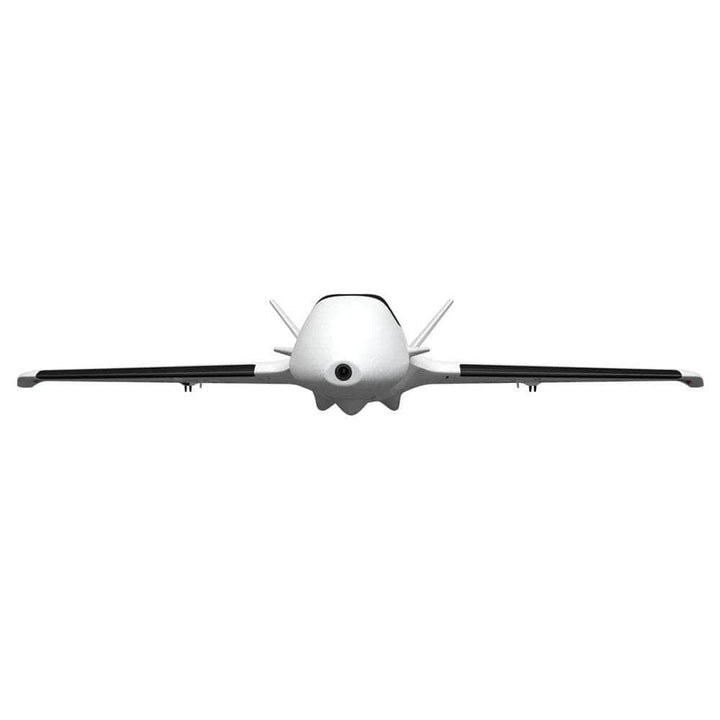

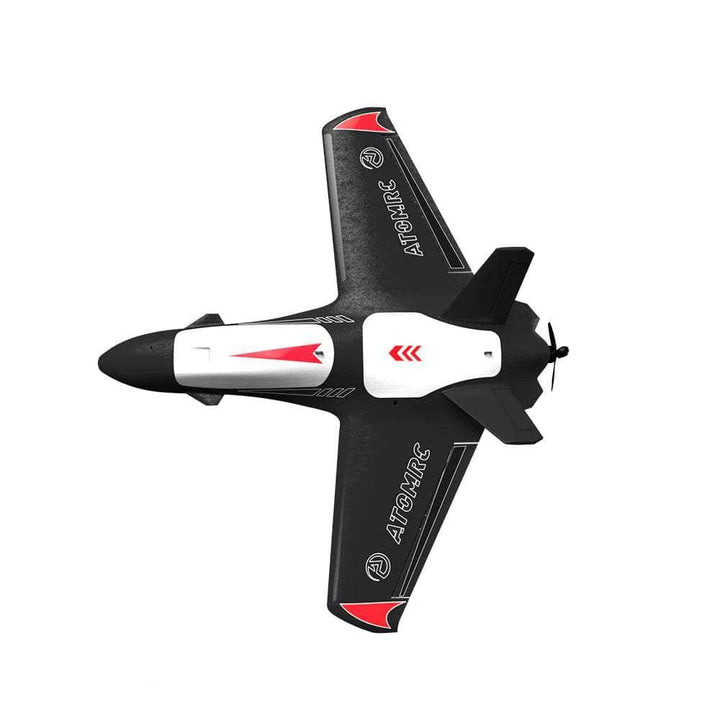

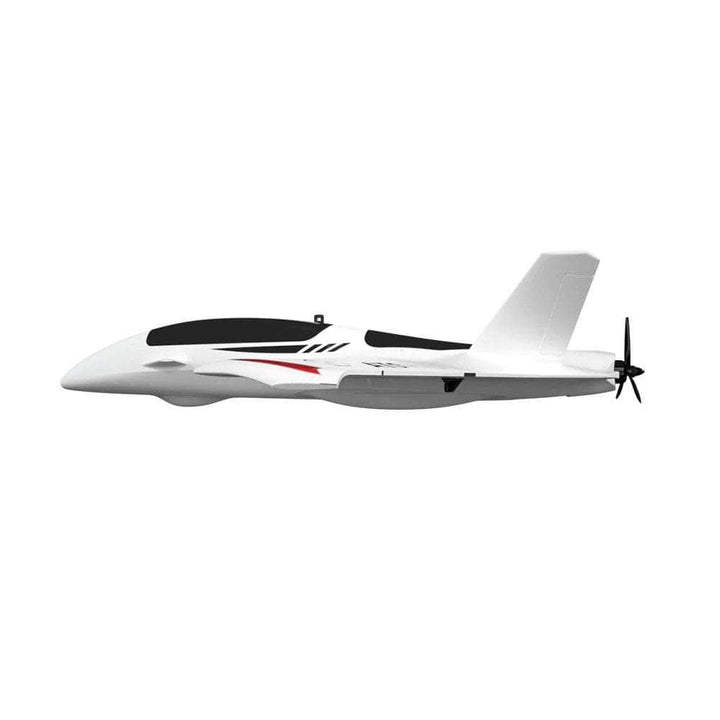

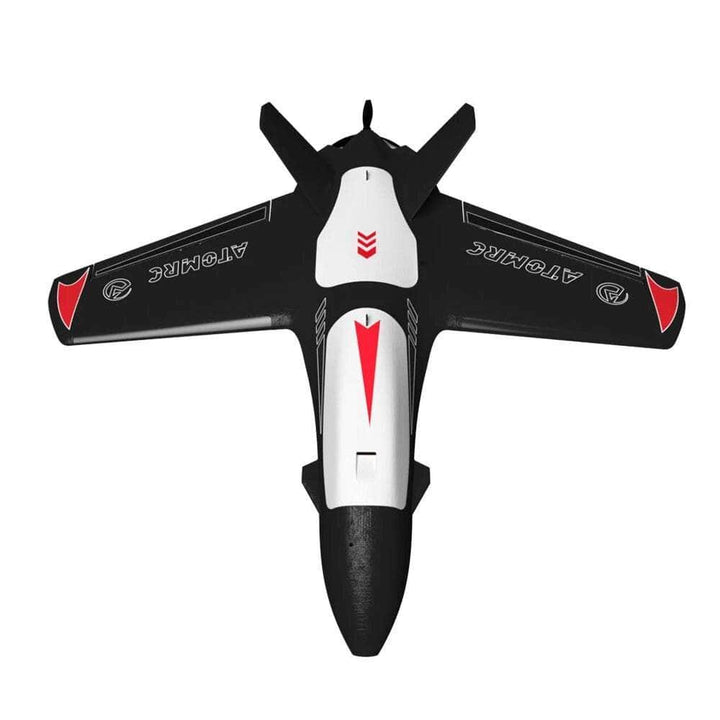

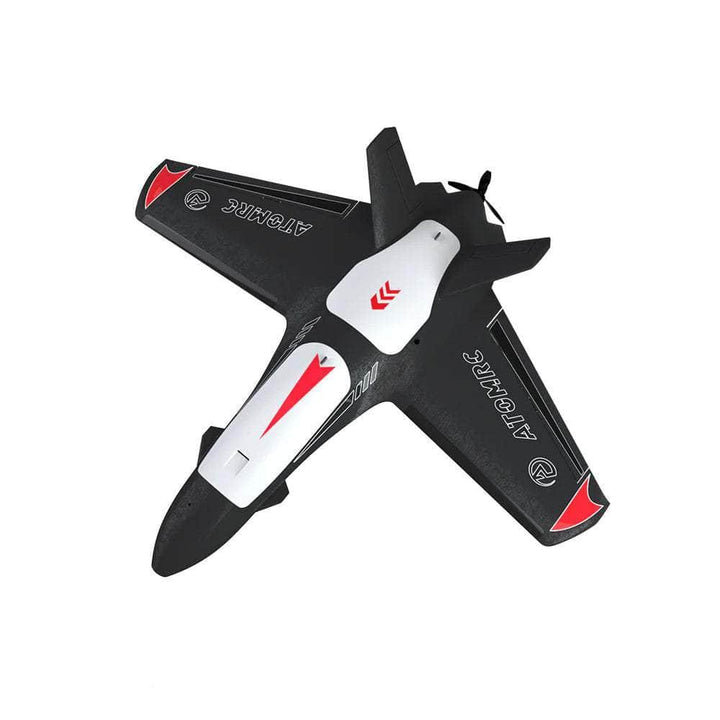

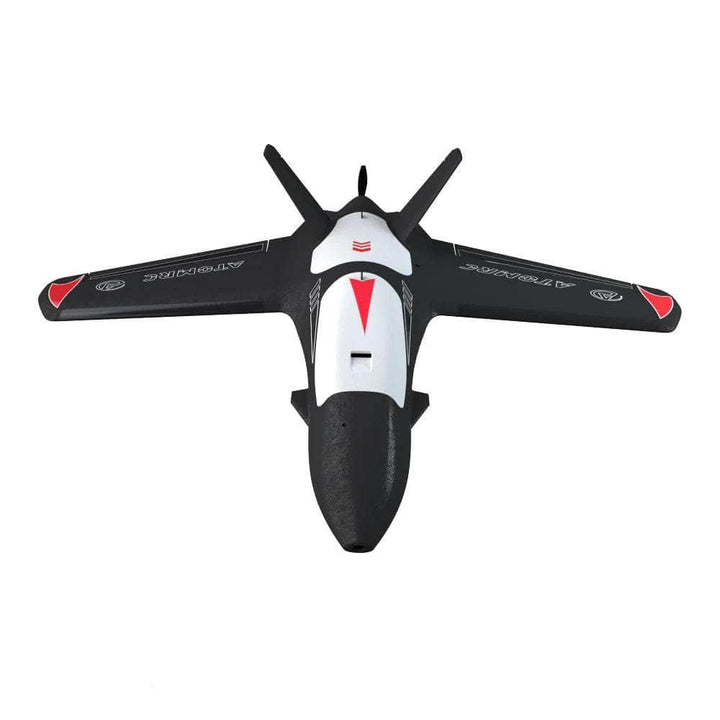

The AtomRC RTH Dolphin V1.1 is a 845mm wingspan V-tail plane. The Dolphin can fly stable at high and low speeds, and the large fuselage offers lots of space to install the electronics. The detachable wing made the wing easy to transport, V tail made the Wing more stable for cruising. This wing has a black body with white accents and stickers to further style your craft. This wing will come with an AtomRC F405 NAVI FC, allowing you to use the Return To Home(RTH) feature as the RTH version can come right back to you and land. It's good to know about the flight controller having the ability to use two firmware INAV or Arduplane, both firmware's already pre-turned for the plane. This wing comes as a pre-built kit, PNP, pre-tuned, and with all electronic are pre-installed. This wing is perfect for beginners and stress free for veterans.

Note: You are going to need; Radio, Receiver, Battery, and a Charger.  Although this system has Return To Home (RTH) included, you will need to add components like a camera and VTX for FPV.

Ardupilot parameter settings can be found here.

Browse the rest of our PNP wings, as well as our AtomRC selection!

Features

• EPP molded wing, embedded with carbon fiber tube, durable and light weight.

• Carbon fiber tube enhanced elevens, more rigid elevens during high speed fight.

• Detachable wing, portable to transport.

• Detachable head, two head for choice, use can choose fly with Gopro or without Gopro.
• Rubber band and magnet to lock the Gopro, easy to install the Gopro.

• V tail design make the wing more stable than normal fly wing.

• Pre installed wing and fuselage protector, more durable during landing.

• Compatible with GOPRO hero 5-7.

• Movable battery slot for better “CG” adjustment.

• Pre installed camera cable and antenna for FPV gear.

• Air inlet and outlet for FPV gear cooling.


Specifications

• Wingspan: 845mm
• Motor: AtomRC 2306 1700Kv (included)
• ESC: AtomRC BLS 30A 2-4S with 5V/3A BEC (included)

• Servo: AtomRC 9g Digital Servo 300mm 2pcs (included)
• FC: AtomRC F405 NAVI (included)
• GPS: BN220
• Prop: 7042-2
• Material: EPP
• Package Size: 675 x 174 x 285mm
• Length: 710mm

Recommendations

• Recommend Propeller: 5-7" (Comes with 2 Bi-Blade 7" Props)

• Recommend Battery: 4S 1300-2200mah (Not Included)

• Recommend Radio: more than 6CH (Not Included)

Includes

• 1x AtomRC RTH Dolphin V1.1 FPV Fixed Wing - Black/White
• 1x AtomRC BLS 30A 2-4S with 5V/3A BEC   (Installed)
• 2x AtomRC 9g Digital Servo 300mm   (Installed)
• 1x AtomRC 2306 1700Kv  (Installed)
• 1x AtomRC F405 NAVI (Installed)
• 1x Sticker Sheet
• 1x User Manual
• 1x Carbon Tube
• 2x 7042 Props
