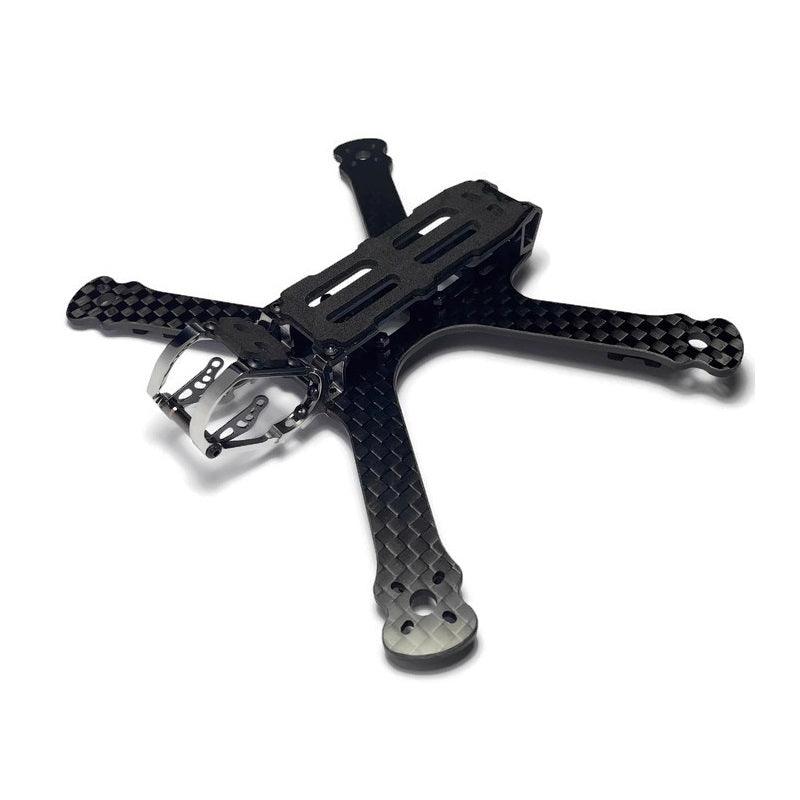

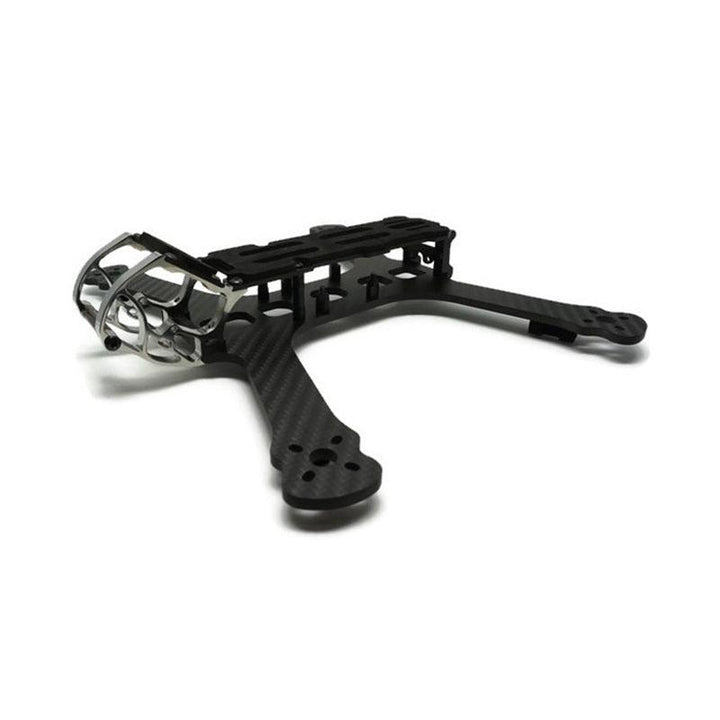

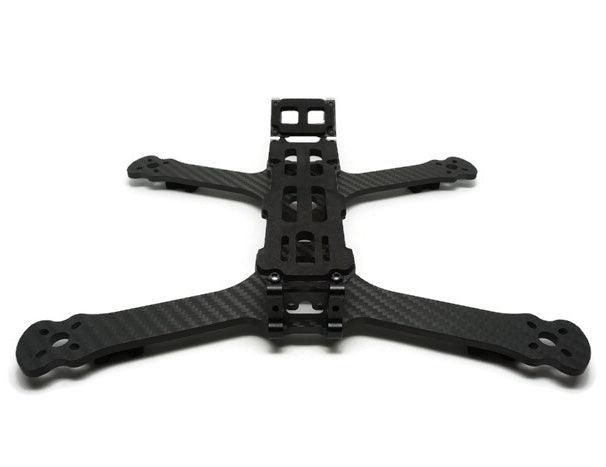

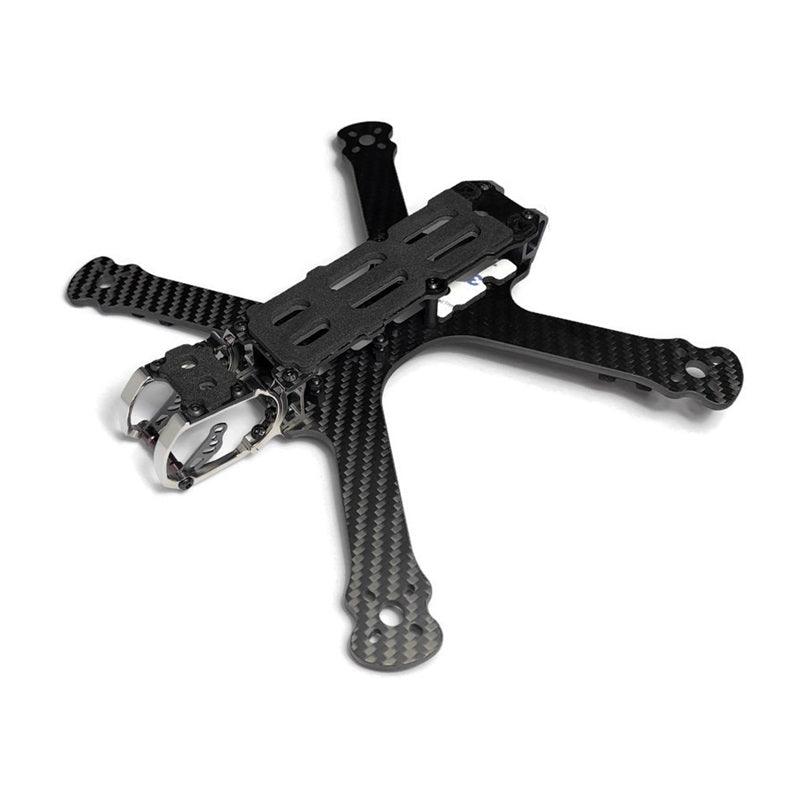

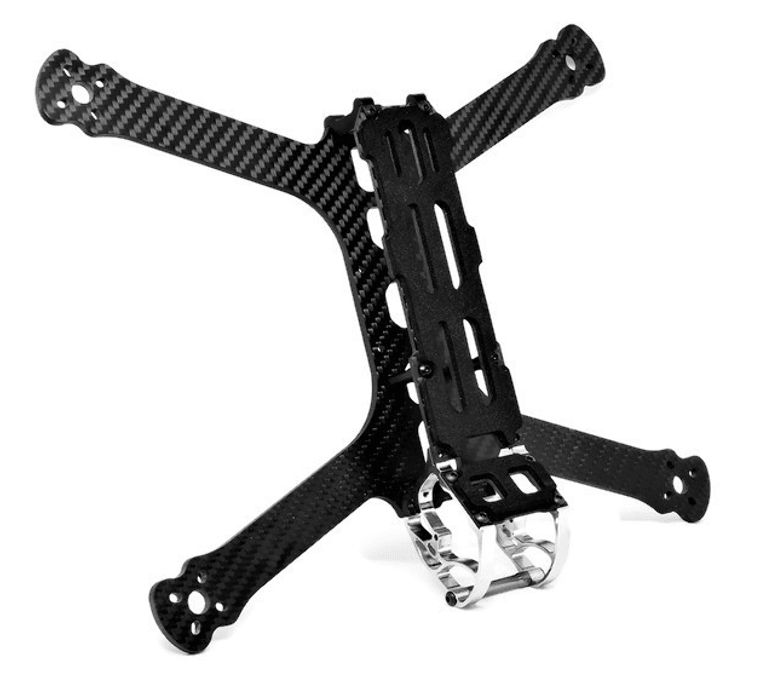

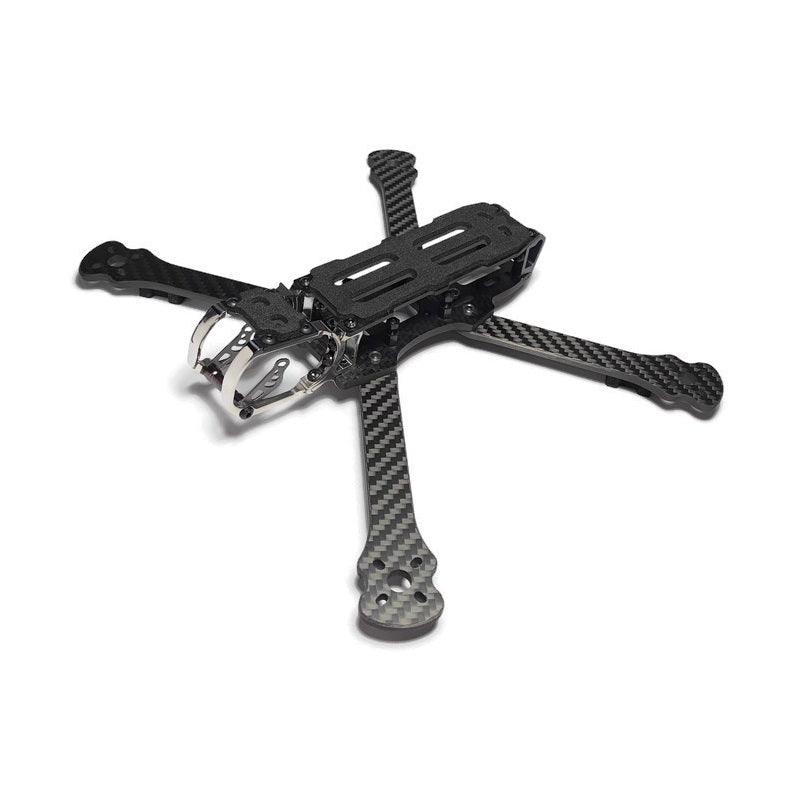

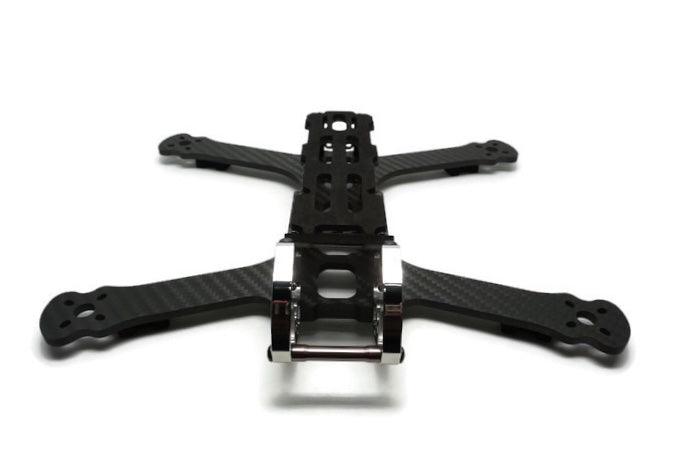

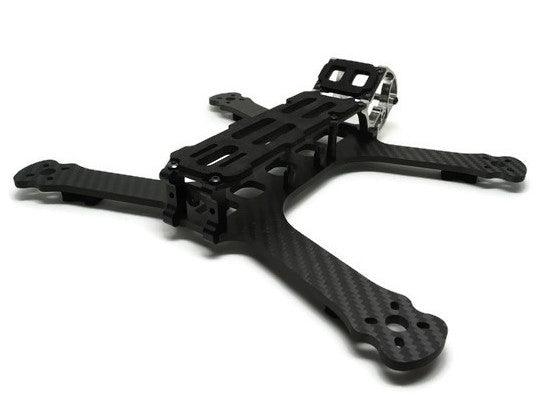

FIRSTLEGENDS at checkout.Chameleon Ti LR Frame Kit - Choose 6" or 7"
Chameleon 6 LR Specs |
|
| Frame Weight | 142g |
| Motor to Motor | 264mm |
| Frame Shape | Compressed X |
| Main Plate Thickness | 4mm |
|
Hardware |
Titanium Cage |
| Motor Mount Pattern | 22xx |
| Center Stack Mount | 30.5mm |
| FPV Camera Mount | 28.5mm (Swift v2, Arrow v3, etc) |
| FPV Camera Tilt | 25-60 degrees |
| Max Stack Height | 22mm |
| Warrantied Parts | All |
| Recommended Components | |
| Motor Size | 22xx / 23xx |
| Prop Size | 6" or 7" |
| LiPo | 4-6S/1800-2200mAh |
|
Armattan Ti Chameleon | Long range edition! - GregPhillipsEdits |
|

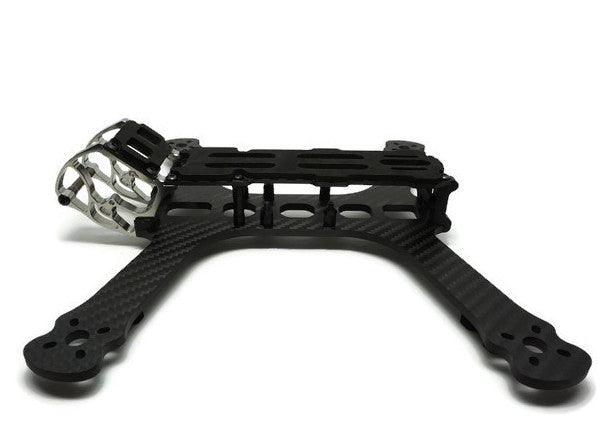

Chameleon Ti - Long Range
You love the ability to cruise far out, but you love the protection and quality offered by Armattan's latest Rooster and Chameleon TI frames. If you had to pick one feature, that would be a close call. But here at Armattan, we don't like being forced to choose between two offerings. We like to choose both.
Introducing the long range Chameleon TI. To be honest, almost everything you need to know is in the name of this frame. It has all the major features that you've come to look for in the Armattan brand, including the 22mm smashed deck, the new high quality Carbon, and the CNC'd titanium front-end. In addition, the 134mm compressed X bus is designed to hold more gear and support a bigger battery. This means that you get more time where it counts: with your head in the clouds.
Oh, and as Chris would say, "this frame was lovingly crafted by custom trained elephants equipped with metal files. While the training is difficult and takes 18 tons of peanuts per day, it provides a superior finish and unparalleled tolerances during assembly."
Did you just say warranty?
While Armattan can't cover you if you lose your frame, we still offer the same warranty as the rest of our FPV lineup. If you break your LR Chameleon, you can rest assured that Armattan will help you get back into the air in no time. We stand behind this frame and want you to know that it's built like a rock - even if it doesn't fly like one.
Included
Titanium:
2x Camera-cage braces
Aluminum:
1x 28.6mm front standoff (silver)
2x 22mm center standoffs
2x Rear standoffs (black)
Hardware:
5x 4mm button-head M3 bolts
10x 6mm button-head M3 bolts
8x 10mm button-head M3 bolts
3x 12mm button-head M3 12.9 grade steel bolts
5x 16mm button-head M3 bolts
6x 8mm M2 cup-head (camera) bolts
Nylon:
5x 6mm standoffs
5x nuts
Carbon Fiber:
1x 2mm Top extended (LiPo) plate
1x 1.5mm HD Cam plate
1x 2mm Rear VTX plates (Standard and TBS)
1x 4mm Extended main plate for 6 inch
1x 4mm Shim plate
Other:
1x Lipo strap
1x Extended LiPo foam pad
1x HD camera foam pad
4x Dog-bone landing pads
1x Molded rubber SMA grommet (included with standard VTX plate)
3x Molded rubber antenna tube mounts (included with standard VTX plate)
