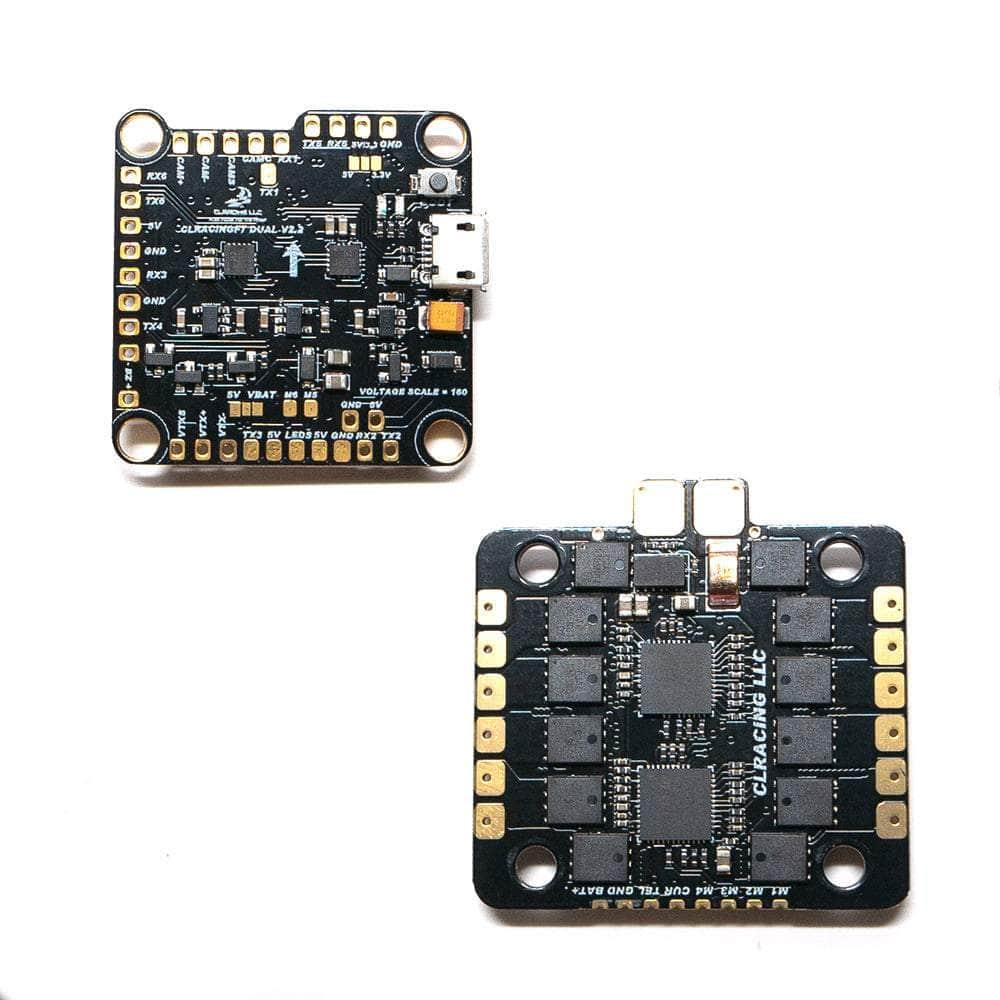

CLRacing F7 V2.2 45A 2-6S 30x30 Stack Combo (F7 FC / 32Bit 45A 4in1 ESC) - Dual ICM20602

COMING SOON
CLRacing F7 V2.2 45A 2-6S 30x30 Stack Combo (F7 FC / 32Bit 45A 4in1 ESC) - Dual ICM20602 at WREKD Co.
CLRacing F7 V2.2 45A 2-6S 30x30 Stack Combo (F7 FC / 32Bit 45A 4in1 ESC) - Dual ICM20602 at WREKD Co.
CLRacing F7 V2.2 45A 2-6S 30x30 Stack Combo (F7 FC / 32Bit 45A 4in1 ESC) - Dual ICM20602 at WREKD Co.
CLRacing F7 V2.2 45A 2-6S 30x30 Stack Combo (F7 FC / 32Bit 45A 4in1 ESC) - Dual ICM20602 at WREKD Co.
SAVE 5% OFF YOUR FIRST ORDER
Use discount code FIRSTLEGENDS at checkout.

EXCLUSIVE DISCOUNTS AVAILABLE
Military, First Responders & Students
Learn More

CLRacing F7 V2.2 45A 2-6S 30x30 Stack Combo (F7 FC / 32Bit 45A 4in1 ESC) - Dual ICM20602

COMING SOON
/
  • Available
Gyro Version
NOTE: This item is on backorder, which means it will be delivered as soon as we receive our next shipment from our supplier. This typically ranges from 1 to 3 weeks.

Earn 492 CaveCoin by purchasing this item.

or Sign Up to start earning on your next order.

About this item

CLRacing is well trusted in the industry and the CLRacing F7 V2.2 45A 2-6S 30x30 Stack/Combo  will show you exactly why. Durable, feature rich, and easy to solder to. Check out the specs below!

This F7 FC and 45A 4in1 ESC are available separately as well!

Choose either dual or single gyro version.

Check out all our 30x30 Stacks and Combos and our full range of CLRacing products!

    Specifications

    FC

    • Input Voltage: 2-8S
    • MCU: STM32F722RET6216MHz

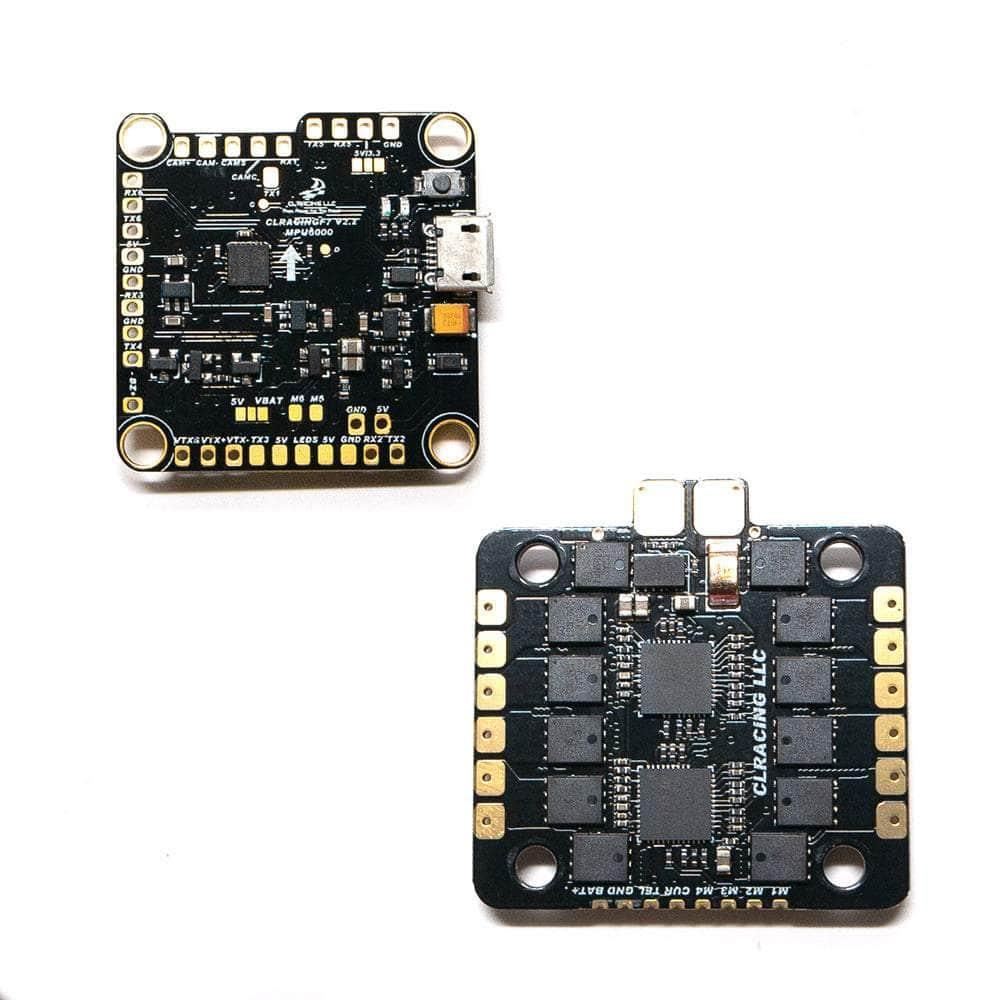

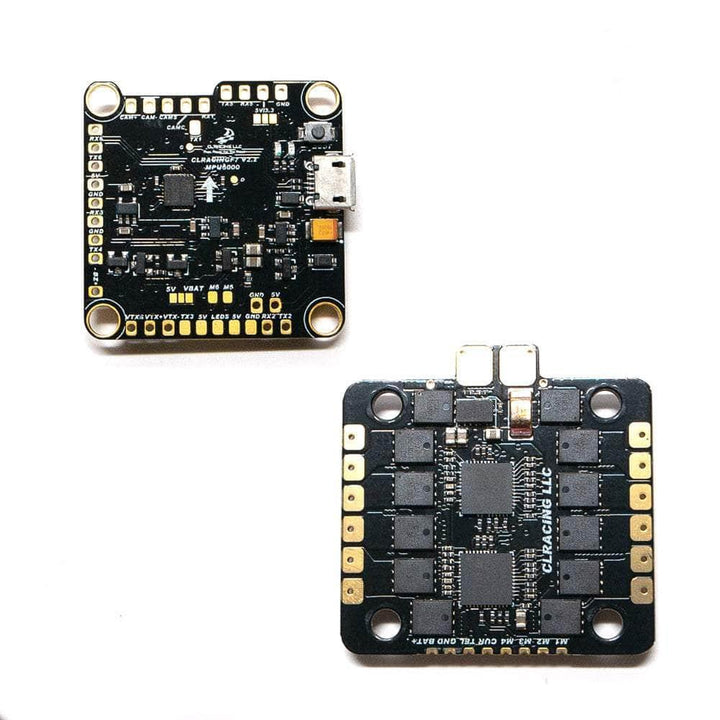

    • IMU: Choose Dual ICM20602 or Single MPU6000
    • OSD: Yes
    • BlackBox: 32MB
    • UARTS: 6
    • ESC Connections: 6
    • Reverse Polarity Protection: Yes
    • Camera Control: Yes
    • BEC: 5V/1.5A, 3.3V/250mA
    • Buzzer Pads: Yes
    • LED Pads: Yes
    • Mounting Dimensions: 30x30

    ESC

    • Input Voltage: 2-6S
    • Max. Continuous Current: 45A
    • Max. Burst Current: 55A
    • Firmware: BLHeli_32
    • Support: Dshot300-1200/MultiShot/OneShot/ProShot/PMW
    • Current Sensor: Yes
    • Current Sensor Scale: 250
    • Dimensions 43.5mm x 46.5mm
    • Mounting Dimesions: 30.5x30.5mm Φ4mm
    • Weight: 13.5g

    Includes

    • 1x CLRacing F7 V2.2 30x30 Flight Controller
    • 1x CLRacing 45A V2 32bit 30x30 4in1 ESC
    • 1x Wiring & Accessory Kit
