HappyModel EPW6 2.4GHz ELRS PWM Receiver

COMING SOON

Regular price $13.49
/
NOTE: This item is on pre-order, which means it will ship very soon. This typically ranges from 3 to 7 days.

HappyModel EPW6 2.4GHz ELRS PWM Receiver

$13.49

Earn 13 CaveCoin by purchasing this item.

or Sign Up to start earning on your next order.

About this item

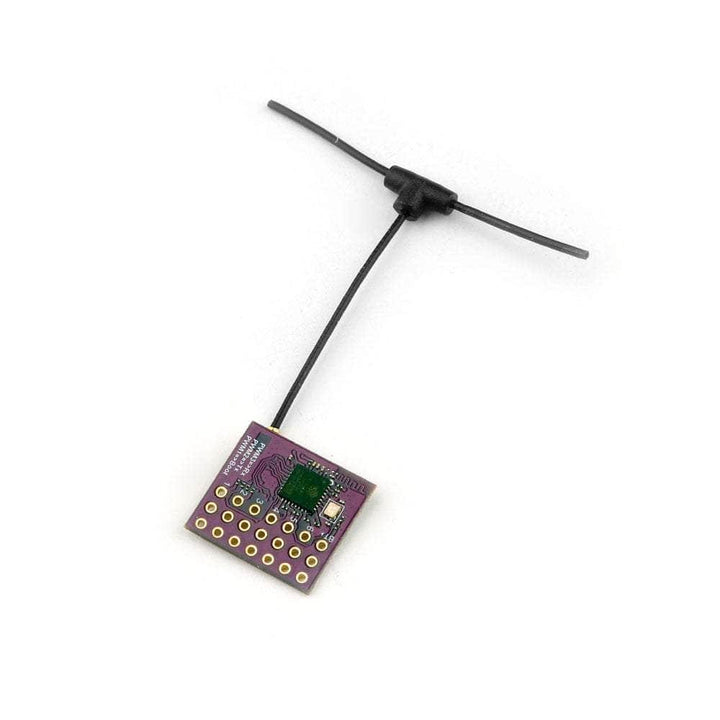

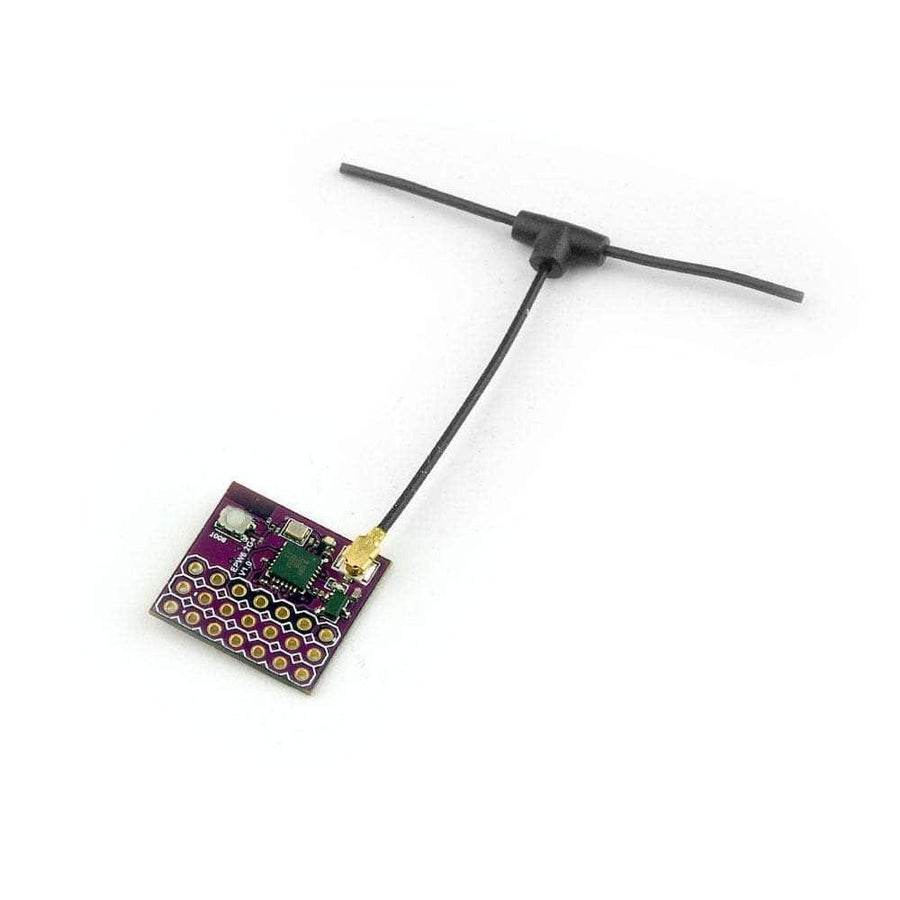

Another Express LRS receiver but this time, it's PWM capable! The Happymodel ExpressLRS PWM Kit includes a 6CH EPW6 2.4GHz Receiver with two antennas. Perfect for your Fixed Wing airplane!

Check out our other great receivers, and the rest of our Happymodel offerings.

Specifications

  • Item: Happymodel EPW6 TCXO 2.4GHz PWM receiver
  • ESP8285, SX1280/1281
  • Antenna connector: IPEX MHF 1/U.FL

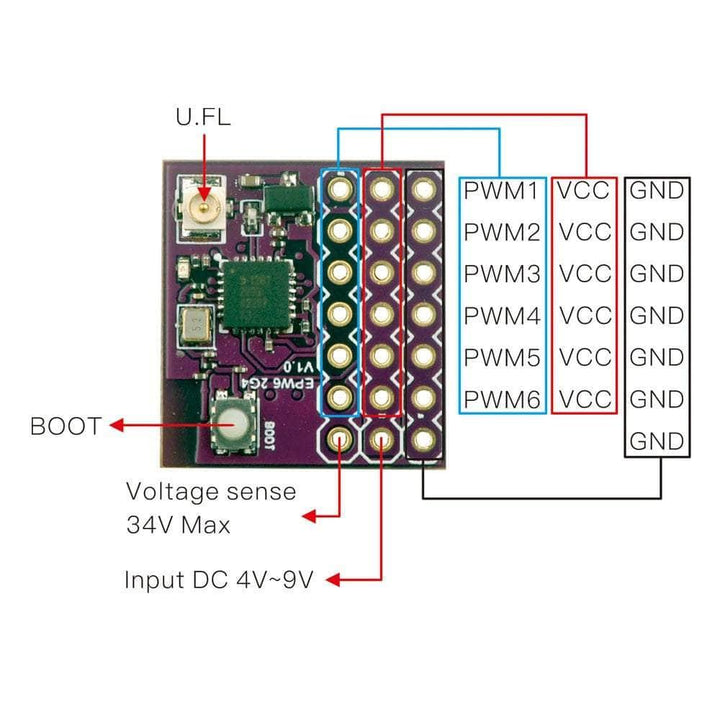

  • 6x PWM outputs
  • RF Frequency: 2.4GHz (2400~2480MHz)
  • Telemetry power: 12dbm
  • Receiver protocol: PWM or CRSF
  • Input voltage: +5v~8.4v
  • PCB size: 19mm x 17.5mm

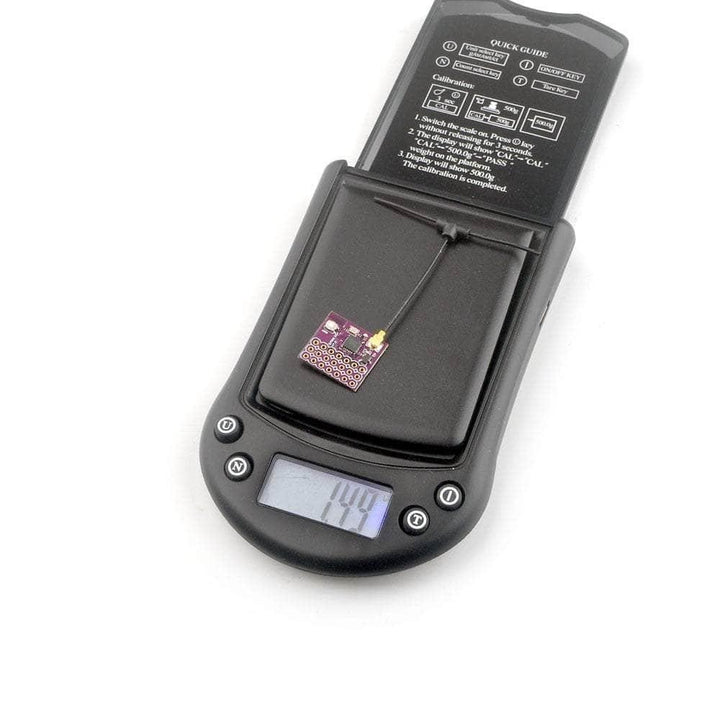

  • Weight: 1.49g / antenna

Firmware

  • Target option 1: Generic ESP8285 6xPWM 2.4Ghz RX
  • PWM receiver via 1~6 PWM outputs
  • Target option 2: HappyModel_EP_2400_RX
  • CRSF Serial receiver via TX and RX
  • Firmware update via WIFI

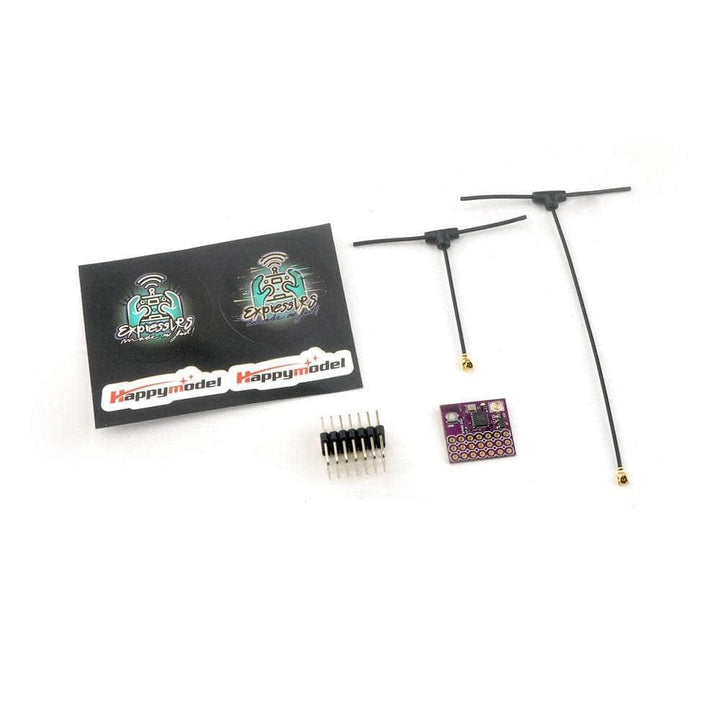

Includes

  • 1x HappyModel EPW5 2.4GHz ELRS PWM Receiver
  • 2 x 2.4GHz antenna

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Jeff G
HappyModel EPW6 is my go to receiver for fixed wing.

I have now purchased a full dozen of these very compact yet capable receivers. All have worked flawlessly and provide a robust and reliable two way link. All of my flying with the EPW6 has been LOS to this point, but I expect that longer range will not be an issue due to the nature of the ELRS protocol. There are plenty of setup options available via wifi, and all channels can be remapped. Failsafe , servo reversing, and rx battery monitoring (telemetry) are easy to set up, and work perfectly. I can easily give this and all HappyModel receivers (I have used many of the non-pwm versions in quads) a 5 star rating!
Oh, and as always, WREKD gets my stuff to me super fast!! :)
