HDZero Race V3 HD Video Transmitter

SKU: 120918-D-1
/
  • In stock, ready to ship
WREKD Co. is an authorized dealer of Divimath HDZero Products.

Ships same-day if ordered before 3pm EST M-F. Free shipping on most orders over $99. 30 Day Return Policy.

Order and start earning CaveCoin today!

Earn 345 CaveCoin by signing up for our rewards program.

Introducing the HDZero Race V3 VTX: a state-of-the-art digital video transmitter designed specifically for FPV racing. With its third-generation technology, this VTX delivers exceptional performance and a range of impressive features.

Key Features

  • Wide Voltage Range: The HDZero Race V3 VTX can be powered by the 5V 1.5A regulator found on most FC's or by up to 12V for FC's equipped with an HD VTX plug.
  • Compact and Lightweight: With dimensions of 28x32x5mm and weighing only 5.5 grams, this VTX is designed to be small and light, optimizing durability and minimizing weight.
  • Easy Installation: No soldering required! Simply plug the wire harness into a compatible HD-ready FC for hassle-free setup.
  • Secure Antenna Attachment: The antenna is firmly secured with a metal bar and screws, ensuring a stable connection during intense racing sessions.

Enhanced Durability

  • Robust Construction: The HDZero Race V3 VTX features a 1.6mm thick PCB, offering superior durability compared to the standard 1.0mm PCB found in the Whoop lite VTX.
  • Improved Component Stability: Large package size components are utilized for increased stability, and a protective glue coating is applied to smaller components, providing crash protection.
  • Reverse Polarity Protection: The Race V3 VTX includes a reverse polarity protection circuit, an essential feature absent in the Whoop lite VTX.

Impressive Video Quality

  • High-Definition Video: Enjoy exceptional video quality with resolution options of 540p90, 720p60, and 1080p30.
  • Adjustable Power Levels: Switch between 25mW and 200mW power settings to suit your needs.
  • Wide Frequency Range: The VTX operates on the 5.8GHz frequency band, specifically between 5.725GHz and 5.850GHz.

Specifications

  • Model: HDZero Race V3
  • SKU: HDZ3143
  • Frequency: 5.725-5.850GHz
  • Resolution Default: 540p90/720p60/1080p30
  • RF Power: 25mW/200mW
  • RF Connector: Secured U.FL
  • Interface: 4 lane MIPI CSI YUV422
  • Video Connector: 20 Position 0.30mm Pitch
  • Size: 32mm x 28mm x 5mm
  • Weight: 5.5g
  • Harness Length: 40mm
  • Power Input: 4V-12V
  • Mounting: 20mm x 20mm M4 with rubber grommets

Includes

  • 1 x VTX-R3 board with pre-soldered harness * 1
  • 4 x Rubber Grommet (M4 to M3)
  • 4 x u.FL Antenna Retention Screws
  • 1 x Metal bar to hold down antenna.

Experience FPV racing like never before with the HDZero Race V3 VTX. Its exceptional performance, durable construction, and high-quality video capabilities make it the perfect choice for competitive racers. Upgrade your setup today and take your racing skills to new heights.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Customer Reviews

Based on 3 reviews
33%
(1)
0%
(0)
33%
(1)
0%
(0)
33%
(1)
C
Colin Rountree

HDZero Race V3 HD Video Transmitter

C
Chris Chisenhall
Have not even got video yet

Some reason I didn't get a flash cable at first.
After purchasing a whoop bundle just to get a cable got the vrx and vrx flashed to the same firmware. Set up in betaflight and cannot get a connect on it installed the Whoop board after giving up and got video on the Whoop nano cam and the 90fps cam.
Wires are very fragile at the board as well they break off very easy.

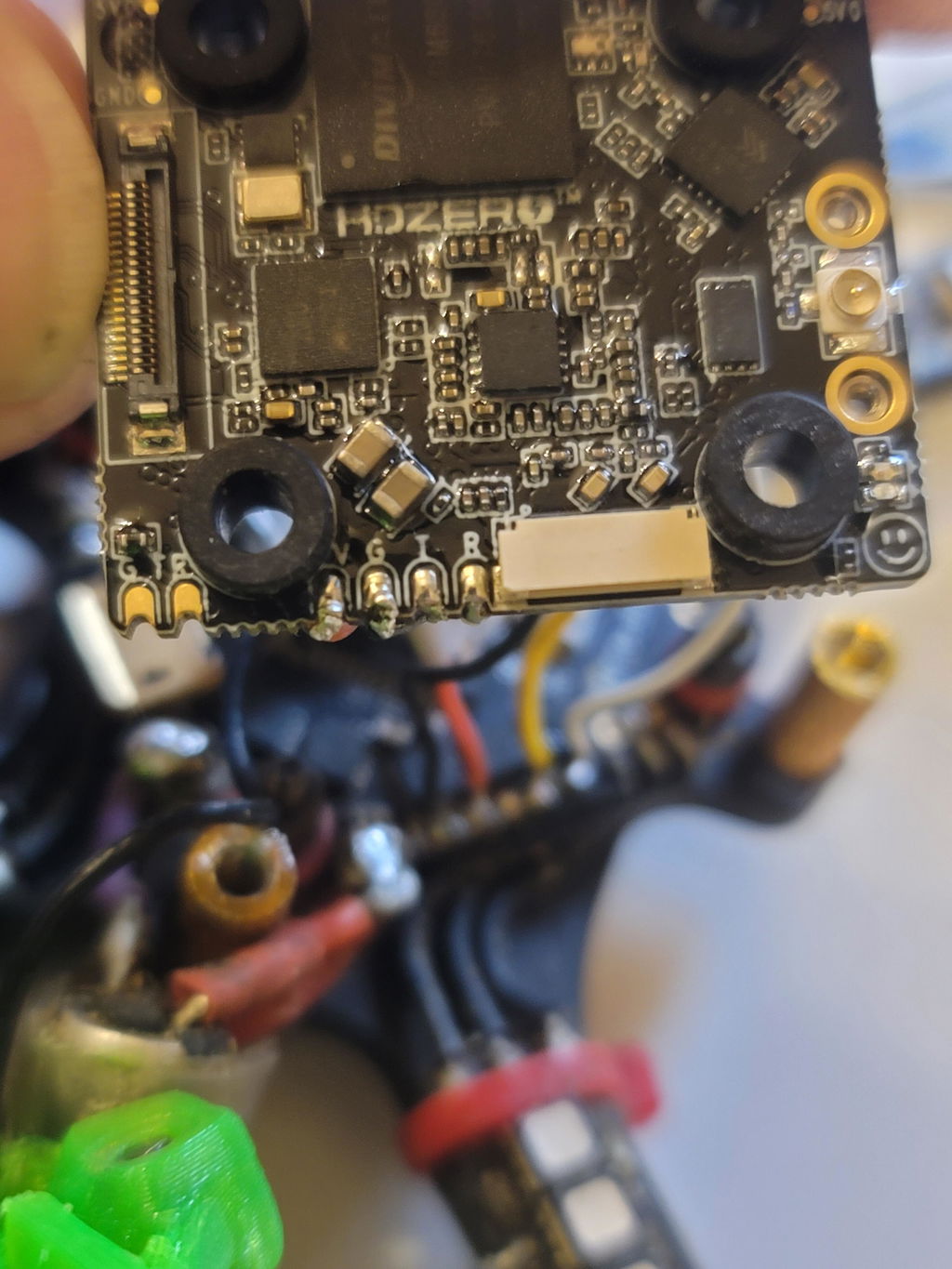

User picture
C
Chris Hartman
Slimmer Profile and Easier Pad Locations

Solid improvement over the Race v2 vTX and no issues so far!

FPV Regulatory Notice

Listen, my guy! So, like, the rules and stuff about using radio waves can be pretty gnarly depending on where you are in the world. Just keep in mind that in some places, it might not be cool (or legal) to use this product, ya know? But if you're kickin' it in the USA, and rippin' quads with the bros, you gotta have a HAM amateur radio license to operate this thing, at the very least. It's totally up to you to make sure you're using it in a chill and legal way, or just not using it at all if that's the vibe. By adding it to your cart, you're like, totally agreeing that you've read this chill notice, and that WREKD isn't responsible for anything that goes down while you're using it.
So, let's just all be cool and have good vibes, bro... yuuh!
