HGLRC SPECTER 1804 2450Kv Micro Motor

COMING SOON

Regular price $15.99
/
  • Available
NOTE: This item is on backorder, which means it will be delivered as soon as we receive our next shipment from our supplier. This typically ranges from 1 to 3 weeks.

Earn 60 CaveCoin by purchasing this item.

or Sign Up to start earning on your next order.

About this item

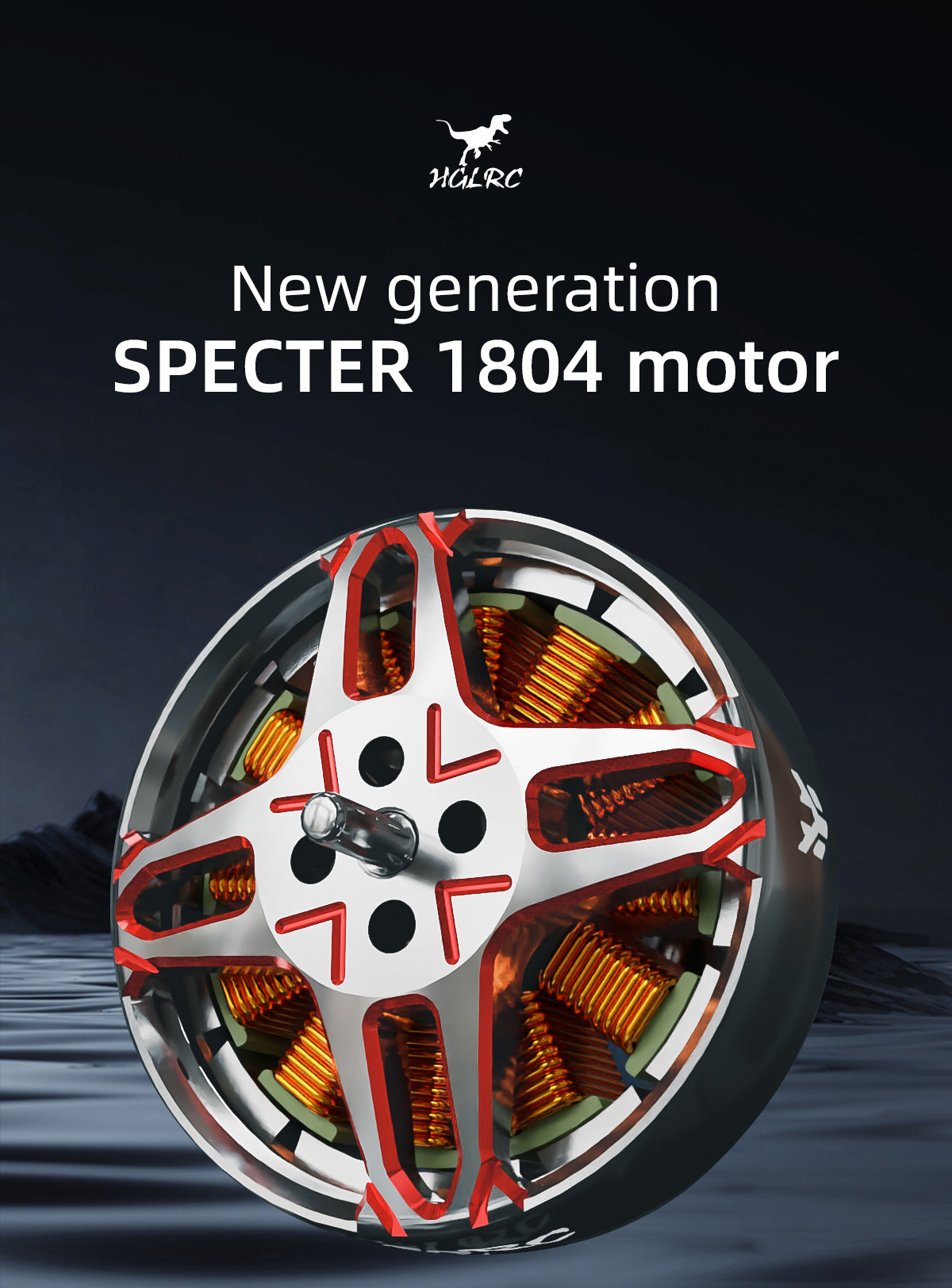

The SPECTER 1804 motor has high performance & efficiency. It is made of 7075 high-strength material and uses anodized two-color process. N52H arc-shaped with ultra-high magnetic properties and high temp resistance. Copper wire windings are 260° super high temp-resistant.  Tuning optimized for fast & accurate power output. It's perfect for 3-3.5inch Freestyle & Racing quads!

Check out our vast brushless motors selection, and all our HGLRC products!

Features

  • Brand new rotor appearance design, anodized two-color process
  • 7075 aviation aluminum material, high-strength one-piece rotor
  • Customized N52H curved magnetic steel, strong magnetism, large torque

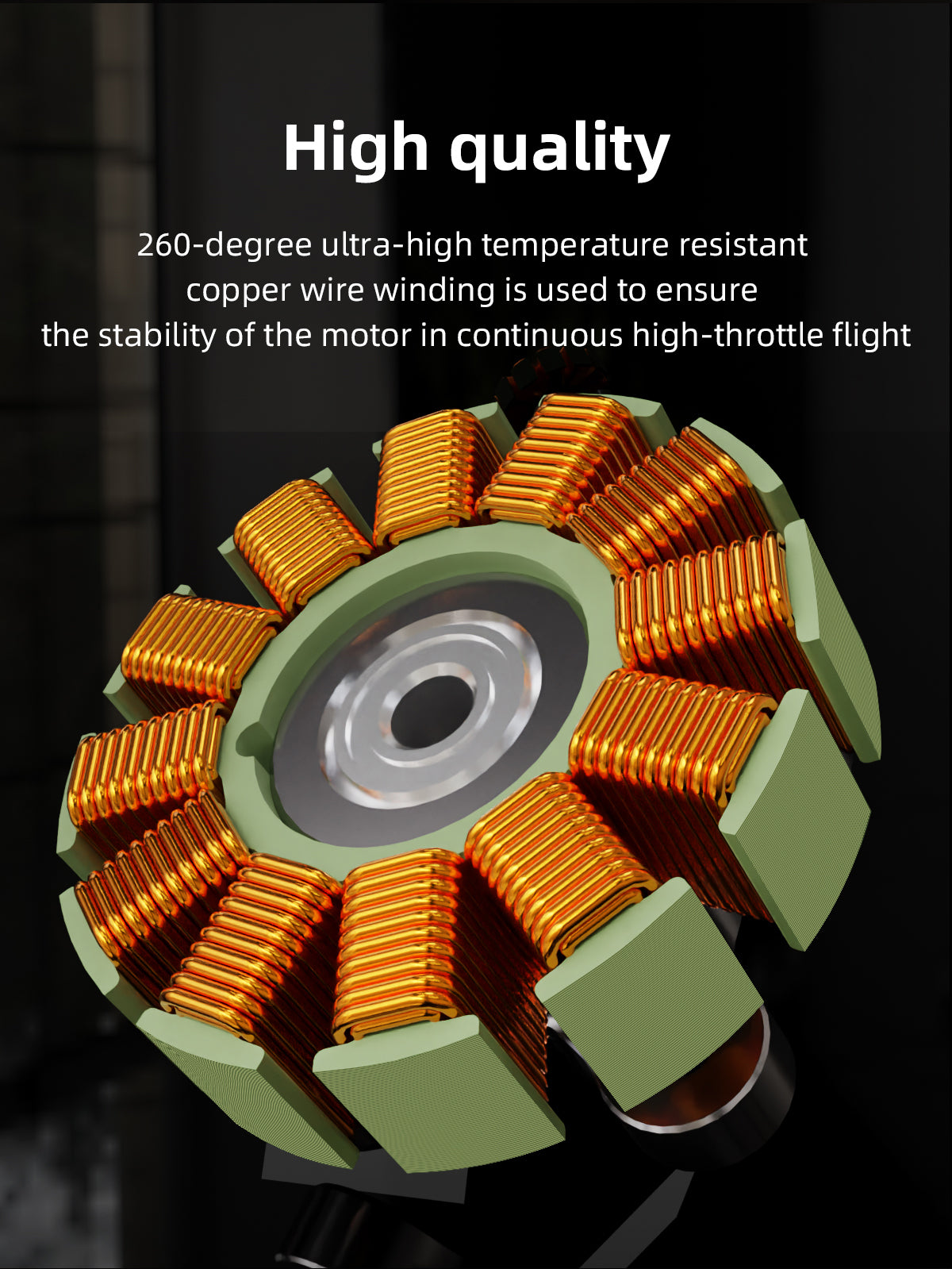

  • Super high temperature resistant 260° copper wire winding, the motor runs more stably
  • Imported Kawasaki silicon steel sheets, low loss stator, reduce heat generation and improve efficiency

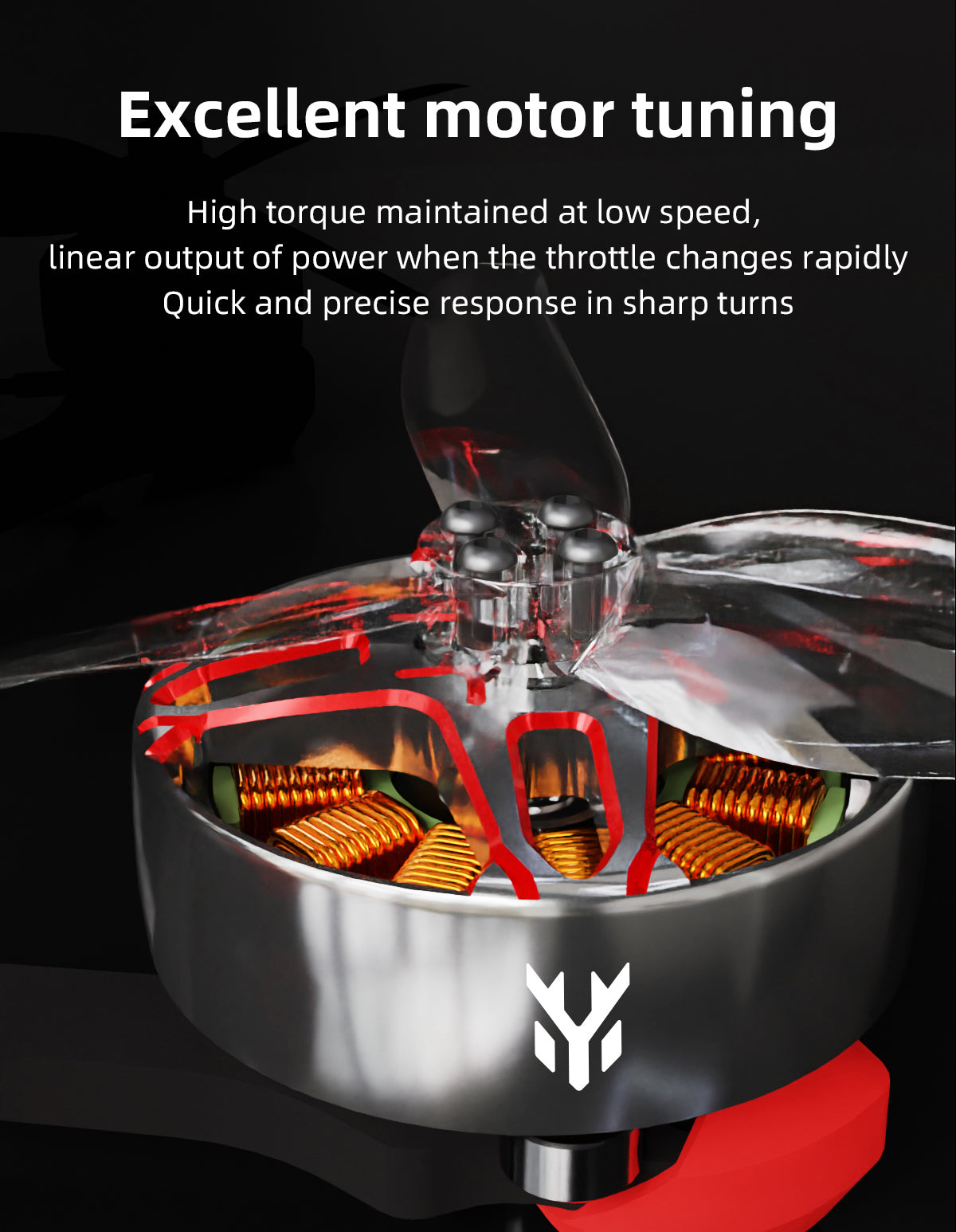

  • New optimized adjustment and calibration, maintain high torque at low speed, linear
  • power output when the throttle changes rapidly, precise and quick response when turning
  • Titanium alloy shaft, high strength and reduce the weight of the drone
  • Applicable to 3-3.5inch freestyle drones and 3-3.5inch racing drones



Specifications

  • Motor model: 1804
  • KV value: 2450KV
  • Magnetic pole: 12N14P
  • Magnetic steel: N52H
  • Stator: Kawasaki 1200
  • Rotor: 7075
  • Bearing: ISC
  • Winding: 260° high temperature resistant copper wire
  • Output shaft: M1.5x3.8mm
  • Max current: 18A
  • Max power: 432W
  • Suitable propeller: 3-3.5 inch
  • voltage: 4-6S
  • Outlet specification: 26AWG-150mm
  • Motor size: Φ22.68x13.2mm
  • Mounting hole: 12x12(M2)
  • Weight: 13.3g (including wire)

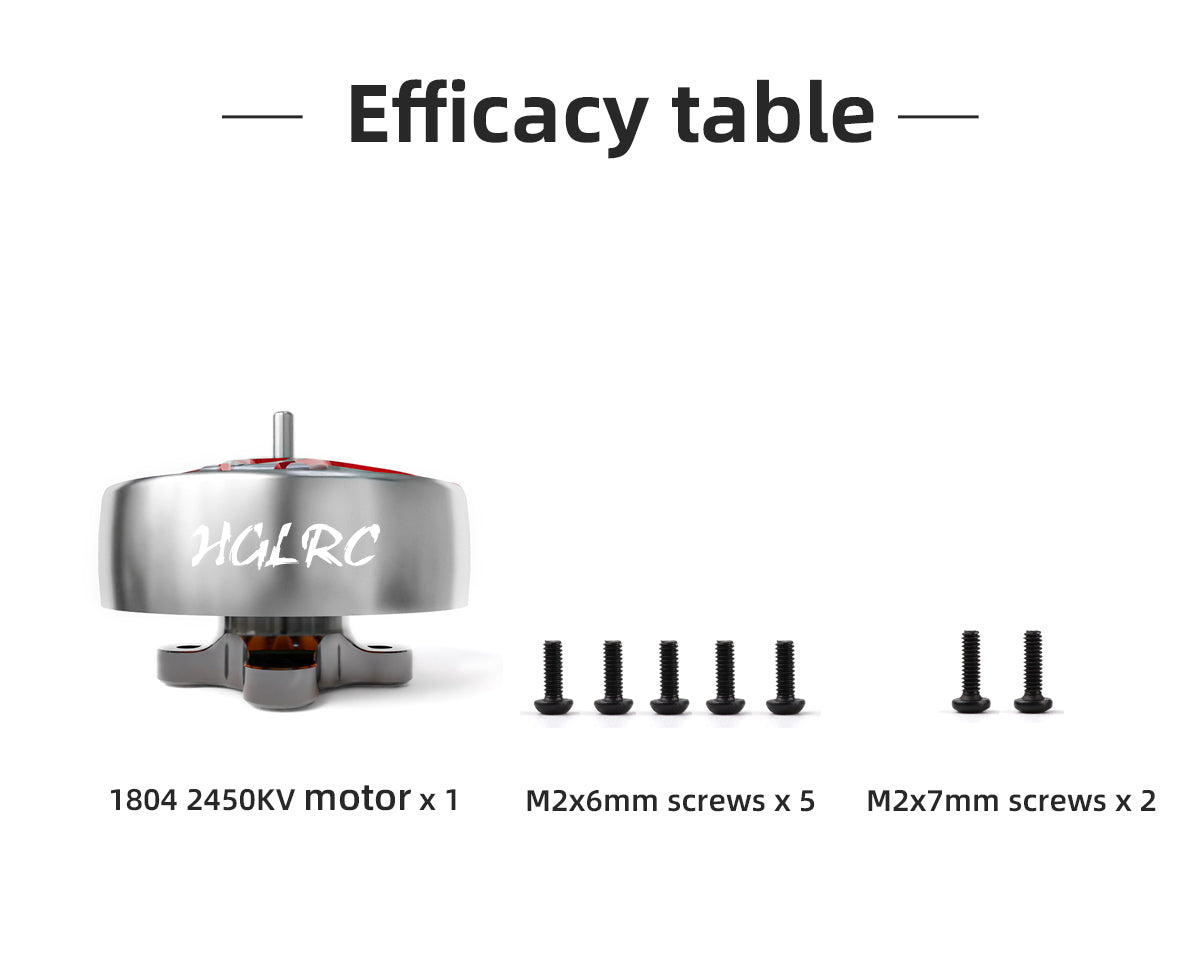

Includes

  • 1x HGLRC SPECTER 1804 2450Kv Micro Motor
  • 5x M2x6mm round head screw
  • 2x M2x7mm round head screw
