iFlight AOS 7 EVO (v1.2) 7" Frame Kit

COMING SOON

Regular price $93.99
/
NOTE: This item is on pre-order, which means it will ship very soon. This typically ranges from 3 to 7 days.

iFlight AOS 7 EVO (v1.2) 7" Frame Kit

$93.99

Earn 93 CaveCoin by purchasing this item.

or Sign Up to start earning on your next order.

About this item

The iFlight AOS 7 EVO 7" Frame Kit is perfect for freestyle drone racing. Constructed with 8mm arm thickness for superior durability and reliability, the kit features 25.5x25.5 or 20x20mm stack mountings in the front, center, and rear. It fits the DJI O3 Air Unit, Caddx Vista, or HDZero Freestyle VTX and both 20mm (DJI and O3 camera) and 19mm (micro-sized) cameras. Standoffs, frame, and screws are included.

The AOS 7 builds on the scientific approach used to design the AOS 5 and AOS 5.5, extending the benefits of those designs to the 7" class. Until now, 7" quads have been primarily used for long-range cruising and have never been able to match the performance of 5" quads for aggressive freestyle flying. The AOS 7 EVO 7" frame kit is here to break that conception.

The latest version of this frame is the AOS 7 EVO. It has an updated camera, top and bottom plates to support the DJI O3 Air Unit, and all other 19-20mm FPV cameras.

With the V1.2 updated side plates and silicone dampers.  Frame kit upgrade to the top plate with two antenna cutouts. Making this frame more ideal and suited for the DJI O3 Air Unit.

Check out all of our 7" frames and our selection of iFlight gear!

Make sure to check out our other O3 compatible frames!

Features

  • 25.5x25.5 or 20x20mm stack mountings in the front, center and rear.
  • Fits the DJI O3 Air Unit, Caddx Vista or HDZero Freestyle VTX perfectly
  • Fits both 20mm (DJI and O3 camera) and 19mm (Micro sized) cameras
  • Standoffs, frame and screws included

Specifications

  • Product Name: AOS 7 EVO V1.2 Frame Kit
  • Frame wheelbase: 293mm
  • Frame Dimension: L228xW284xH34.5 mm
  • Arm Thickness: 8mm
  • Top Plate Thickness: 2mm
  • Bottom Plate Thickness: 2mm
  • Upper Plate Thickness: 2.5mm
  • Motor Mounting: 19x19mm
  • VTX Mounting: 20x20/Φ2mm / 25.5x25.5/Φ2mm
  • Weight: 290±5 grams (Included TPU Parts)

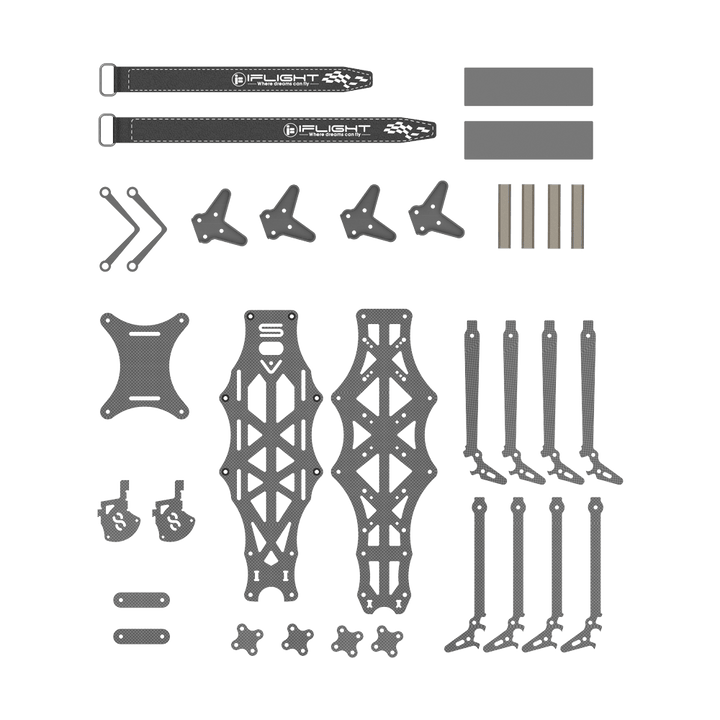

Includes

  • 1x iFlight AOS 7 EVO 7" V1.2 Frame Kit
  • 1x TPU Parts
  • 4x Motor Wire Shield Tube
  • 1x Screw Bag
  • 2x Battery Strap
