About this item

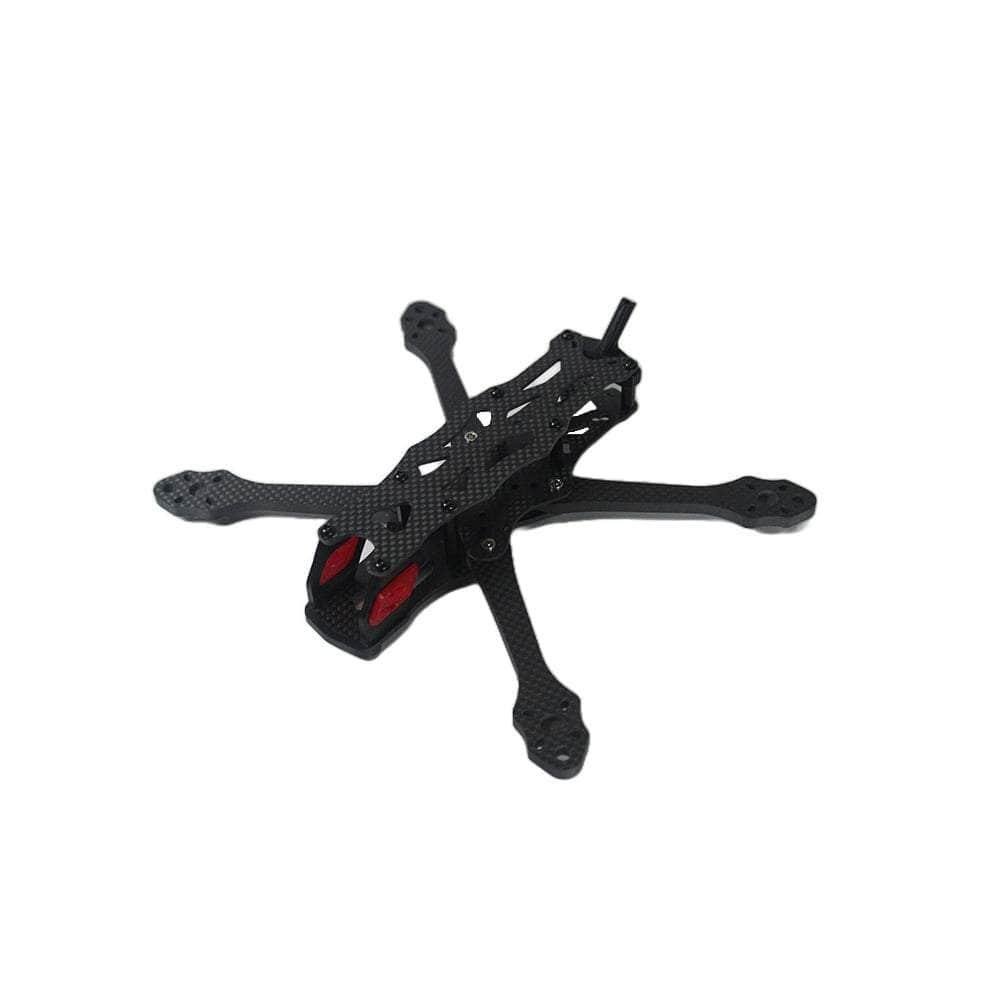

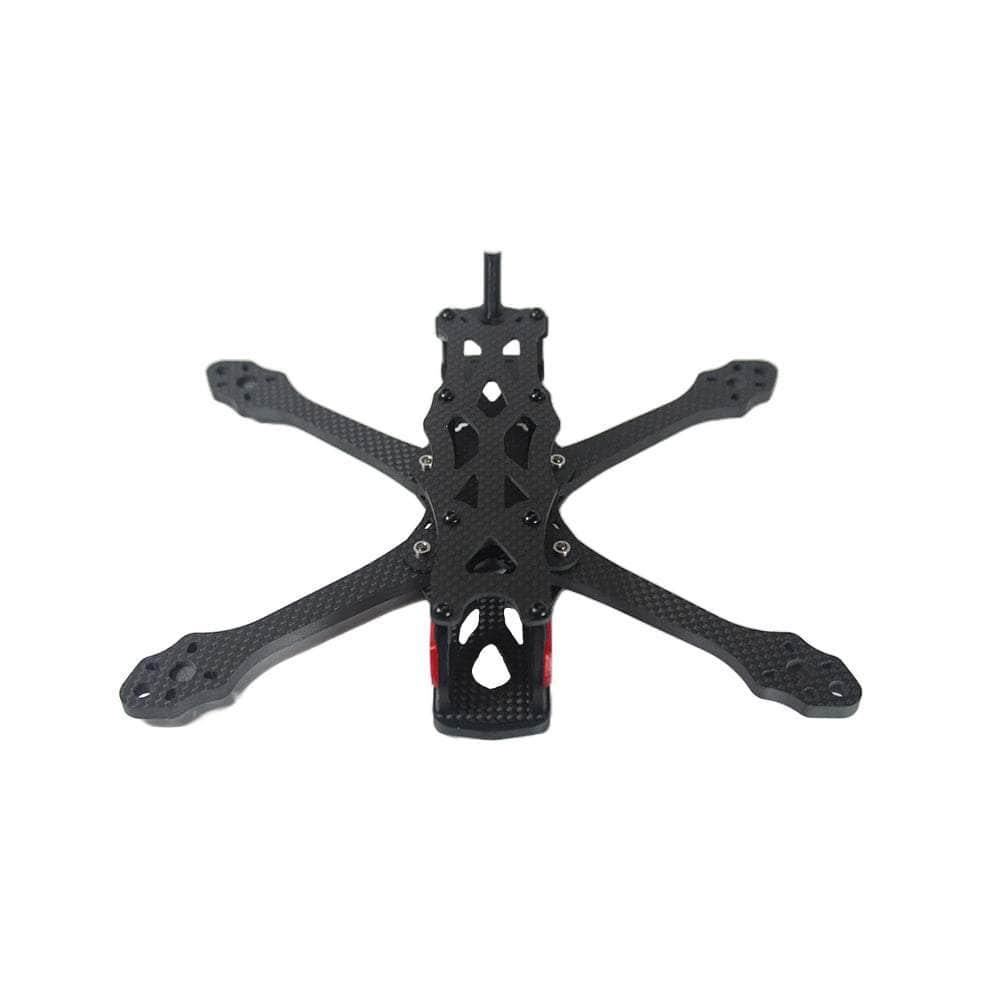

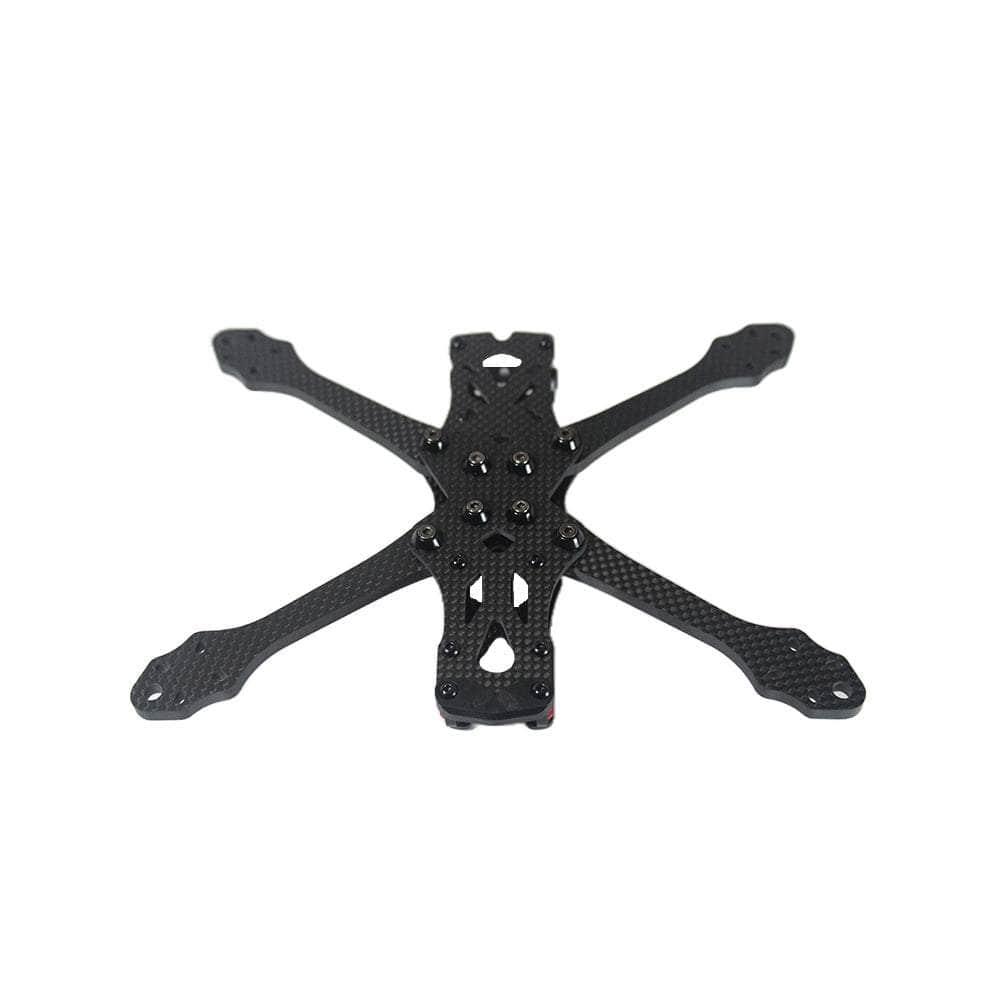

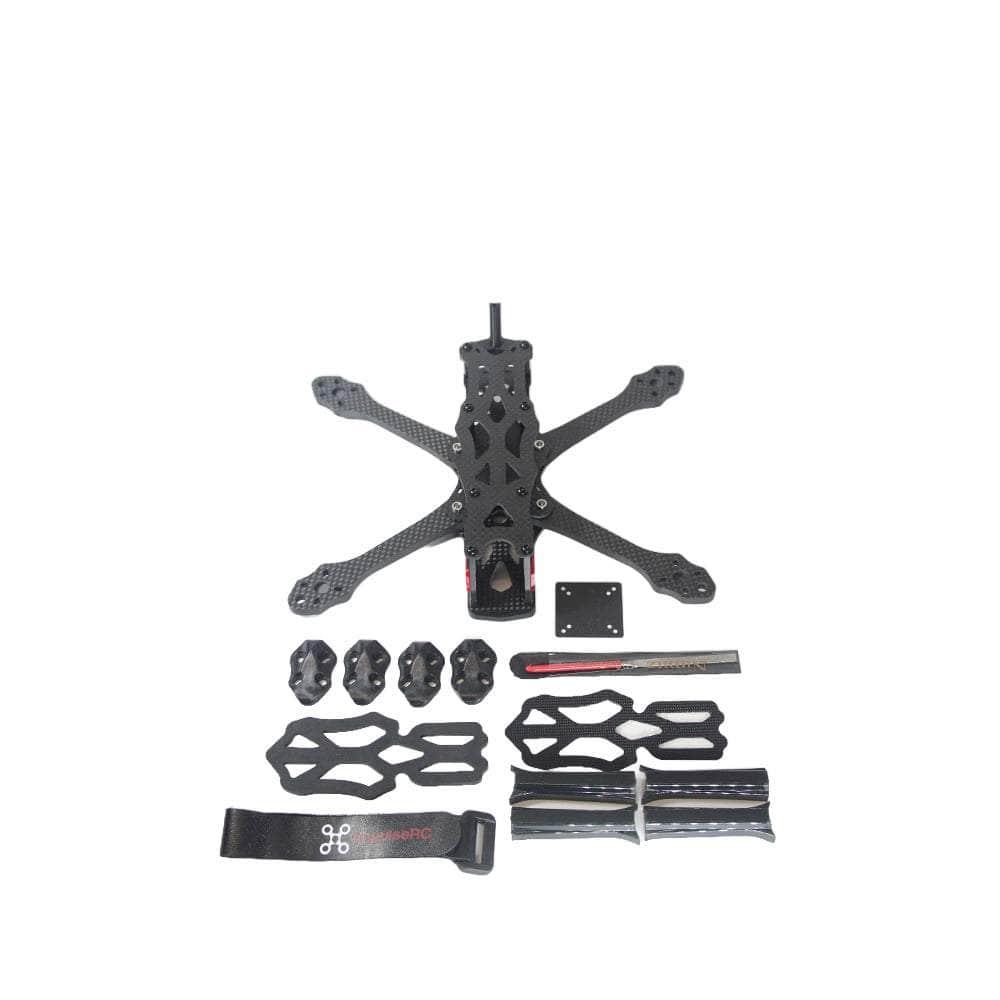

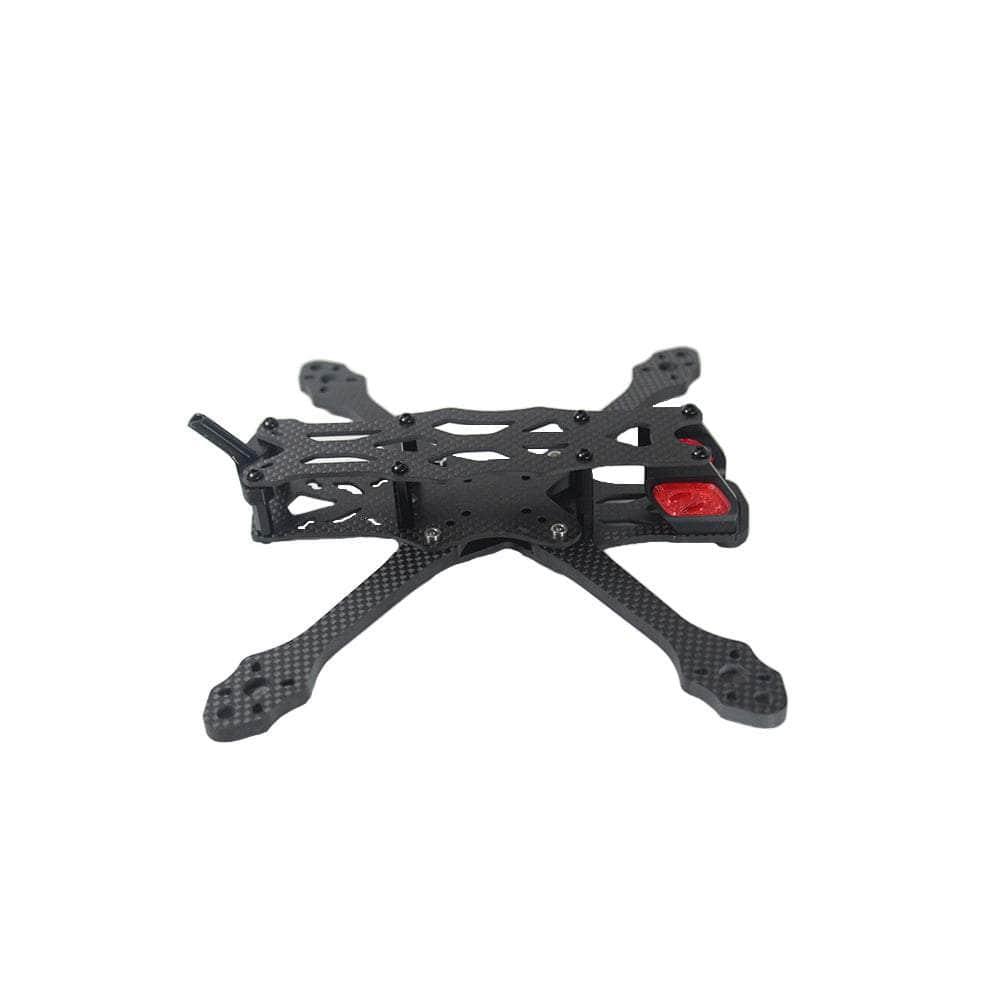

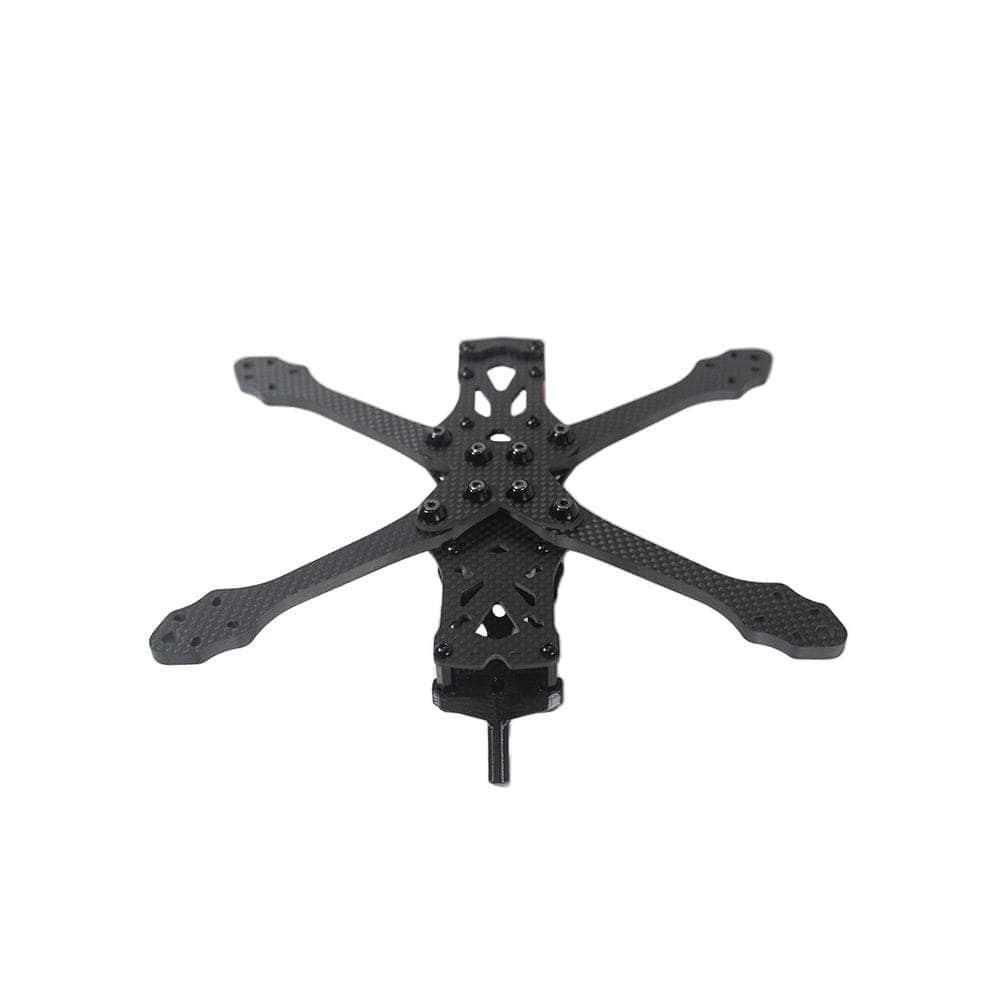

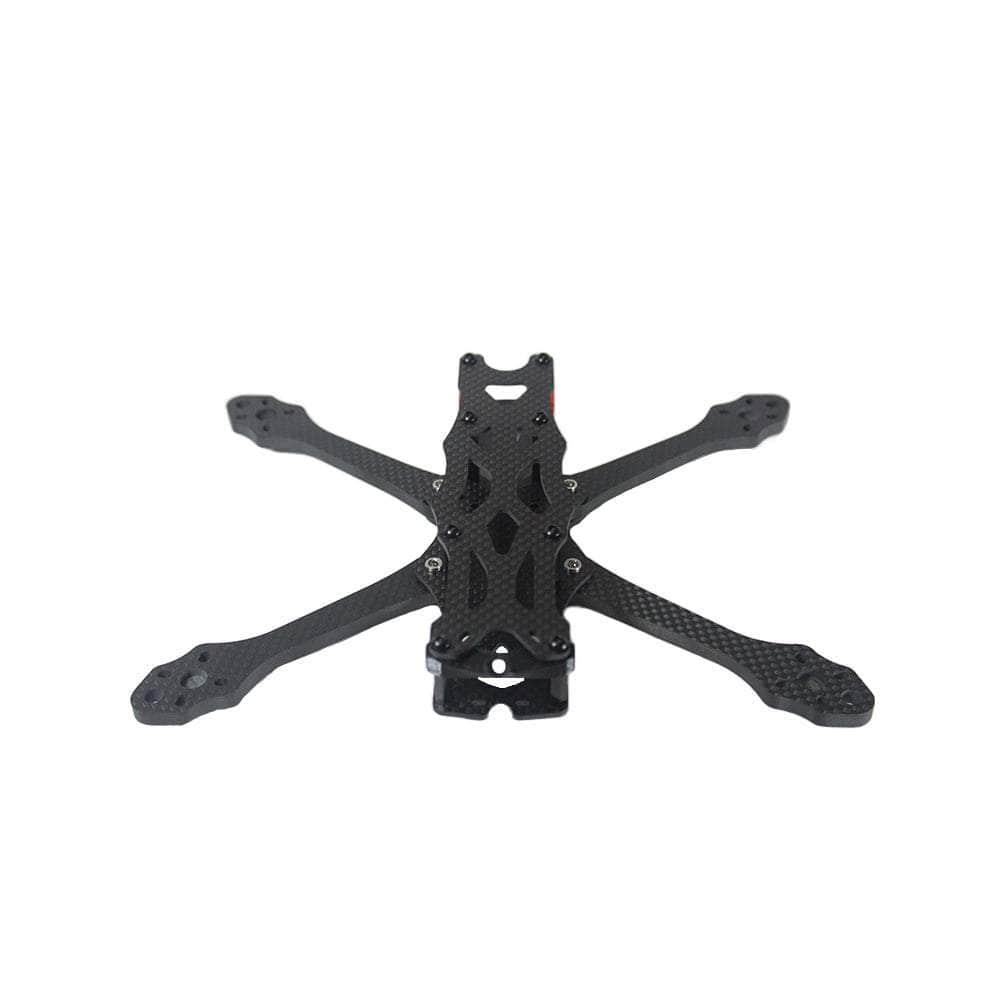

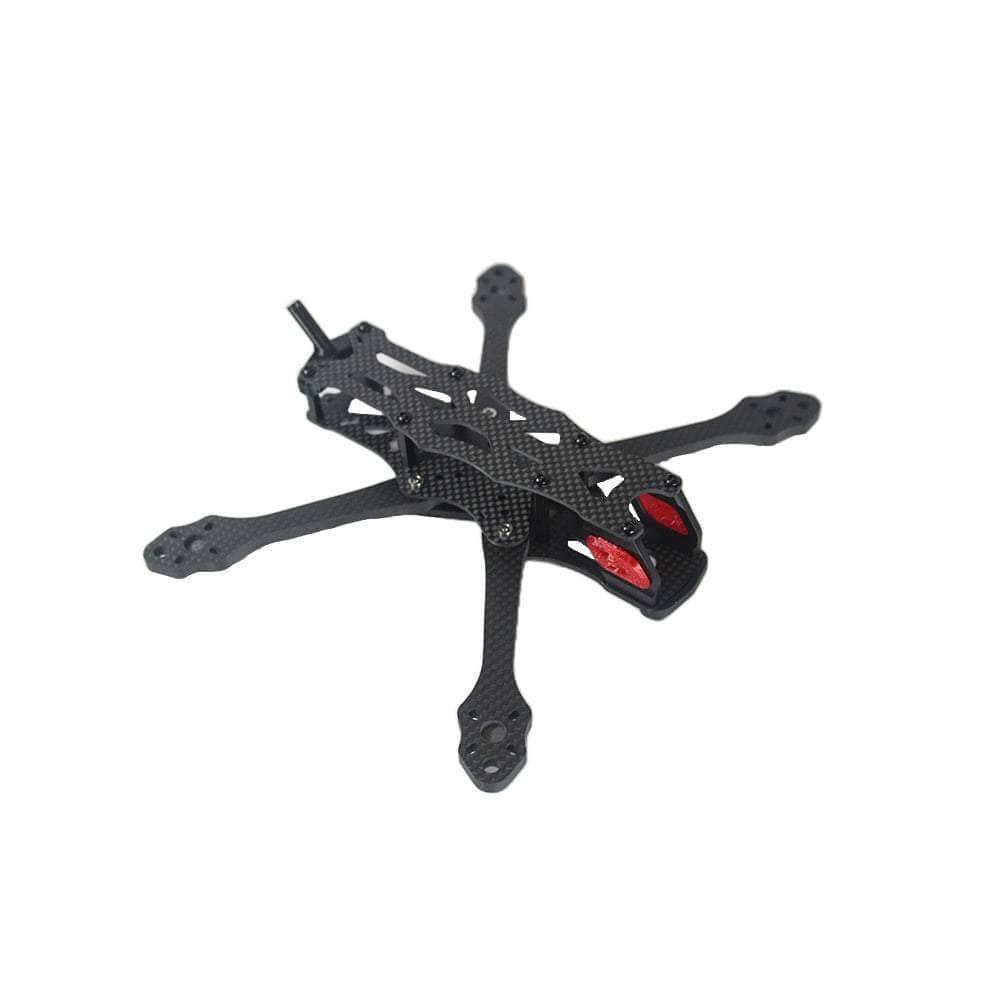

The ImpulseRC Apex EVO 5" HD Freestyle Frame Kit offers the best of frame durability and video performance. Its carbon fiber components provide superior strength and rigidity, while its aluminum and TPU camera mount and HD video isolation parts help ensure high-definition video clarity. For extra protection, the kit includes injection-molded skids and bumpers, plus rubber and velcro battery pads to keep your battery secure. Includes diamond files, battery strap, and more.

Make sure to out our other ImpulseRC 5" Frames, as well as all our ImpulseRC Gear!

Features

New redesigned aluminum camera mount
HD video system isolation
Antenna mounting
Custom arm guard skids
This frame is compatible with the DJI O3 Air Unit

Camera Mount

Included with the Apex EVO is a newly redesigned aluminum camera mount and 3D printed isolation inserts. This keeps the camera firmly locked in place and reduces vibrations, whilst ensuring it is electrically isolated from the frame.
With the many different HD and analog cameras on the market there is a large variation between models in the distance from the front of the lens to the mounting bolts. To give the camera the best possible protection, whilst also keeping the frame out of shot, it is critical to be able to adjust the position of the camera forwards and backwards within the frame.
By rotating the TPU inserts 180 degrees, as well as alternating between using the upper or lower bolt as the pivot point, the EVO camera mount has 4 possible mounting positions each 2mm apart.

HD Video System Isolation

A major drawback of the some modern HD video systems is that the body of the unit is grounded, this can cause the conductive carbon fiber plates and frame hardware to be grounded too. In an ideal world this is not necessarily a problem, however in the real world it's an accident waiting to happen.
Alongside the required M2 mounting hardware for the Caddx Vista and M1.6 hardware for the DJI O3, we also include a die-cut mylar insulator and custom machined 'cone rivets' from non-conductive POM.
When installed your HD video system, and also the mounting hardware, is electrically isolated from the frame. This solution adds only 0.5g of extra weight compared to other designs using bulky and heavy 3D prints.
