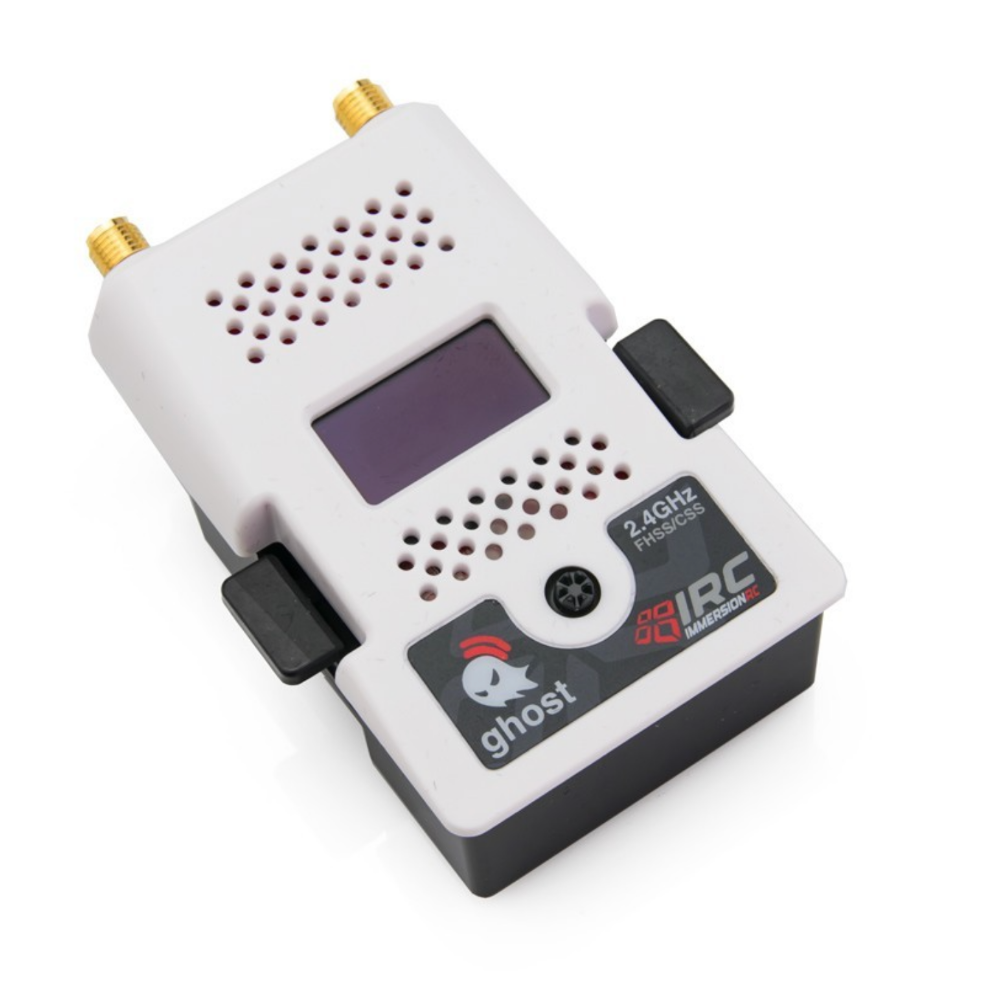

IRC Ghost Modular Transmitter JR Style 2.4GHz - NDAA

The Ghost is the next generation R/C control system from ImmersionRC. From the engineers who changed the Analog FPV world with rapidFIRE, comes the Ghost to set a new bar for R/C Control technologies. Go faster, further, and safer.

Features

• 2.4GHz ISM Band
• ‘R Compatible Transmitter with Diversity Transmission
• One Of The Smallest Receivers On the Market
• Chirp Spread Spectrum, with Adaptive FHSS
• Crazy Race Performance, 222.22Hz updates
• ~4ms End to End Latency, with OpenTx Integration
• More range than most pilots will ever need

Specifications

• Frequency Range: 2406 - 2479MHz
• Modulation: Chirp Spread Spectrum + Adaptive FHSS
• Binding: Bidirectional with confirmation and protocol negotiation
• RF Profiles: Race, Pure Race, ‘Normal’, and Long Range, more to come

JR Module Transmitter Specifications

• Uplink Tx Power: 16uW - 350mW (+/- 0.5dB)
• Frame Rate: 222.22Hz (purerace), 166Hz (race), 62Hz (normal), 15Hz (long range)
• Format: Standard JR Module: tested with FrSky Taranis™, and RadioMaster™ radios
• Compatibility: Any R/C Tx which accepts JR modules (Taranis, etc. )
• Serial Formats: SBus, GHST 1 - Auto-Sense
• Firmware: USB Upgradable(with OTA updates for receivers)
• Power Supply: 6V-20V, 1.75W @ 400mW, ~250mA at 7.4V

For the latest firmware and or manuals please click here
