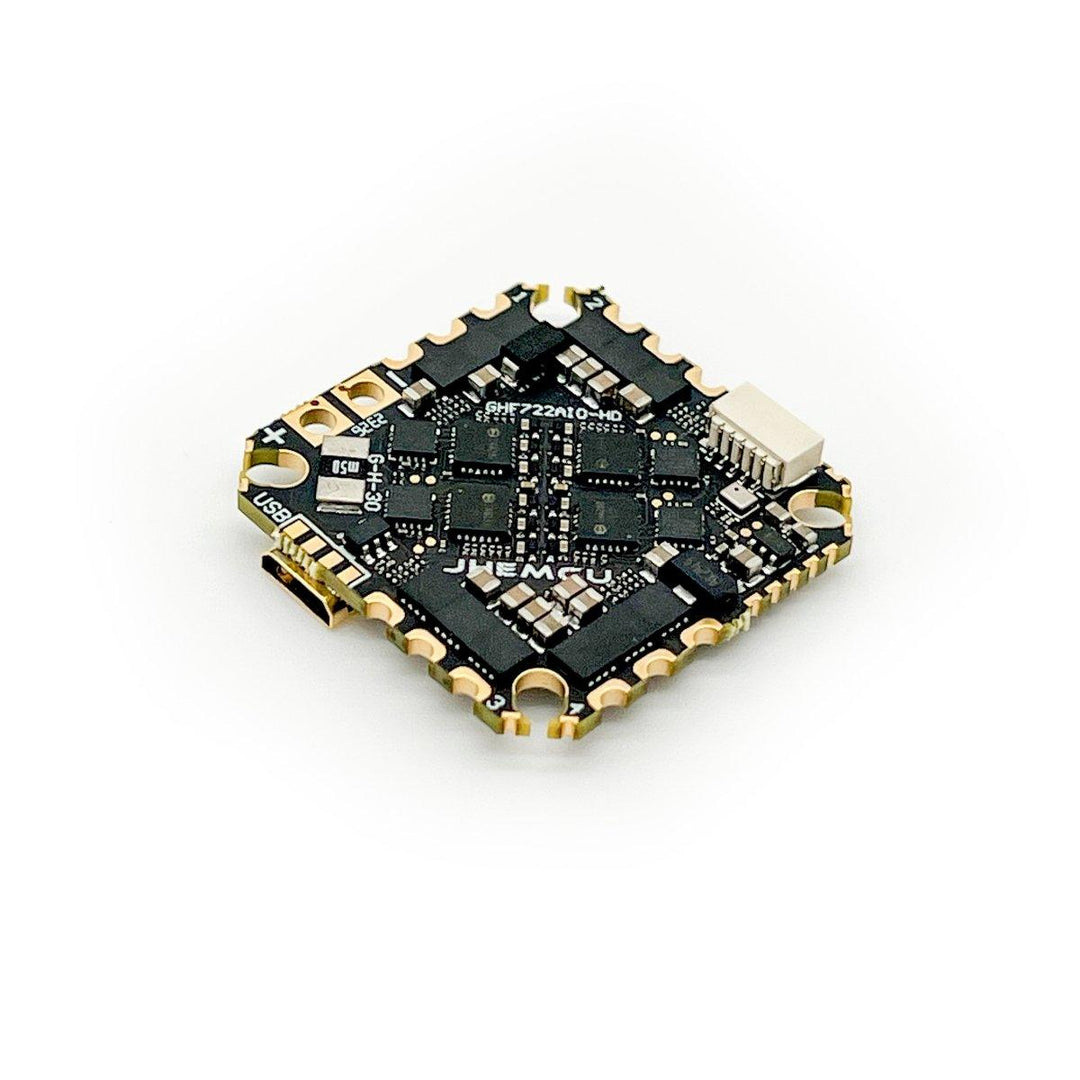

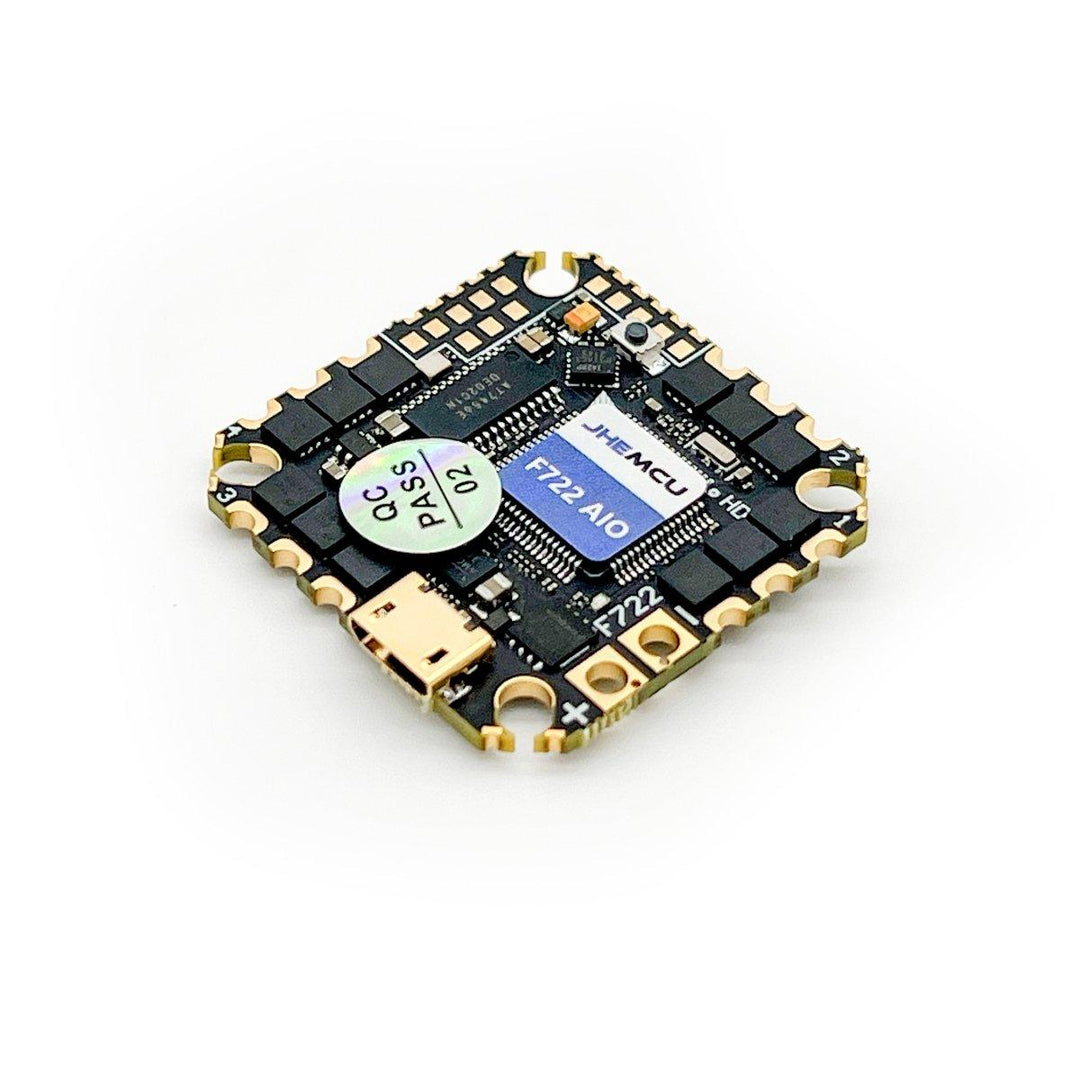

JHEMCU GHF722AIO-HD 40A AIO HD 25.5x25.5mm Flight Controller/ESC


Regular price $89.99 Sale price $74.99
/
  • In Stock
NOTE: This item is on backorder, which means it will be delivered as soon as we receive our next shipment from our supplier. This typically ranges from 1 to 3 weeks.

Earn 296 CaveCoin by purchasing this item.

or Sign Up to start earning on your next order.

  • Delivery Wednesday, May 29 to Friday, May 31
    FREE delivery on most orders over $99. 30 Day Return Policy.
    Ships from: WREKD Warehouse, Ohio, United States

About this item

Great candidate for your TinyTrainer!

Specifications

  • Model: GHF722AIO-HD ESC-40A
  • Item Name: JHEMCU GHF722AIO- HD 40A F722 Flight Controller STM32F722 W/5V 10V BEC Gebaut-in 40A BLHELI_S 2-6S 4in1 ESC for FPV Racing Drone
  • Dimensions: 33.5mm x 33.5mm
  • CPU: STM32F722
  • Mounting Hole: 25.5x25.5mm
  • Weight: 7.8g
  • Gyro: ICM
  • USB: MicroUSB and Included TYPE-C w/ Adapter Board
  • Firmware: JHEF7DUAL, Betaflight 4.3.0+ Required
  • Black box: 16MB

ESC Specifications

  • Con. Current: 40A
  • Burst Current: 50A
  • Input Voltage: 2-6S Lipo
  • Firmware: BLHELI_S/BluJay
  • Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

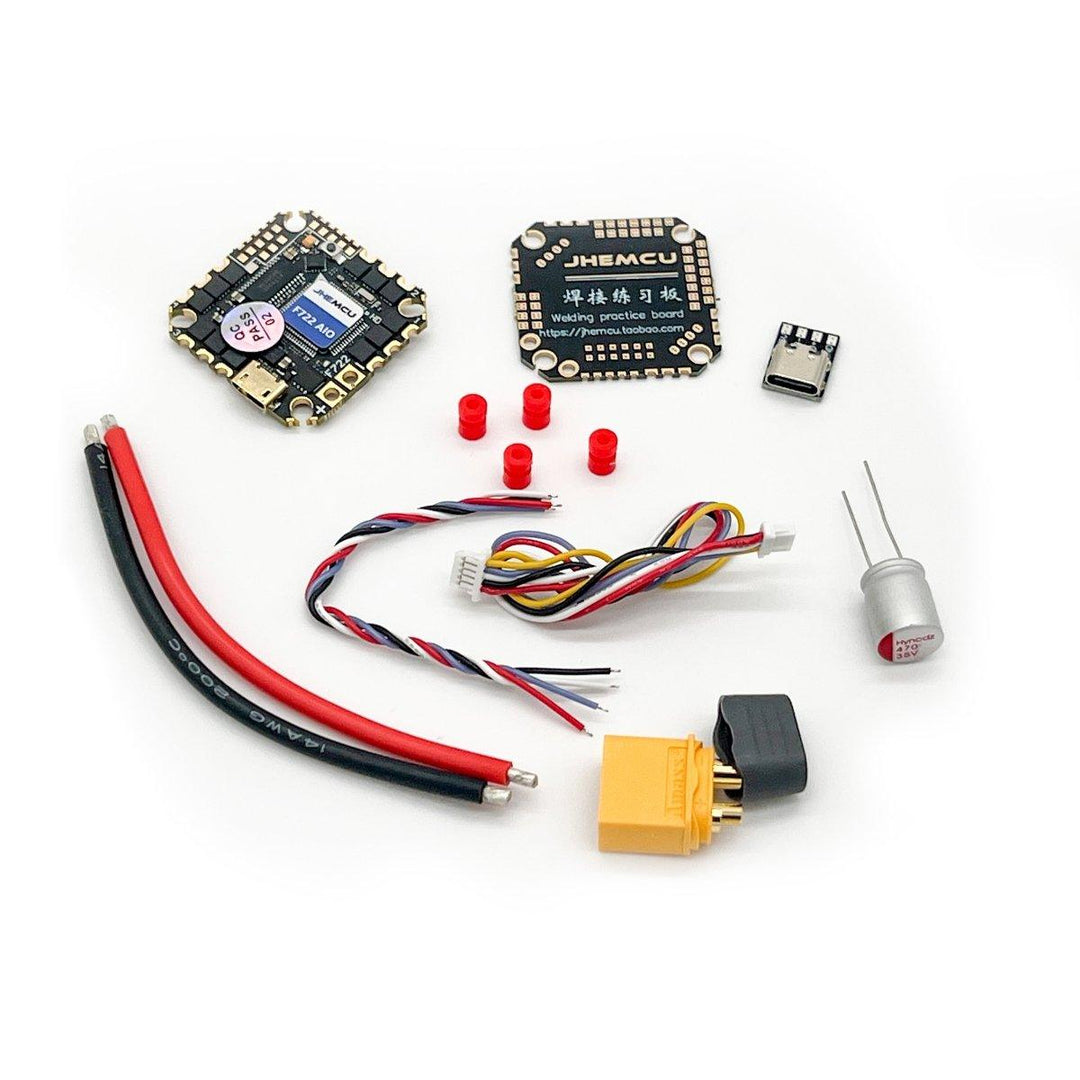

Includes

  • 1 x JHEMCU GHF722AIO-HD Board
  • 1 x 14AWG Red Cable
  • 1 x 14AWG Black Cable
  • 1 x 470UF 35V Capacitor
  • 4 x M2 Rubber Shock Absorber
  • 1 x XT60H Plug
  • 1 x USB-C Module
  • 1 x Solder Practice Board
