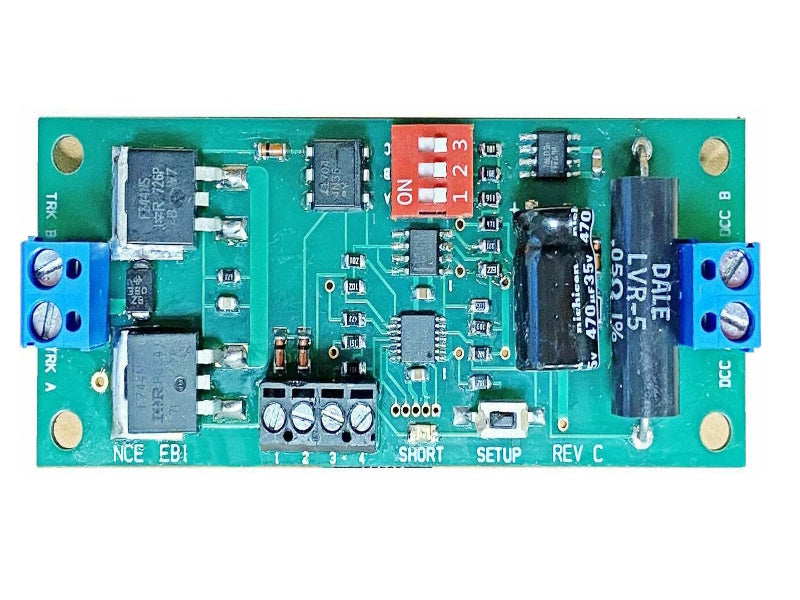

NCE 524-225 EB1Single Electronic Circuit Breaker 10 Amp

NCE 524-225 EB1 v1.1 Single District Electronic DCC track power Circuit Breaker.

Provides short circuit protection for one power district. Can be used with most DCC systems. Default trip time is 30 times faster compared to the basic overload setting in all NCE systems.
Electronic circuit breaker for use on DCC layouts only. Does not work with DC.

Provides short circuit protection for one power district
Trip current adjustable for 1.5 to 8 Amps
Easy hookup using screw terminals, no soldering
Status indication LED - goes OFF when no track power is present.
Additional output for remote LED
Optional manual reset if you attach an external momentary push button
Adjustable short circuit response time. Default of 16mS.
Adjustable power-up response time to accommodate startup of sound decoder equipped locomotives.
