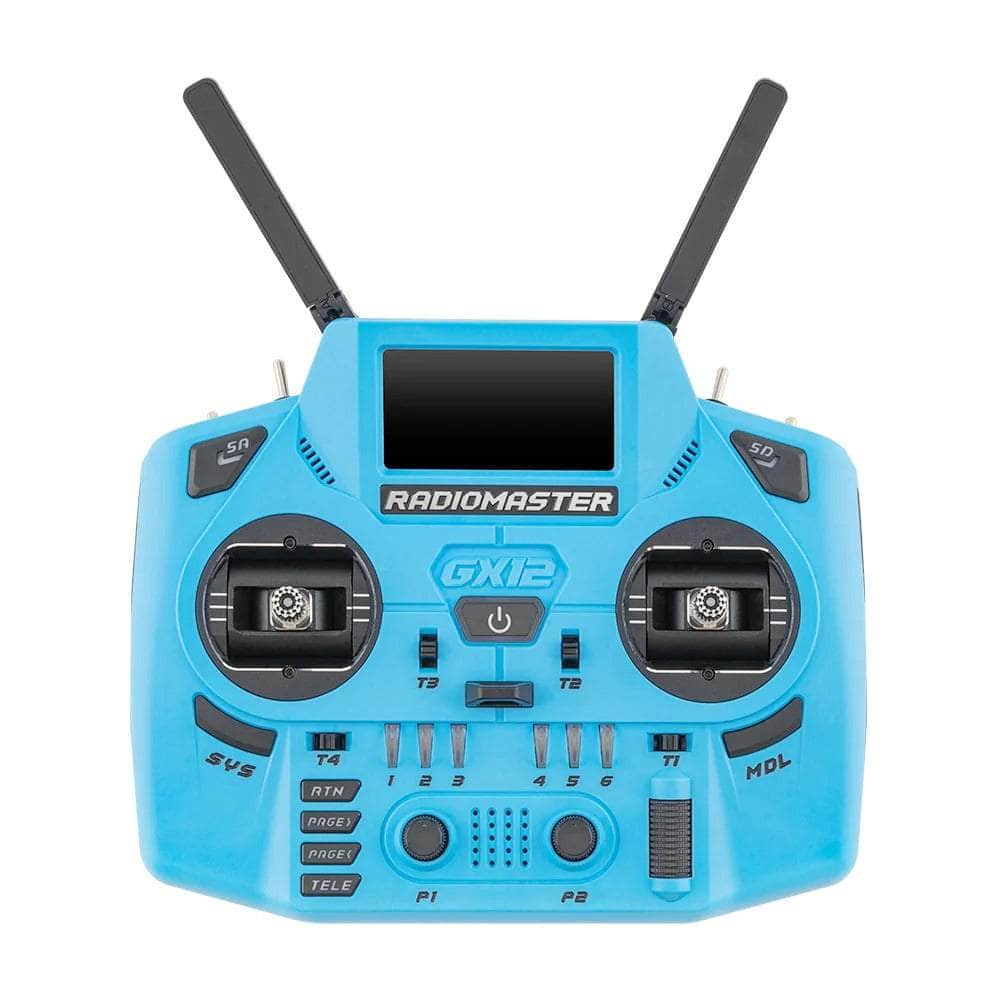

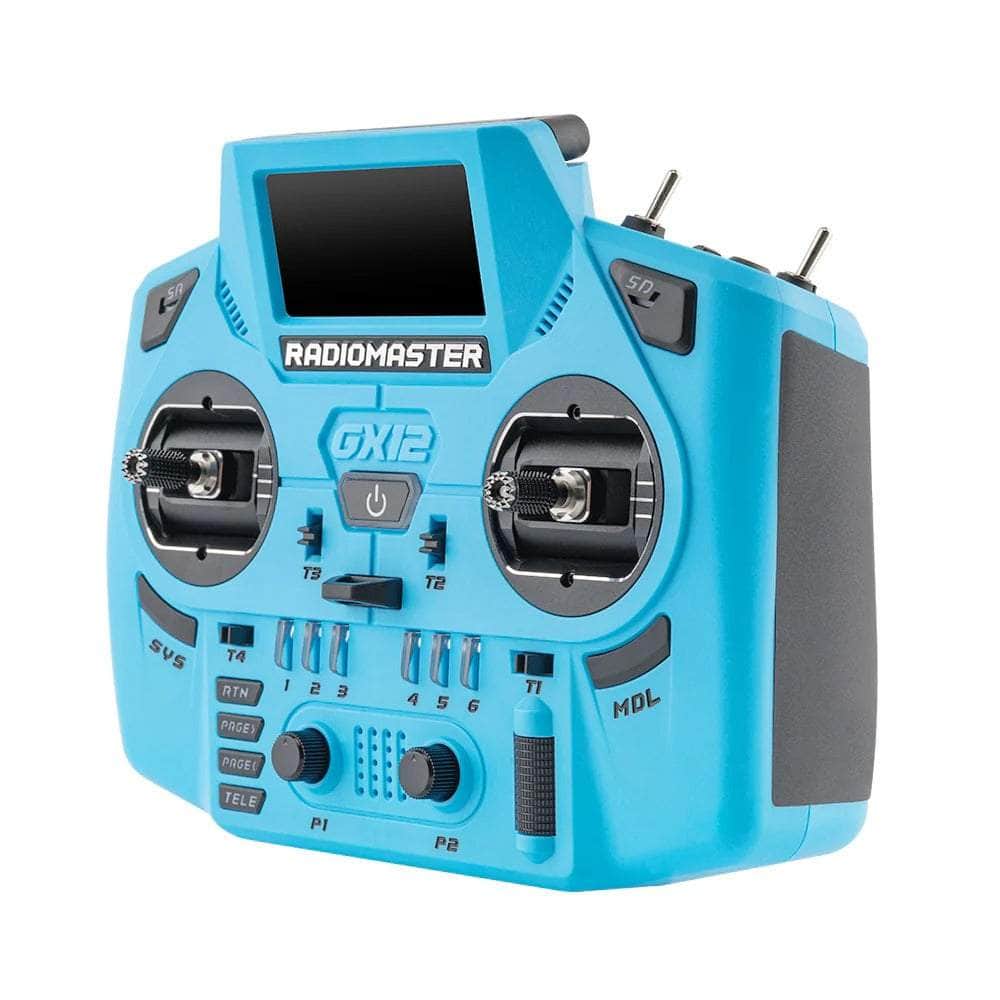

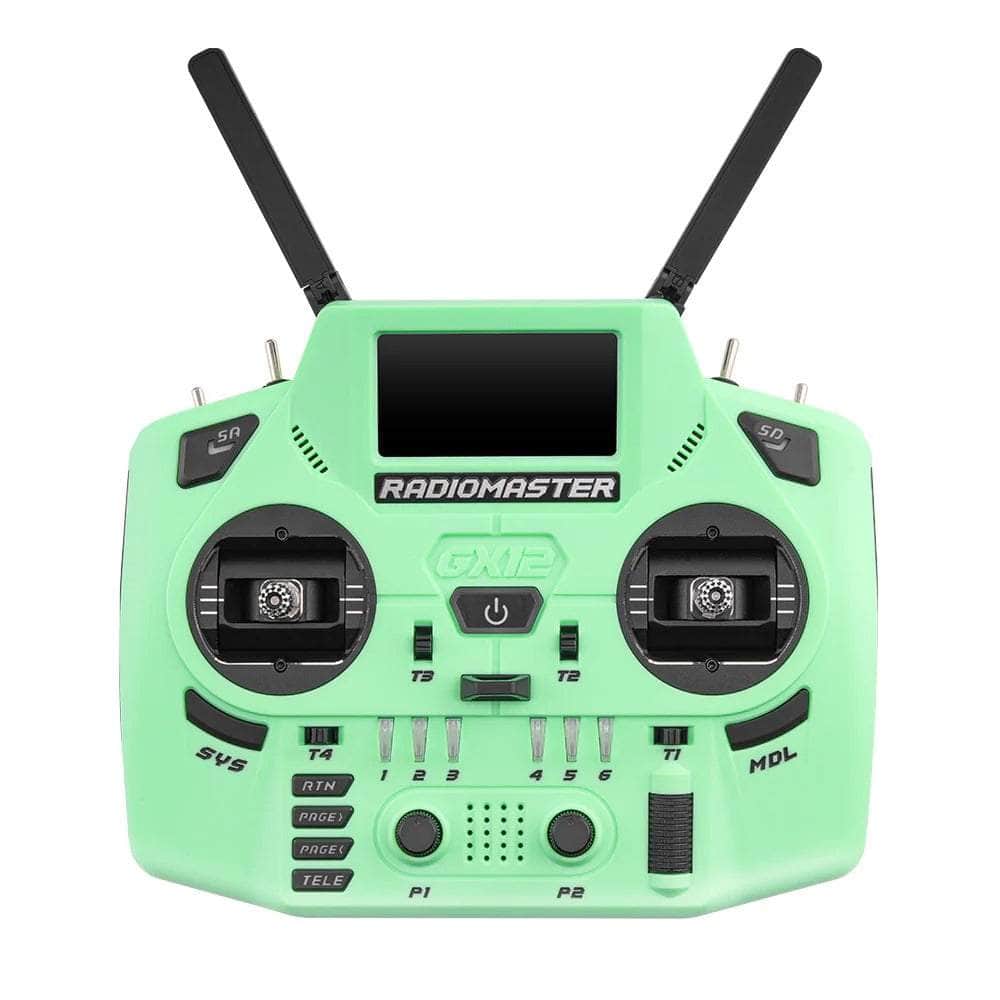

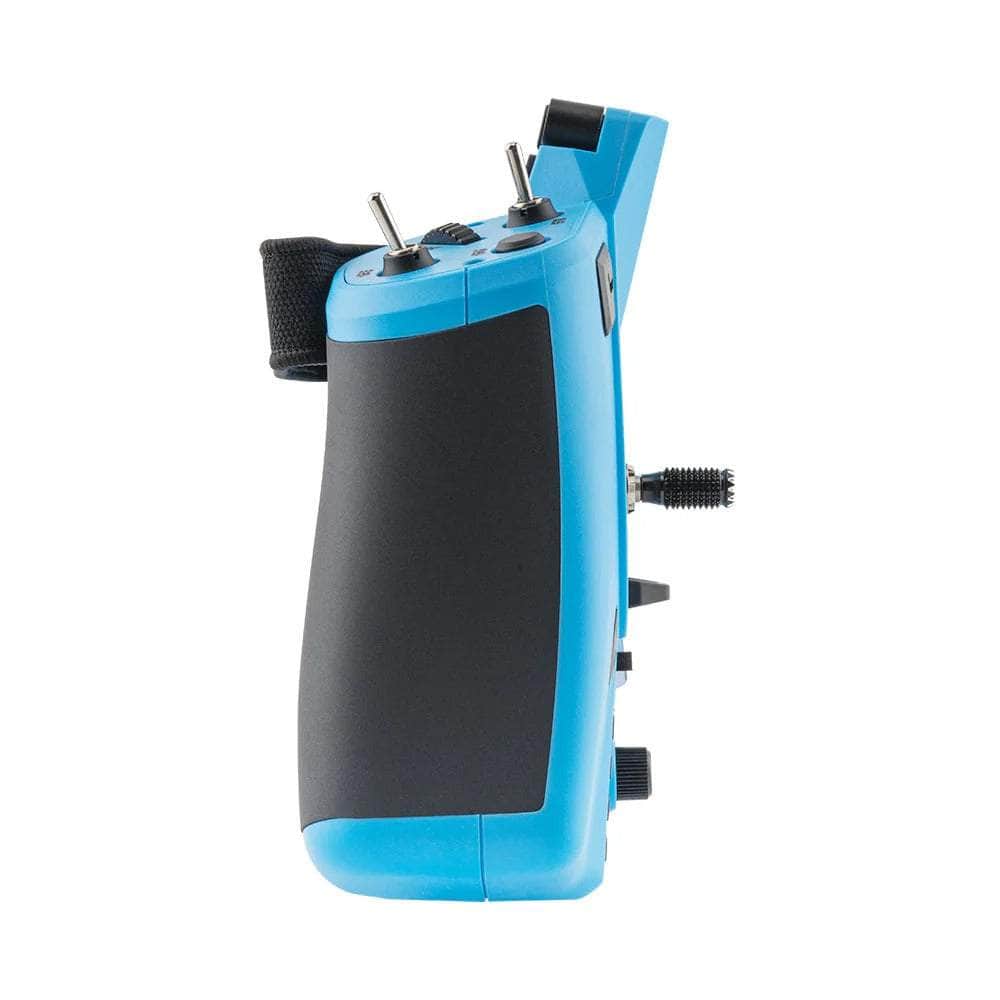

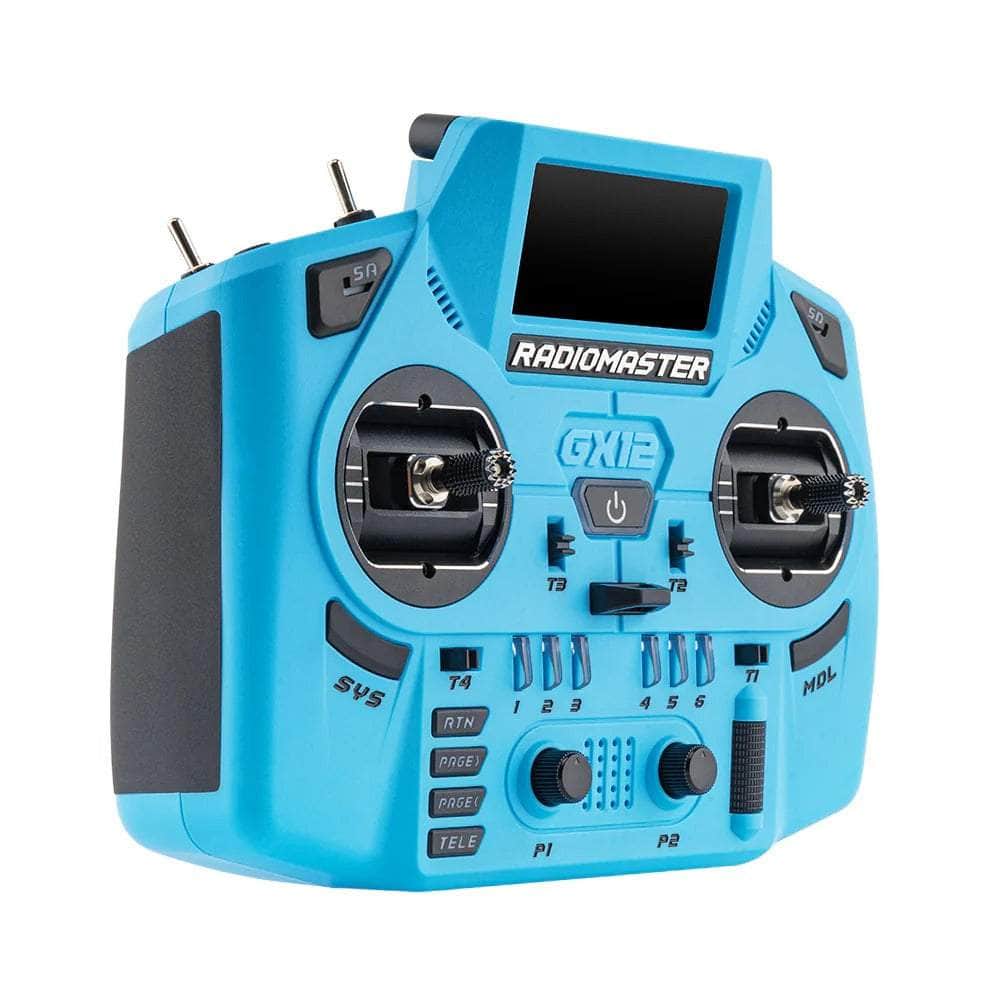

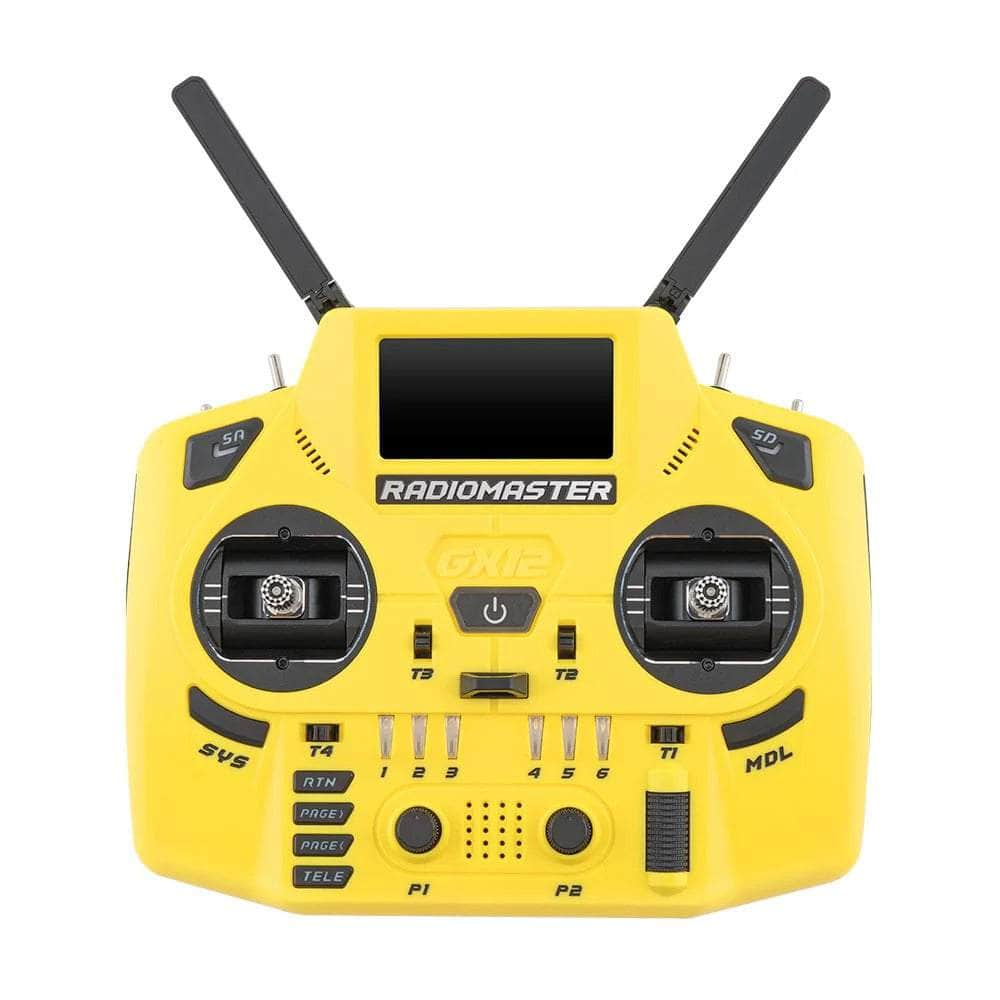

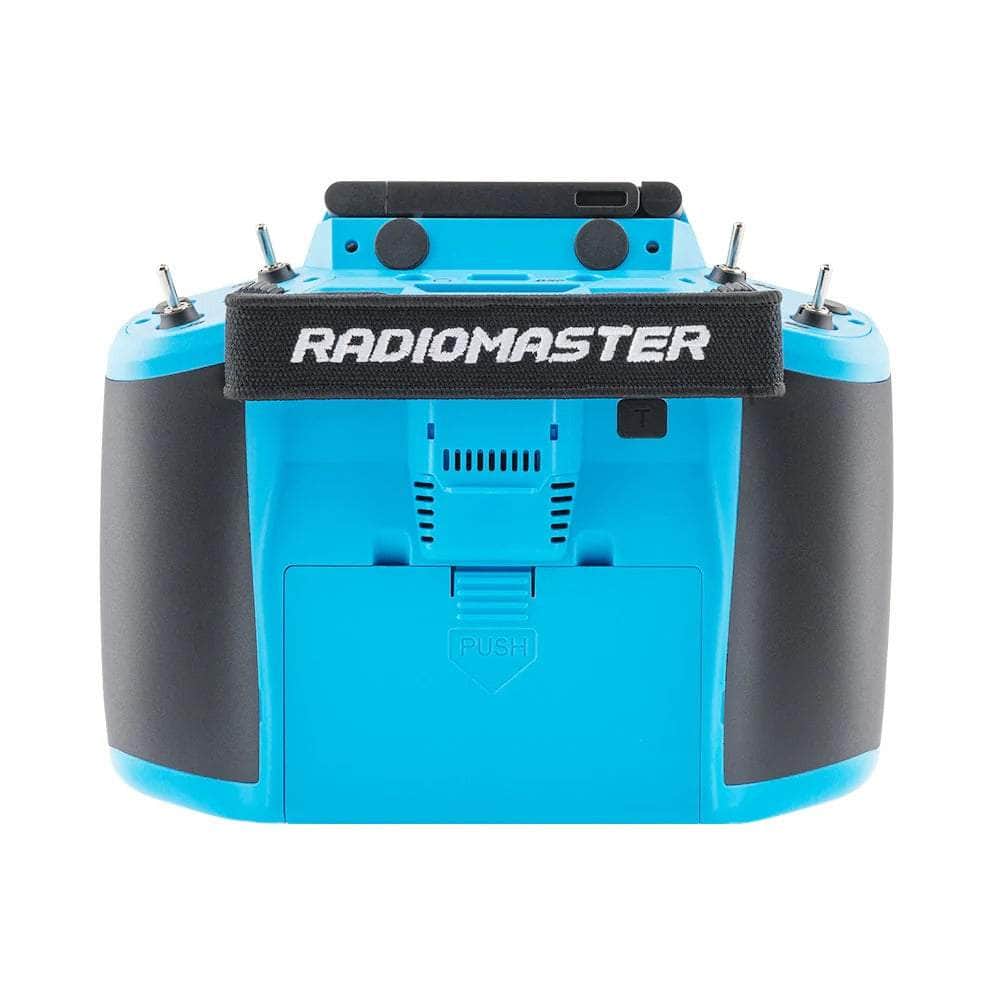

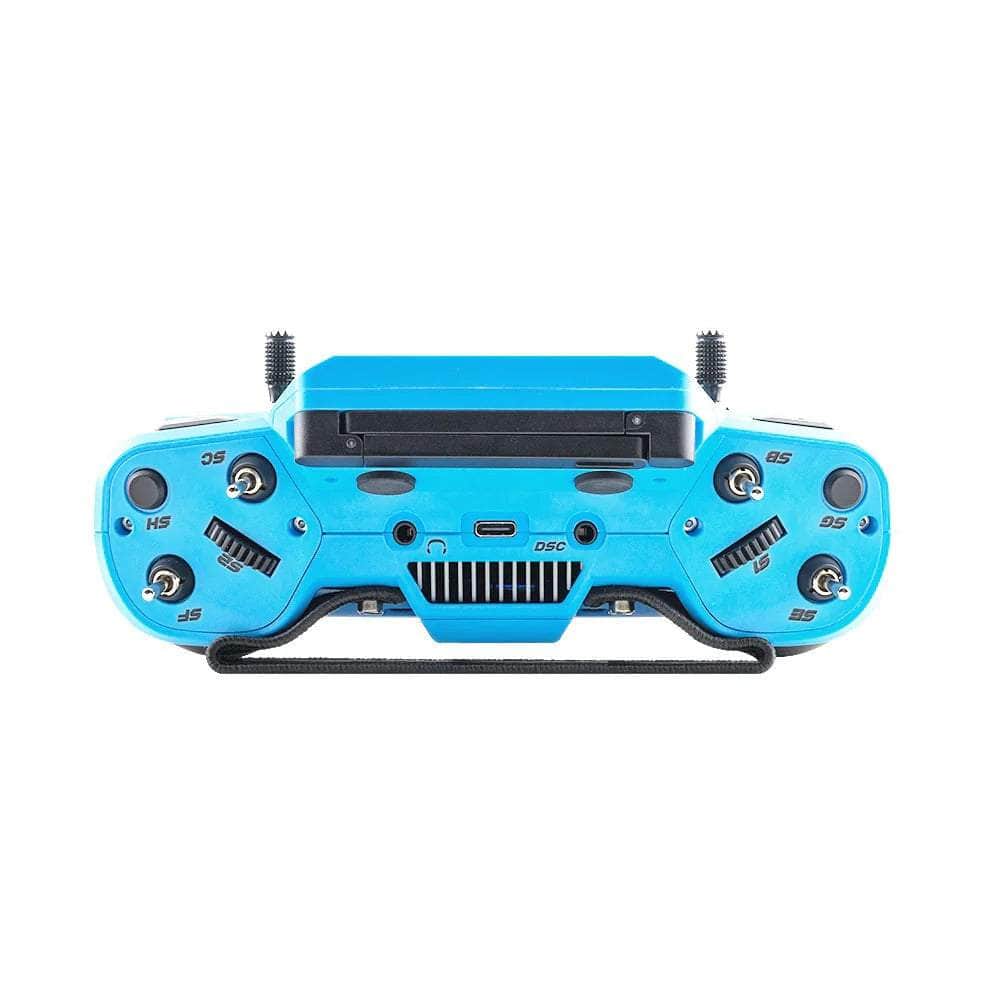

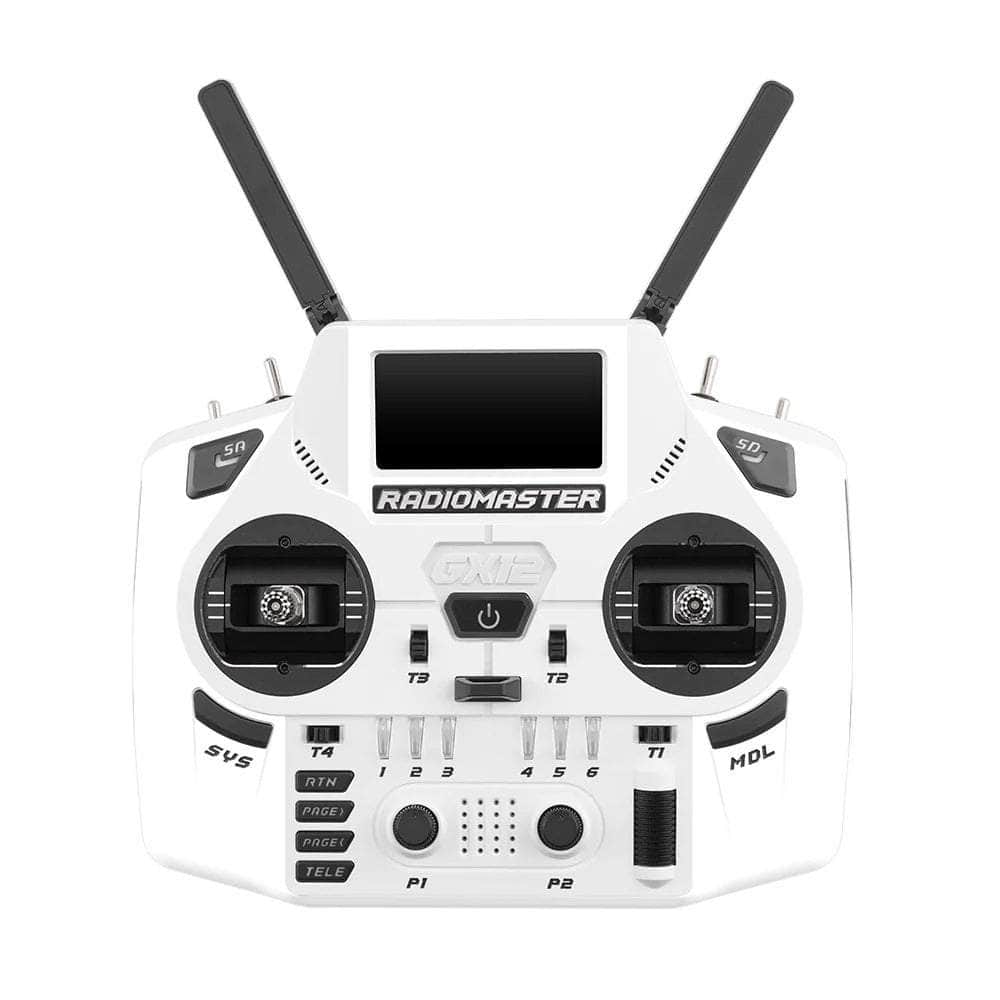

RadioMaster GX12 Dual-Band Crush Radio Controller - ELRS 2.4GHz M2 - Choose Color

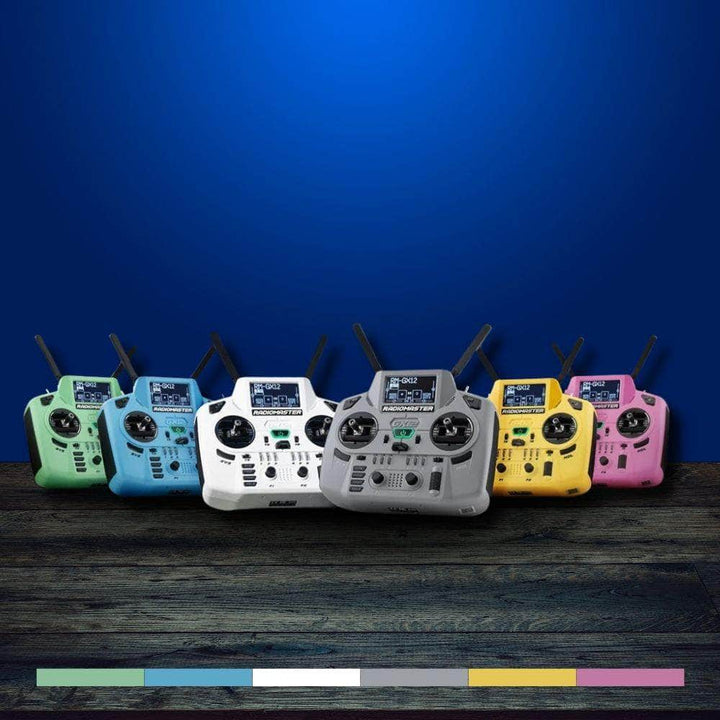

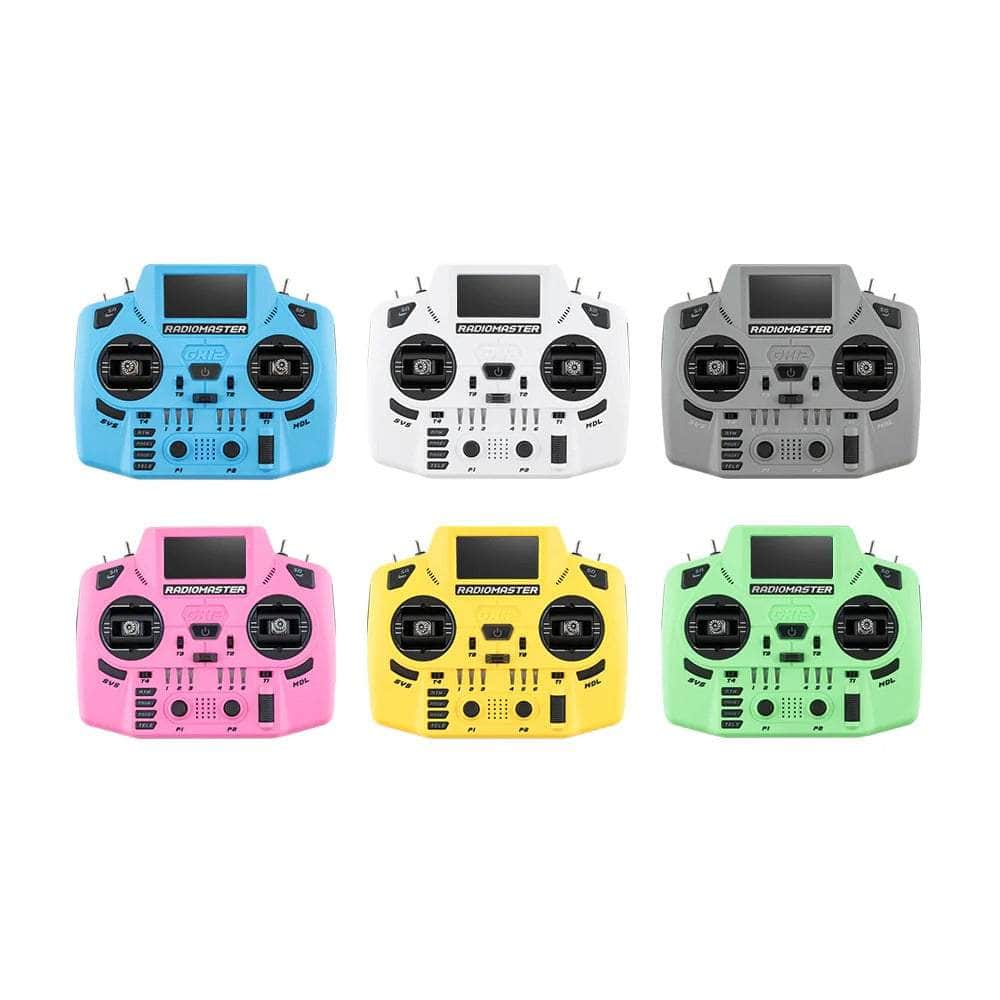

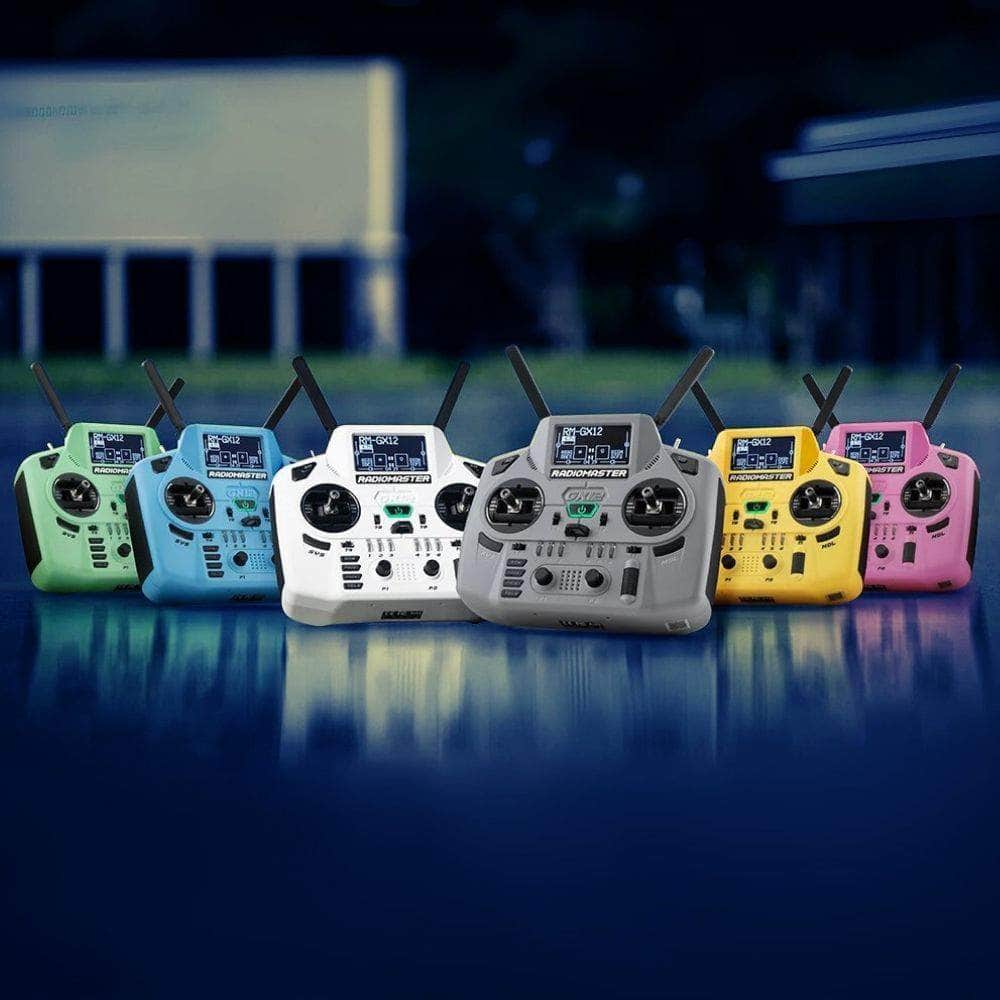

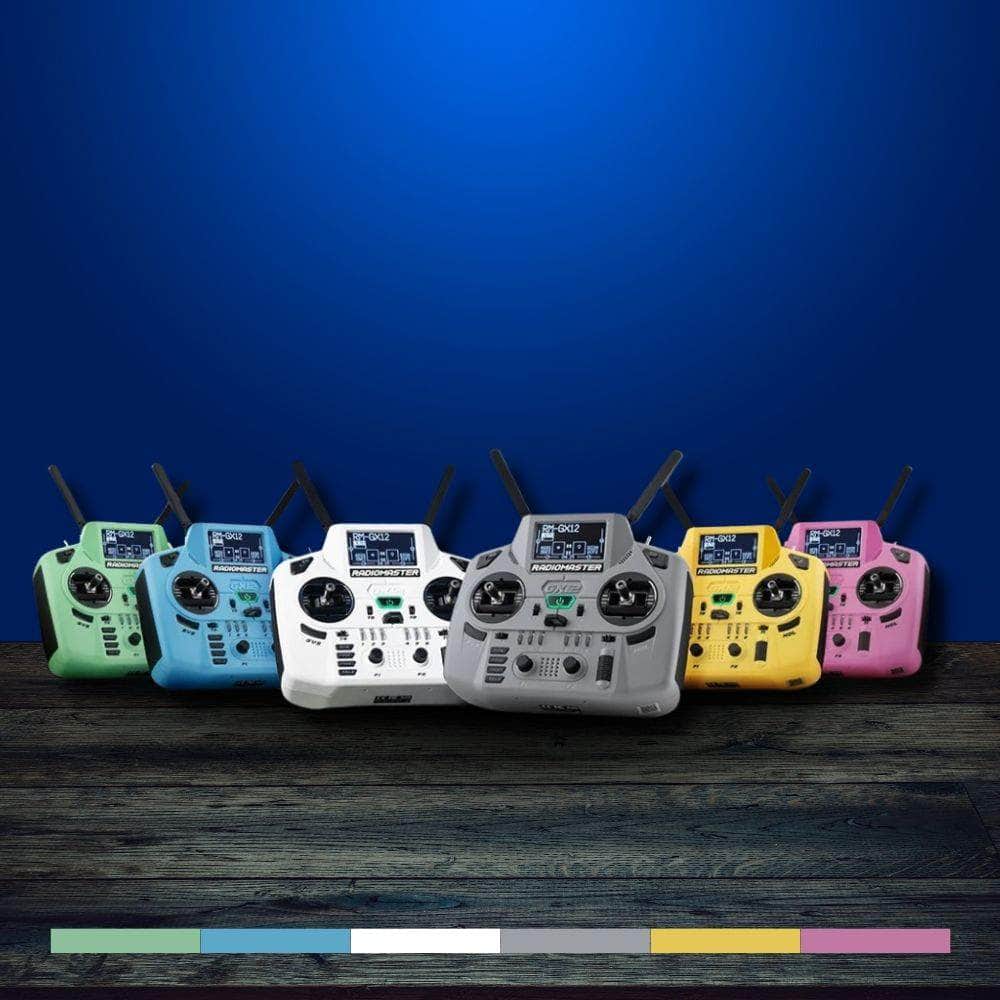

The RadioMaster GX12 marks a new era of innovation and technology in high-performance radio controllers. Designed for drone racing, FPV flying, and video production, the GX12 prioritizes signal strength and reliability, ensuring you stay connected when it matters most. Whether for work or play, the GX12 embodies excellence in drone control. Welcome to the future of radio controllers—elevate your RC experience with the latest advancements in open-source technology and performance! Available in multiple stunning colors—each designed to inspire and excite.

Check out all our RC Transmitters and our entire RadioMaster selection!

Features

Note: Batteries are not included.

• Dual-Band Dual 1W Gemini Xrossband ExpressLRS Transmitters
• GX01 CNC Aluminum 3D Hall Sensor Gimbals
• 1000Hz Digital Gimbals with EdgeTX Sync
• Integrated Folding Dual-Band Antennas
• Programmable 6-Position Switch
• Customizable RGB Indicators
• Advanced Cooling System
• Removable Switch Panels
• 512MB Internal Storage
• Folding Gimbal Sticks
• USB-C Connectivity
• PCB Nano Coating
• DIY SMA Ports
• OLED Display

Frequency

Introducing the GX12 Radio Controller: a groundbreaking fusion of cutting-edge technology from ExpressLRS and EdgeTX. The GX12 is the first radio to feature ExpressLRS Gemini-XROSSBAND (Gem-X), enabling simultaneous transmission on both 2.4 GHz and 915 MHz for unmatched interference rejection. Designed with integrated folding dual-band antennas, the GX12 supports all current 2.4 GHz and 900 MHz ExpressLRS receivers, as well as the new generation of Gemini-XROSSBAND receivers, delivering extended range and exceptional performance. Elevate your flying experience with the ultimate in radio control innovation!

GX12

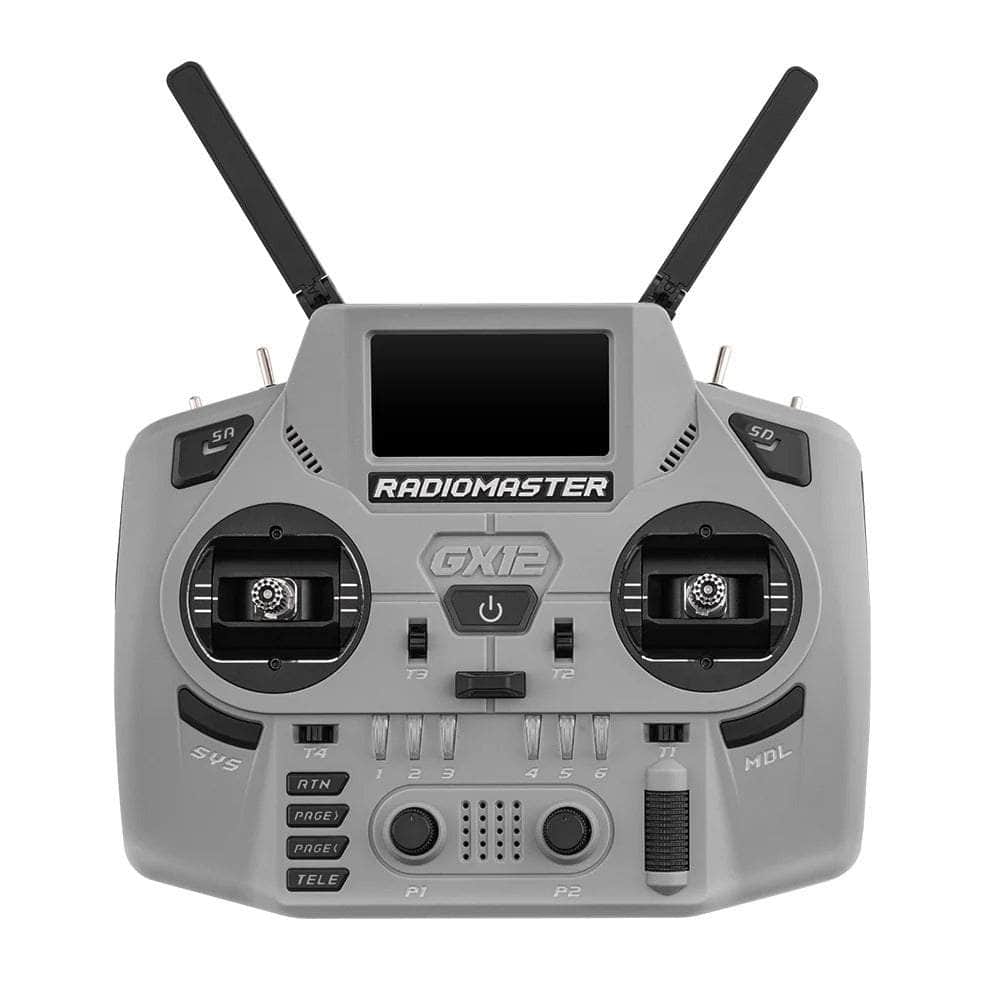

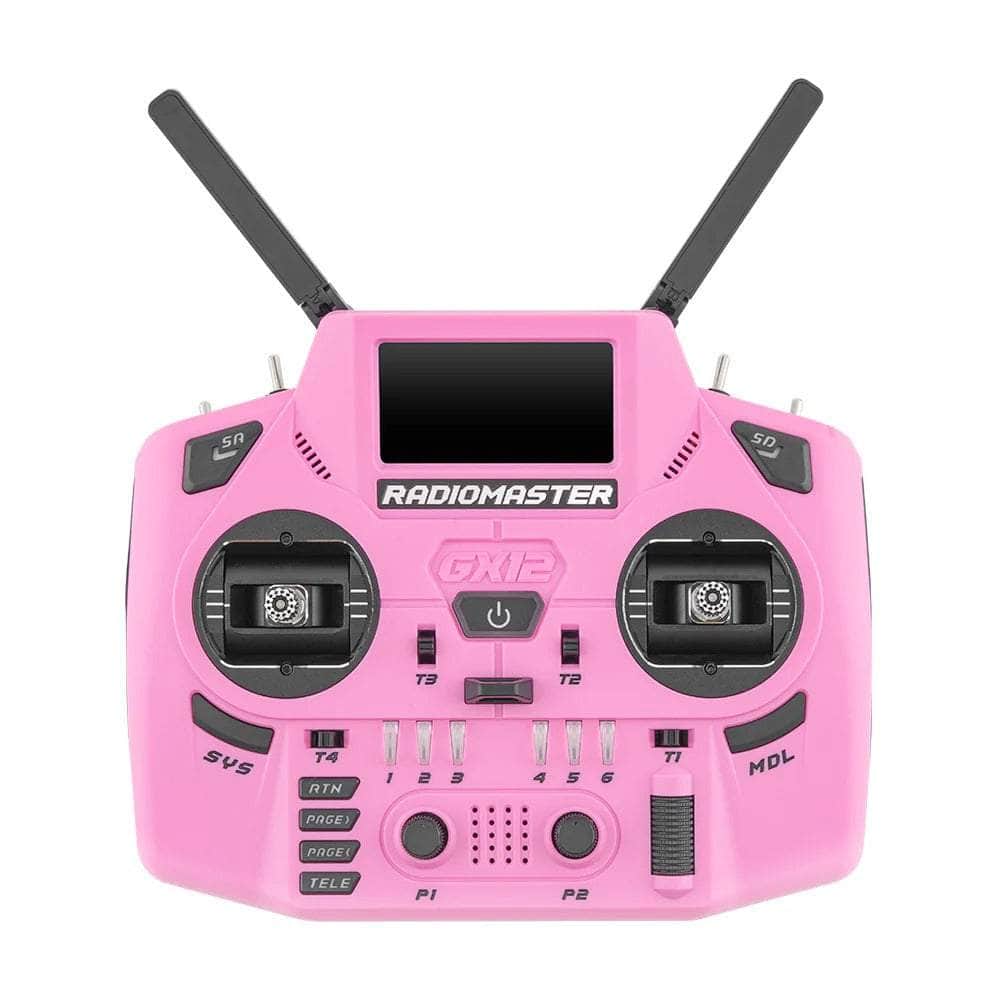

The GX12 redefines your RC experience with exceptional flexibility and cutting-edge features. Removable switch panels enable personalized setups using the included modular panel system, while DIY SMA ports let you select the perfect antennas for your needs. With 512 MB of internal flash storage, the need for TF cards is eliminated, and a single USB-C port simplifies charging, data transfer, and simulator connectivity. The GX12 also features individually programmable 6-position buttons and SA/SD switches, along with customizable RGB indicators to enhance both functionality and style.

Gimbals

Folding gimbal sticks ensure compact storage and easy transport. Featuring all-new 1,000 Hz digital aluminum gimbals, the GX12 delivers unparalleled resolution, precision, and responsiveness in an EdgeTX radio.

Specifications

• Battery: 7.4 V 2-cell Lithium-Polymer / Two 3.7 V 18650 Lithium-Ion cells / 21700 5,000 mAh battery (batteries not included)
• Gimbal: GX01 1,000 Hz, 3D digital CNC Hall effect gimbals with folding sticks
• Antenna: Dual folding 2.4 GHz / Sub-G 900 MHz omnidirectional
• Radio Firmware: EdgeTX (transmitter) / ELRS (RF module)
• Upgrade Method: USB / EdgeTX Companion PC software
• Current: 390 mA – 1,000 mA (depending on RF output)
• Channels: Maximum 16 channels (receiver-dependent)
• RF: Dual 1,000 mW | Dual-band XROSSBAND ELRS
• External Module: Nano / Crossfire-compatible
• Display: 128 × 64 monochrome OLED display
• Internal RF: ELRS 2.4 GHz / Sub-G 900 MHz
• Frequency: 2.400 GHz and Sub-G 900 MHz
• Charging: 2S smart balance charging
• Supported Protocols: ExpressLRS
• Memory: 512 MB integrated flash
• Voltage Range: 6.6 – 8.4 V DC
• Size: 183 × 148 × 78 mm
• Connectivity: USB-C
• Gimbal Sticks: 3 mm
• Item: GX12 Radio
• Cooling Fan: Yes
• Weight: 573 g

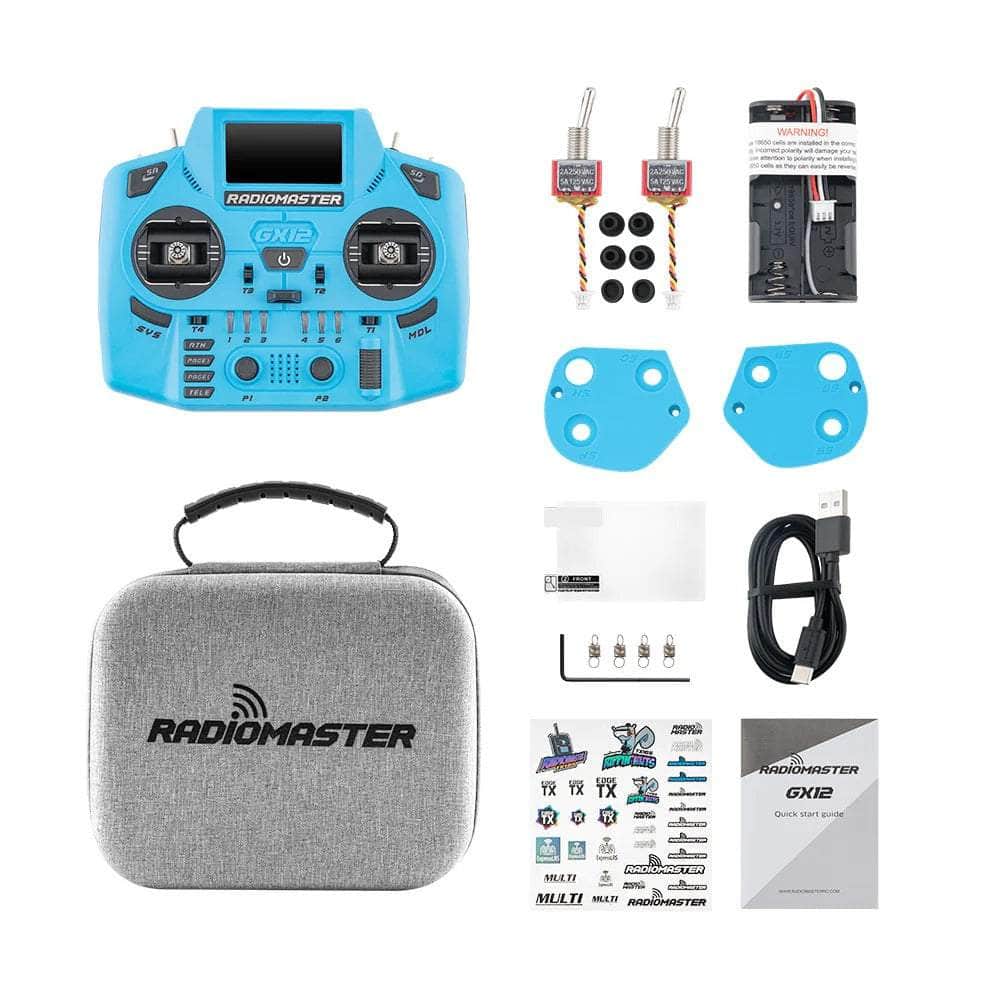

Includes

• 1x RadioMaster GX12 Dual-Band Crush Radio Controller - ELRS 2.4GHz M2 (Choose your color)
• 4x Low-Tension Gimbal Springs
• 2x Replacement Switch Panels
• 1x RadioMaster Sticker Set
• 1x Signature Carry Case
• 1x 1.5 mm Hex Wrench
• 1x 18650 Battery Tray
• 1x Momentary Switch
• 1x 2-Position Switch
• 1x Screen Protector
• 1x GX12 Manual
• 1x Type-C Cable

Batteries NOT included.
