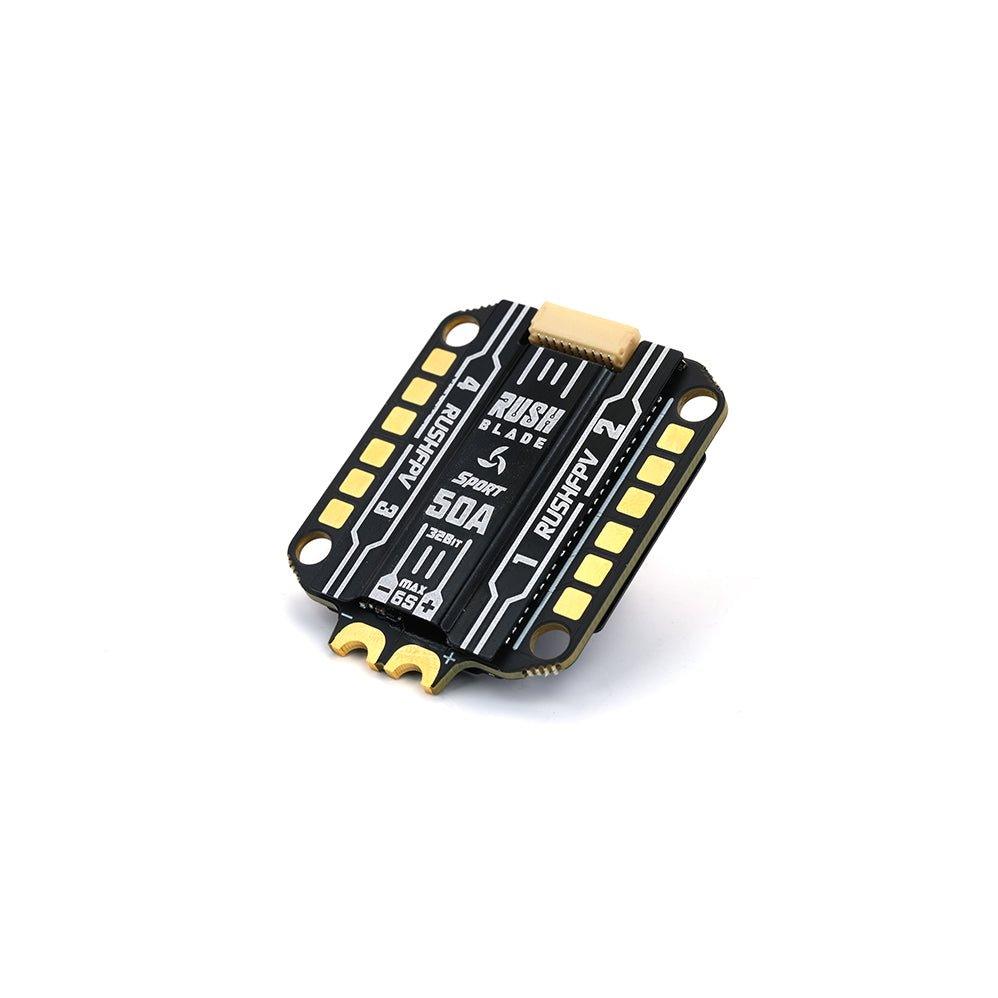

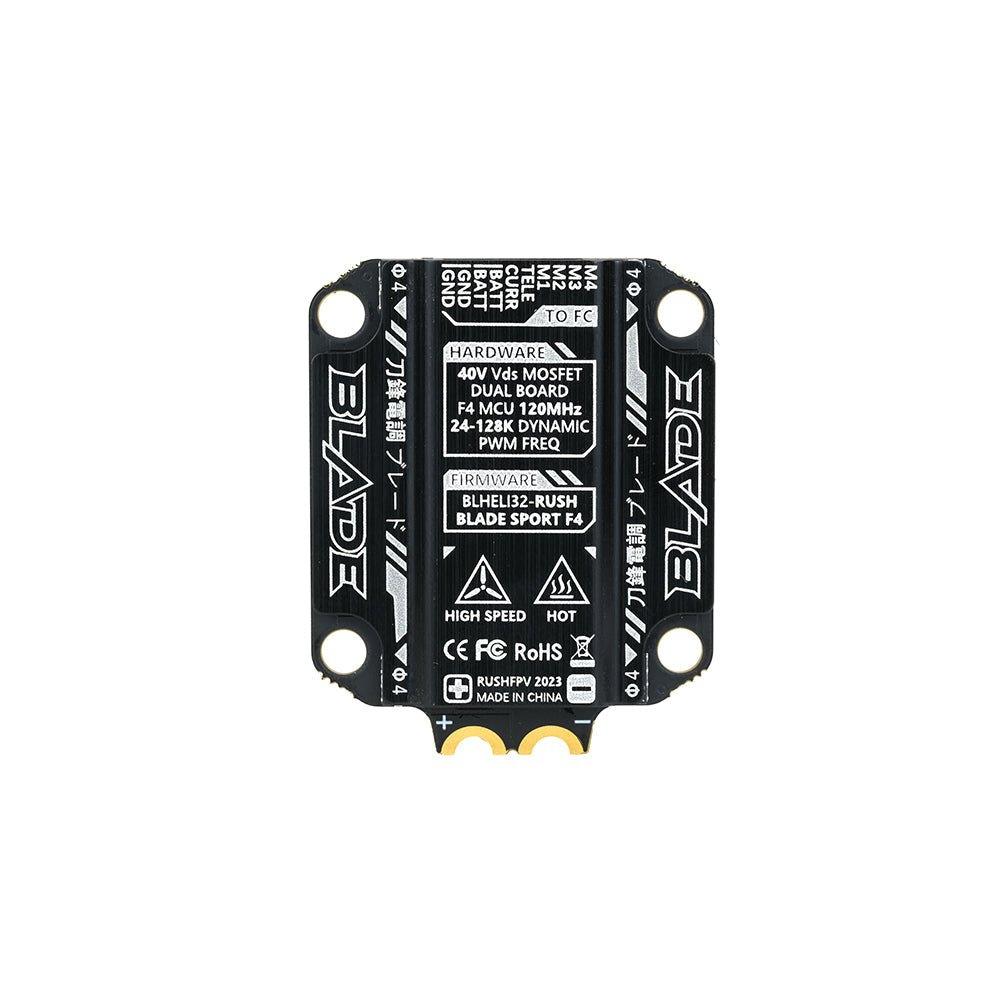

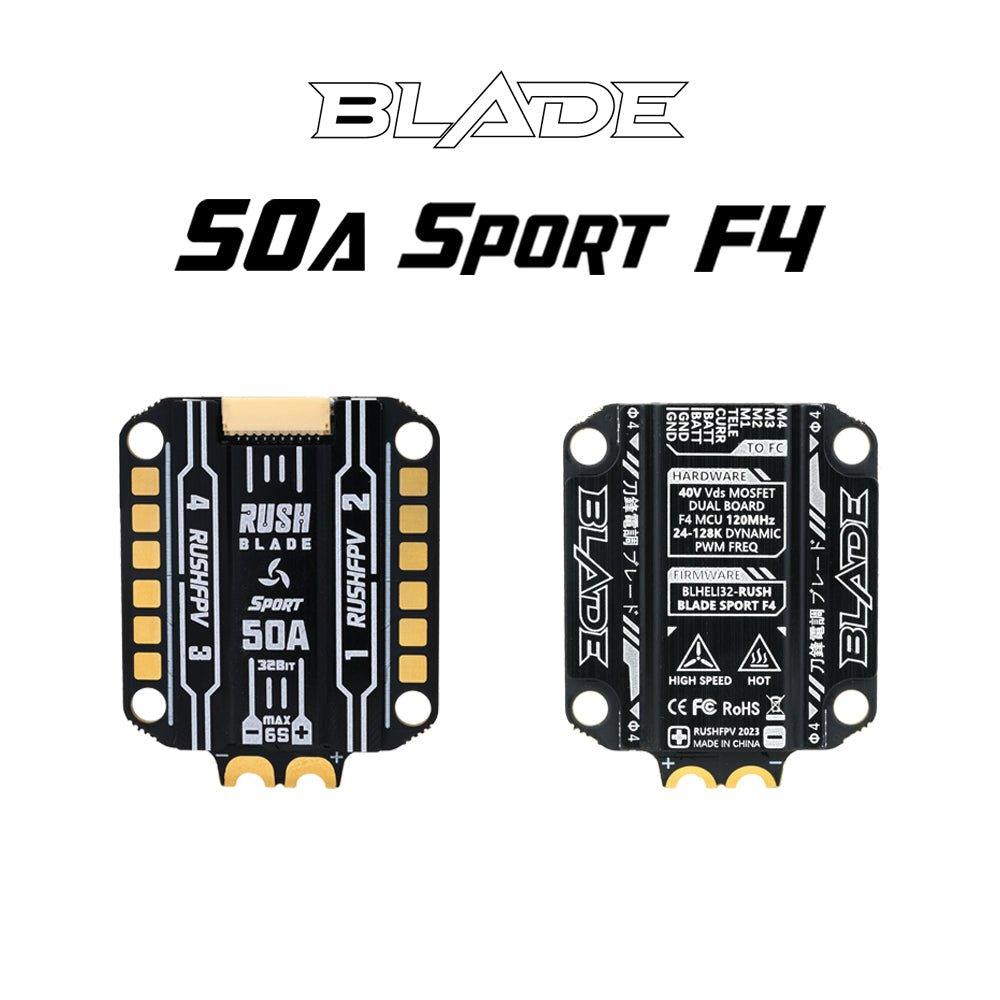

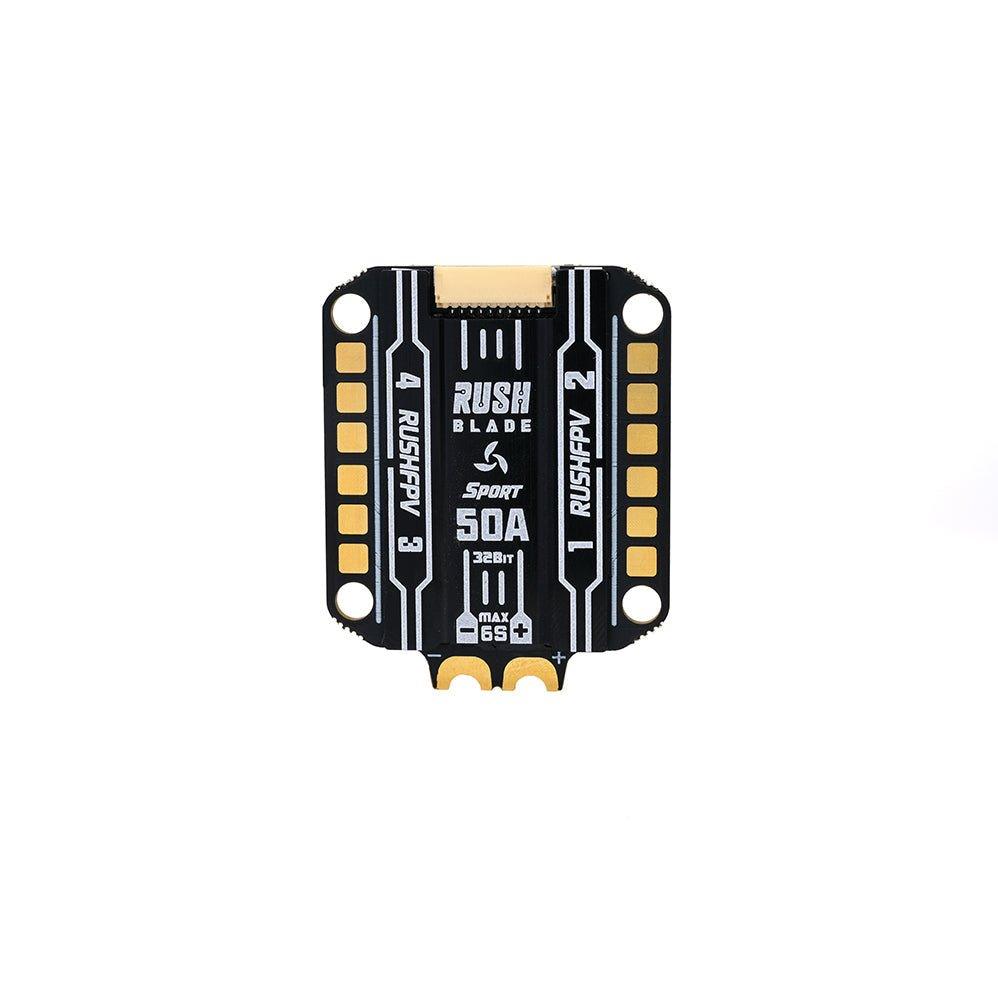

RUSHFPV Blade Sport 50A 30x30 F4 3-6S 4-in-1 24-128k ESC

WREKD ID: 98301
RUSHFPV Blade Sport 50A 30x30 F4 3-6S 4-in-1 24-128k ESC at WREKD Co.
RUSHFPV Blade Sport 50A 30x30 F4 3-6S 4-in-1 24-128k ESC at WREKD Co.
RUSHFPV Blade Sport 50A 30x30 F4 3-6S 4-in-1 24-128k ESC at WREKD Co.
RUSHFPV Blade Sport 50A 30x30 F4 3-6S 4-in-1 24-128k ESC at WREKD Co.
SAVE 5% OFF YOUR FIRST ORDER
Use discount code FIRSTLEGENDS at checkout.

EXCLUSIVE DISCOUNTS AVAILABLE
Military, First Responders & Students
Learn More

RUSHFPV Blade Sport 50A 30x30 F4 3-6S 4-in-1 24-128k ESC

WREKD ID: 98301

Regular price $62.99
/
  • In Stock
NOTE: This item is on backorder, which means it will be delivered as soon as we receive our next shipment from our supplier. This typically ranges from 1 to 3 weeks.

Earn 248 CaveCoin by purchasing this item.

or Sign Up to start earning on your next order.

  • Delivery Wednesday, April 24 to Friday, April 26
    FREE delivery on most orders over $99. 30 Day Return Policy.
    Ships from: WREKD Warehouse, Ohio, United States

About this item

The NEW 50A F4 Sport Edition ESC from RUSH

FEATURES

  • This device has a powerful Cortex M4 core 32-bit microprocessor for top-notch performance.
  • You can drive up to 128 kHz PWM frequency, which can automatically adjust to RPM for better control.
  • It has a voltage comparator to accurately detect desync, but this feature is only available on the EXTREME models.
  • The lightweight aluminum armor provides maximum protection and has a dual PCB design that separates power and signal circuits for more efficient operation.
  • It uses the BLHeli 32 firmware, which includes damped light mode for faster motor retardation.
  • You can use various pulse widths, including 1-2 ms, Oneshot125 (125-250 us), Oneshot42 (41.7-83.3 us), and Multishot (5-25 us).
  • The device supports Dshot signaling at any rate up to Dshot1200 and does not require throttle calibration as it detects the input signal automatically upon power-up.
  • It supports beacon functionality, where the ESC will start beeping after a given time of zero throttle. This can be very useful for finding a lost drone. (Note: CINEMA HV model does not include this feature.)

SPECIFICATIONS

  • Current: 50A
  • Max. Volt*: 40V
  • Battery: 3-6S LiPo
  • PWM Freq: 24-128K
  • LED Color: Blue
  • Weight: 16.2g
  • Size: 45 × 36.5 × 7.5mm
  • BL32 FW: Rush_Blade_Sport_F4
  • Max. Volt*: 40V

Note: *Max. Volt is the maximum withstand voltage of the system. For stable use, it is recommended that the battery voltage does not exceed 60%-70% of this voltage.

RUSH ESC COMPARISON

Model Sport F4 Extreme Cinema HV
Current 50A 60A 60A
Max. Volt* 40V 60V 60V
Battery 3-6S LiPo 3-6S LiPo 3-8S LiPo
PWM Freq 24-128K 24-48K 24-128K
LED Color Blue Green Red
Weight 16.2g 16.5g 16.5g
Size 45 × 36.5 × 7.5mm 45 × 36.5 × 7.5mm 45 × 36.5 × 7.5mm
BL32 FW Rush_Blade_Sport_F4 Rush_Blade_Extreme Rush_Blade_Cinema
Max. Volt* 40V 60V 60V

Note: *Max. Volt is the maximum withstand voltage of the system. For stable use, it is recommended that the battery voltage does not exceed 60%-70% of this voltage.
