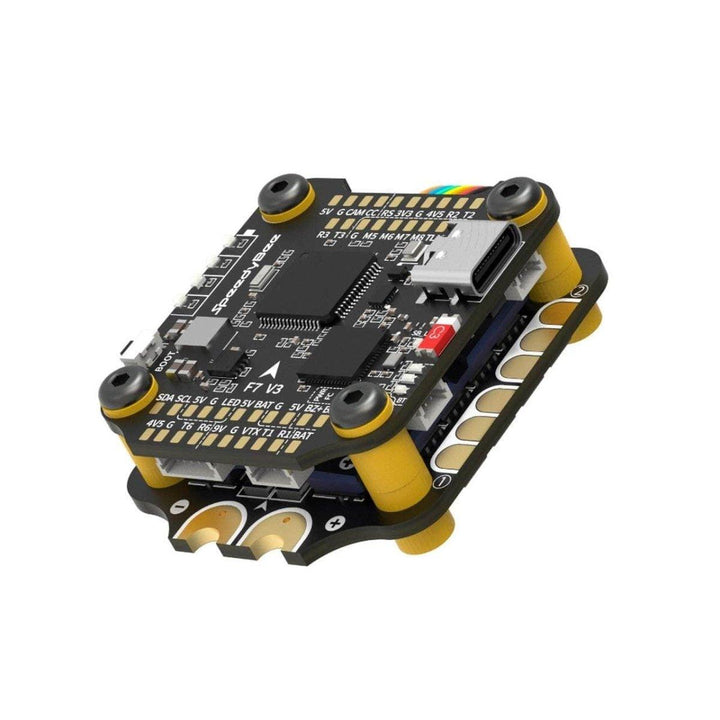

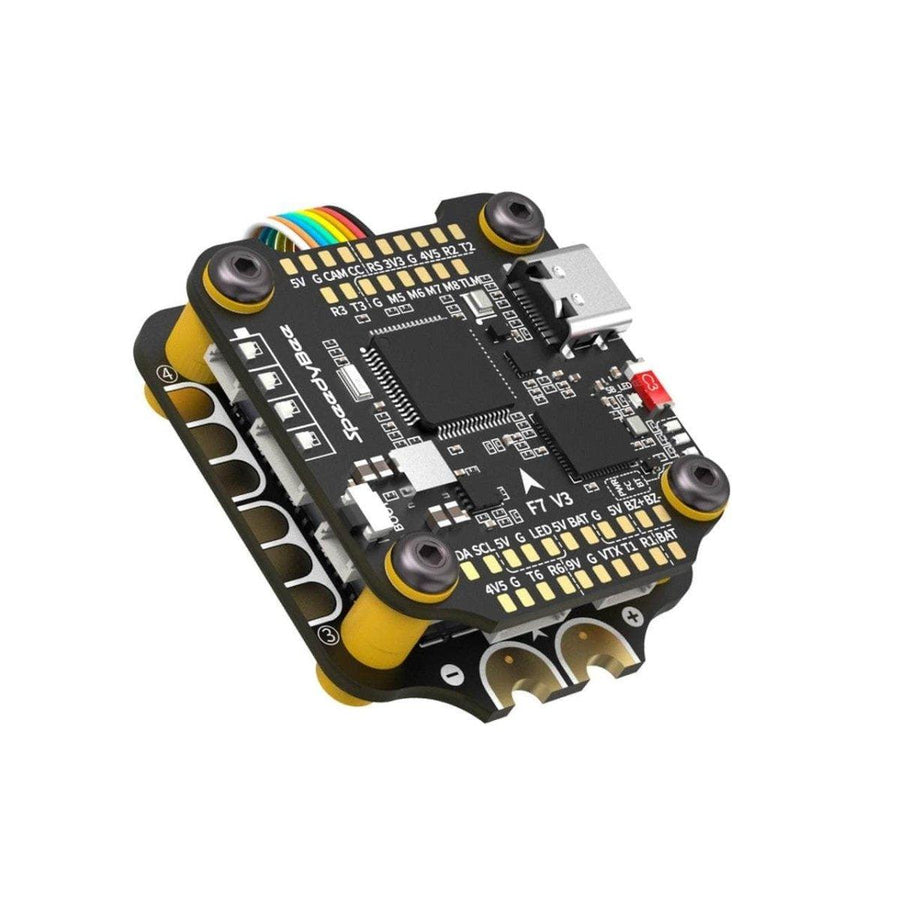

SpeedyBee V3 F722 3-6S 30x30 Stack/Combo (F722 FC / 50A 32bit 4in1 ESC)

$89.99

FREE delivery on most orders over $99.
Ships from: Florida Warehouse

Learn about our Shipping and Return Policy

Earn 89 CaveCoin by purchasing this item.

Log In or Sign Up to start earning on your next order.

About this item

The SpeedyBee V3 F722 3-6S 30x30 Stack/Combo (F722 FC / 50A 32bit 4in1 ESC) is a marvel to behold. The latest iteration of the SpeedyBee Stack, the V3 is packed with powerful new upgrades. Faster Wi-Fi upgrades, black box retrieval within a minute, supports up to 8 motors, and features soldering pads on one end, and pin connectors on the other in case soldering isn't your thing. The 50A 4in1 ESC is fitted with a high-quality CNC heat sink shield to significantly reduce the heat from your MOSFETs ensuring stable current flow at a high-throttle position. This ESC should have no issues with overheating. A great benefit in a stylish blue finish.

Check out our other 30x30 Stacks and all our Speedy Bee products!

Specifications

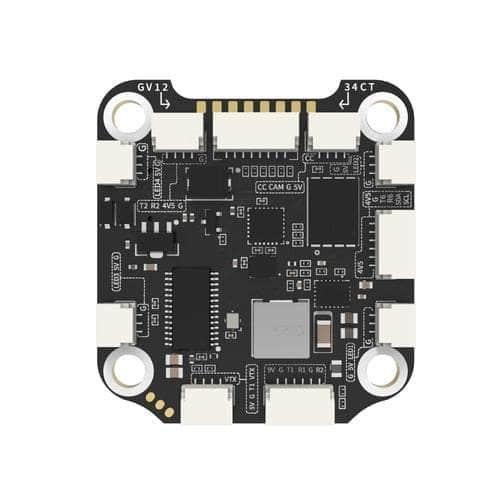

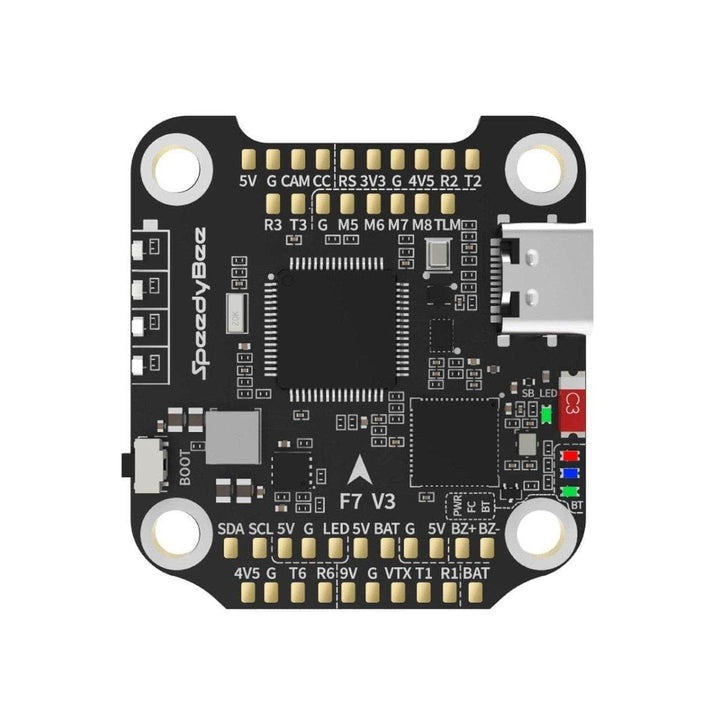

F722 2-6S Flight Controller

MCU: STM32F722
IMU: BMI270
USB: Type-C
Baro: BMP280 (I2C)
OSD: BetaFlight OSD w/ AT7456E chip
BLE Support, used for Flight Controller configuration
WiFi Support, used for data transfer, e.g firmware flashing, and Blackbox analysis.
DJI Air Unit plug: A full DJI Air Unit JST slot onboard
BlackBox: 500MB onboard data flash
BetaFlight Camera Control Pad: Yes
Power input: 3S - 6S Lipo
10 groups of 5V output, three +5V pads and 1 BZ+ pad (used for Buzzer) on front side, and 6 +5V output included in the connectors on bottom side. The total current load is 2A.
2 groups of 9V output, one +9V pad on front side and other included in a connector on bottom side. The total current load is 4A.
Supported. Designed for receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load.
Supported. Designed for 3.3V-input receivers. Up to 500mA current load.
ESC signal M1 - M4 on bottom side and M5-M8 on front side.
UART: 5 sets (UART1, UART2, UART3, UART4, UART6)
ESC Telemetry: UART UART4 RX
I2C: Supported. SDA & SCL pads on front side. Used for magnetometer, sonar, etc.
LED: Used for WS2812 LED controlled by Betaflight firmware.
Buzzer: BZ+ and BZ- pad used for 5V Buzzer
Boot button: Yes
RSSI input: Yes
SmartPort: Supported
Support Flight Controller Firmware: BetaFlight(Default), EMUFlight, INAV
Target: SPEEDYBEEF7V3
Mounting: 30.5x30.5mm, 4mm hole size
Dimension 41(L) x 38(W) x 8.1(H)mm
Weight 9g

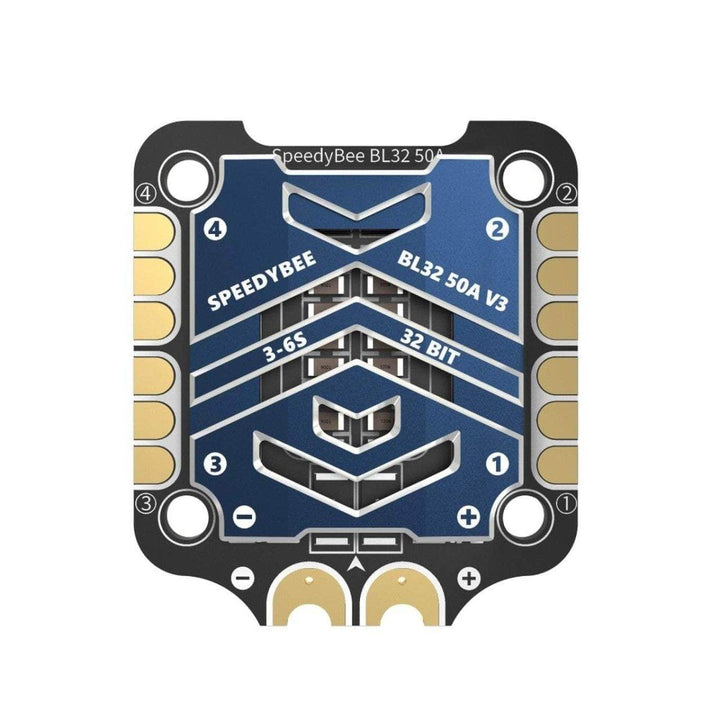

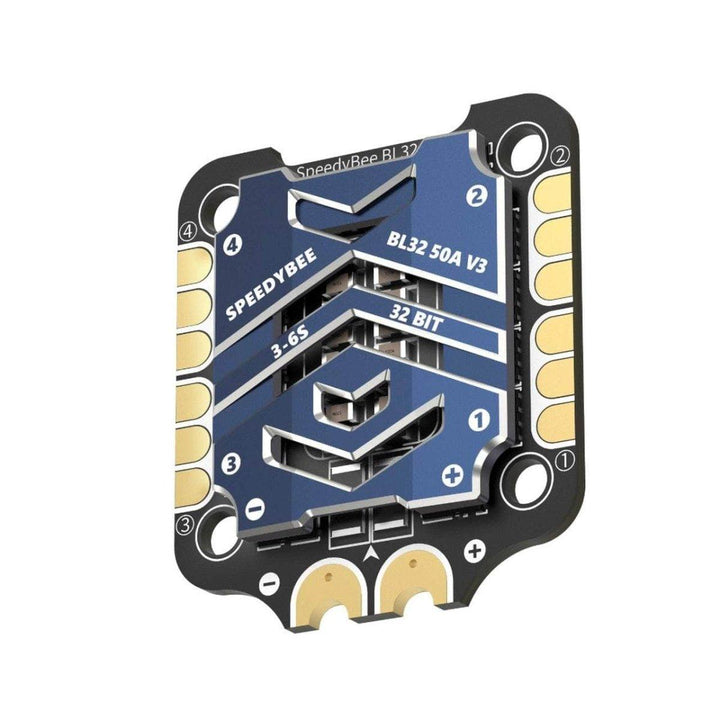

32Bit 50A 3-6S 4in1 ESC

Firmware: SpeedyBee BL32 50A
Continuous Current: 50Ax4
Burst Current: 55A(5S)
Power input: 3S - 6S LiPo
Power output: VBAT
Current Sensor: Supported (Scale=490 Offset=0)
Mounting: 30.5x0.5mm, 4mm hole size
Dimension: 45.6(L)x40(W)x8.8mm(H)
Weight: 19.2g with heat sink

Includes

1x SpeedyBee BL32 32bit 50A 3-6S 30x30 4in1 ESC

Wiring Diagram
