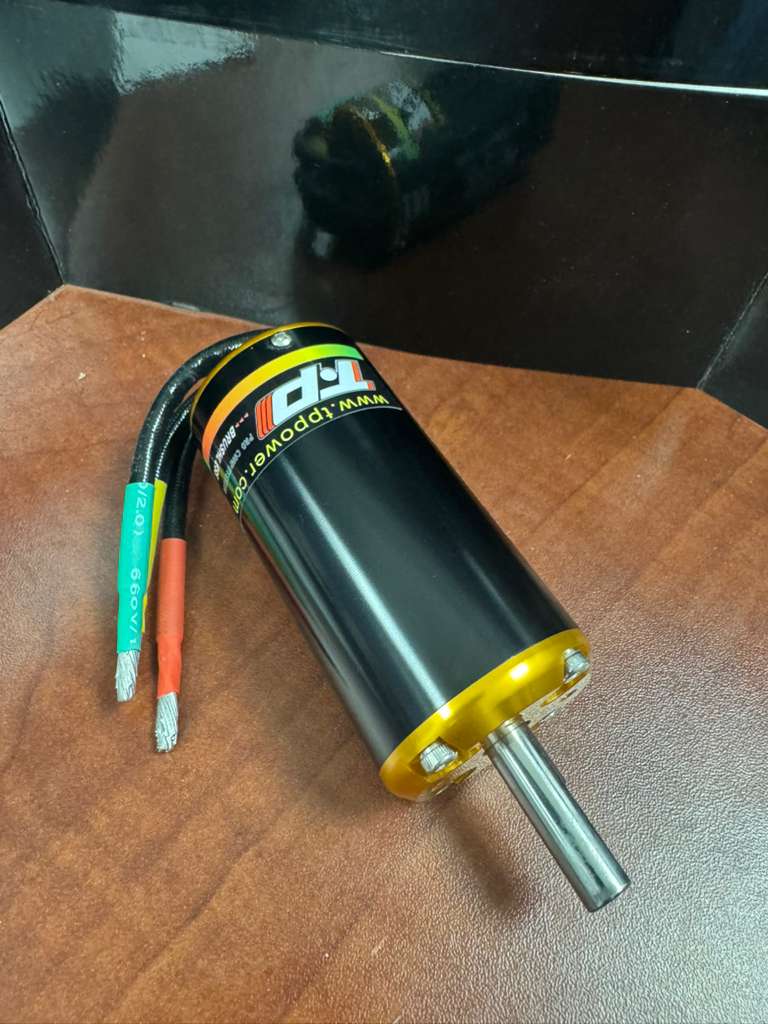

TP POWER 4050 SVM 2580 KV BRUSHLESS MOTOR UP TO 8S

TP POWER 4050 SVM 2580 KV BRUSHLESS MOTOR UP TO 8S

TP4050-SVM Series are the new competition 4-pole motors with more torque and power under high RPM design.

OPEN VENT DESIGN FOR BEST COOLING OPTIONS

KV: 2580

Winding: D

Max Current (A): 182

Max Voltage (V): 35.2

Continuous Power (W): 3000

Max Power (W) - Less than 10 seconds for safety: 6400

Max RPM -  Less than 10 seconds for safety: 91K

No-load current (A): 3.7

Internal Resistance (Ohm): 0.003461

Weight (g): 467

Shaft diameter: 8mm

Output Shaft Length: 18mm for 5mm diameter, 24mm for 8mm diameter

Diameter x length (mm): 40 x 82

Bolt pattern: 4-M4-25

Poles: 4 pole
