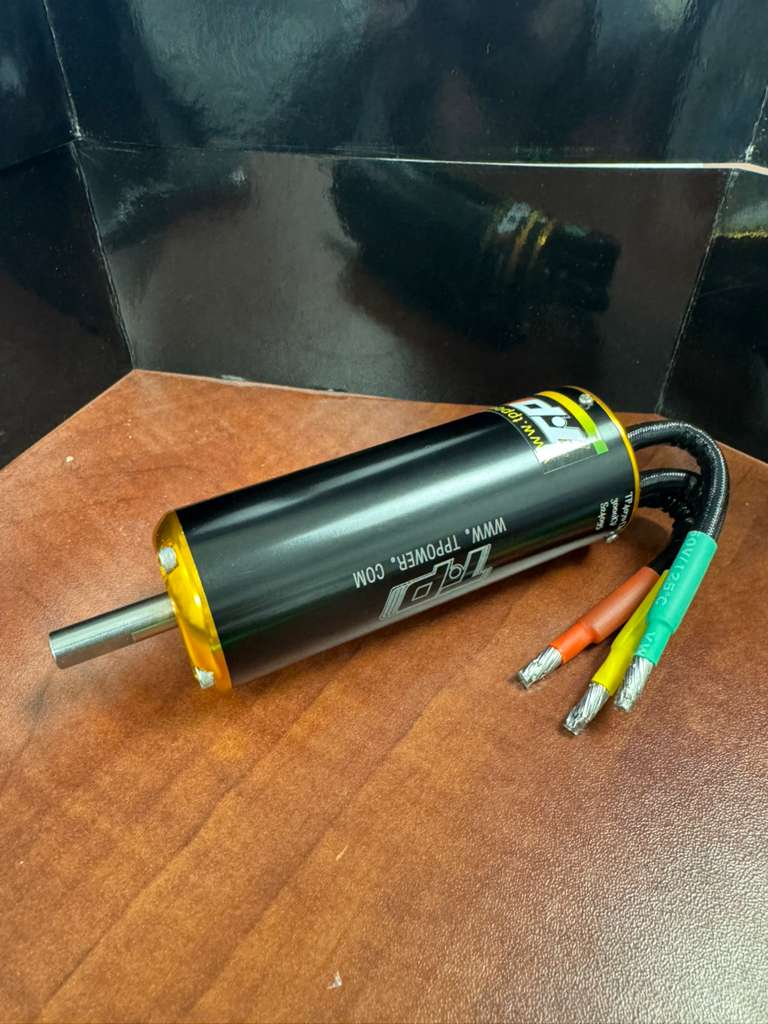

TP POWER 4070CM 3000KV Brushless Motor ( up to 6s ) 8MM

TP POWER 4070CM 3000KV Brushless Motor ( up to 6s ) 8MM

This model is specially winded for 4-6S application.

TP Power motors are made of the best materials that are available, and have high efficiencies (>90%) required for the most demanding applications.The TP 4070-CM Series is our most powerful 40 series up to date, with 75K max burst RPM.

Parameters:

Can: Smooth

KV: 3000

Max Amps (A): 380

Max Volt (V): 23 ( 4-6s) LIPO

Internal Resistance (Ohm): 0.021

No-load Current (A): 10.9 at 7.5V

Shaft Diameter (mm): 8MM & 5MM

Diameter X Length (mm): 40 X 107

Output Shaft Length (mm): 18

Bolt Pattern: 4 - M4 - 25mm

Weight: 640 g

Pole: 4-pole
