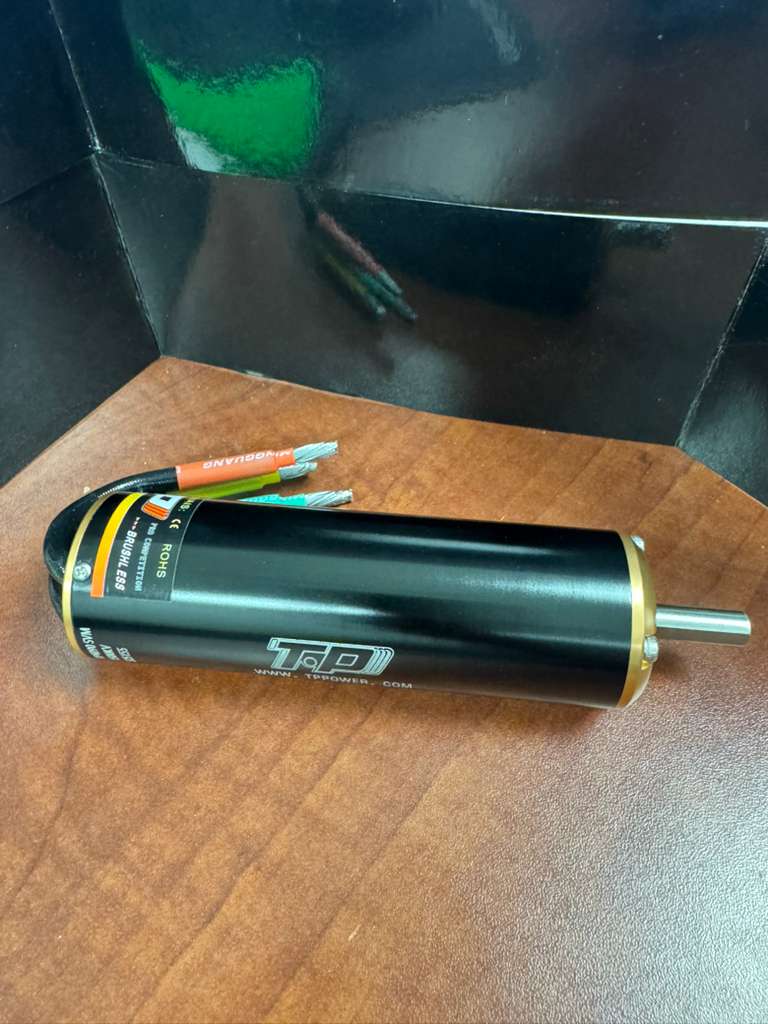

TP POWER 4090CM 1812KV BRUSHLESS MOTORS 8MM SHAFT

TP POWER USA 4090-CM 1812-KV BRUSHLESS MOTORS 8MM SHAFT

The TP 4090-CM series is our popular series for high-power and high-speed application, with the max power of 13000W and max RPM of 55K!

Parameters:

Can: Smooth

Wind: D

KV: 1812

Max Amps (A): 420

Max Volt (V): 8S

Continuous Power (W): 7000

Max Power (W): 13000

Max RPM: 55K

Internal Resistance (Ohm): 0.0028

No-load Current (A): 4.0

Shaft Diameter (mm): 8

Shaft Length (mm): 24

Diameter X Length (mm): 40X127

Mounting Pattern: 4 sets of M3 & M4 screw holes on the same front plate; with 25mm diagonal distance.

Weight: 820g

Pole: 4
