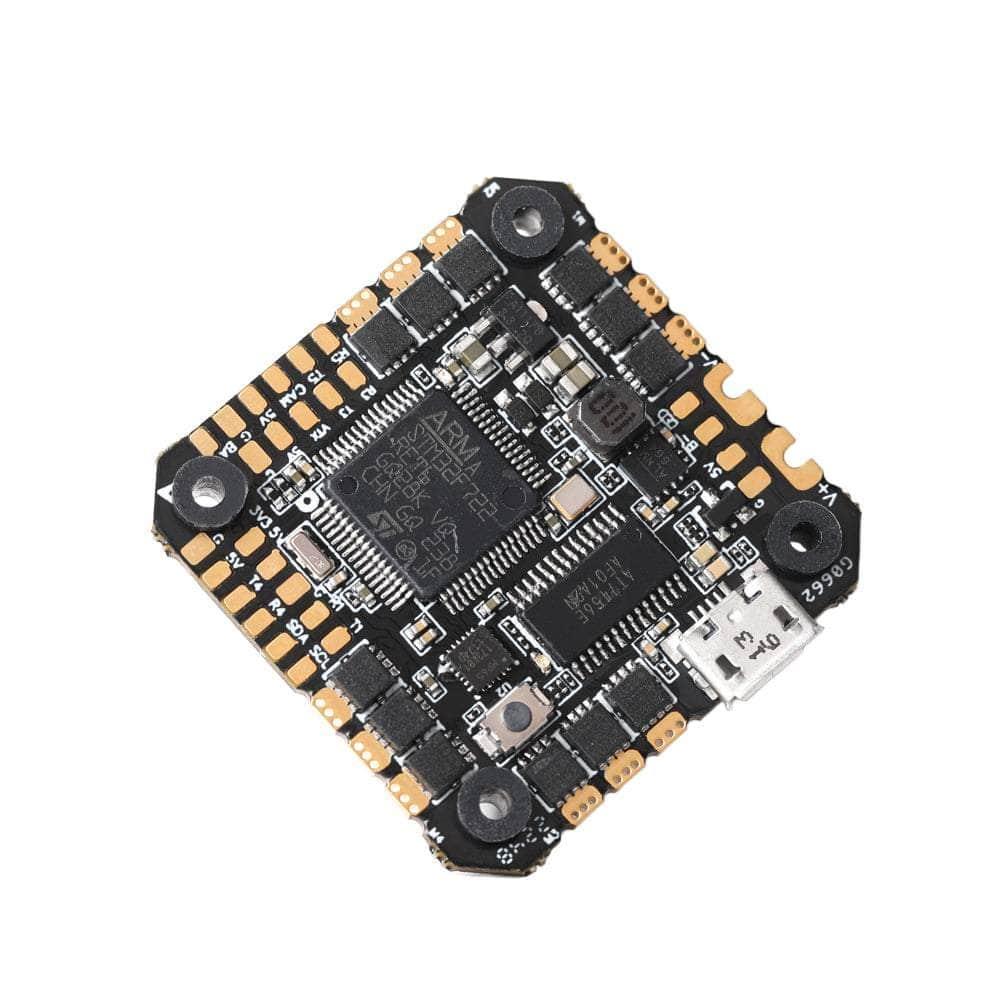

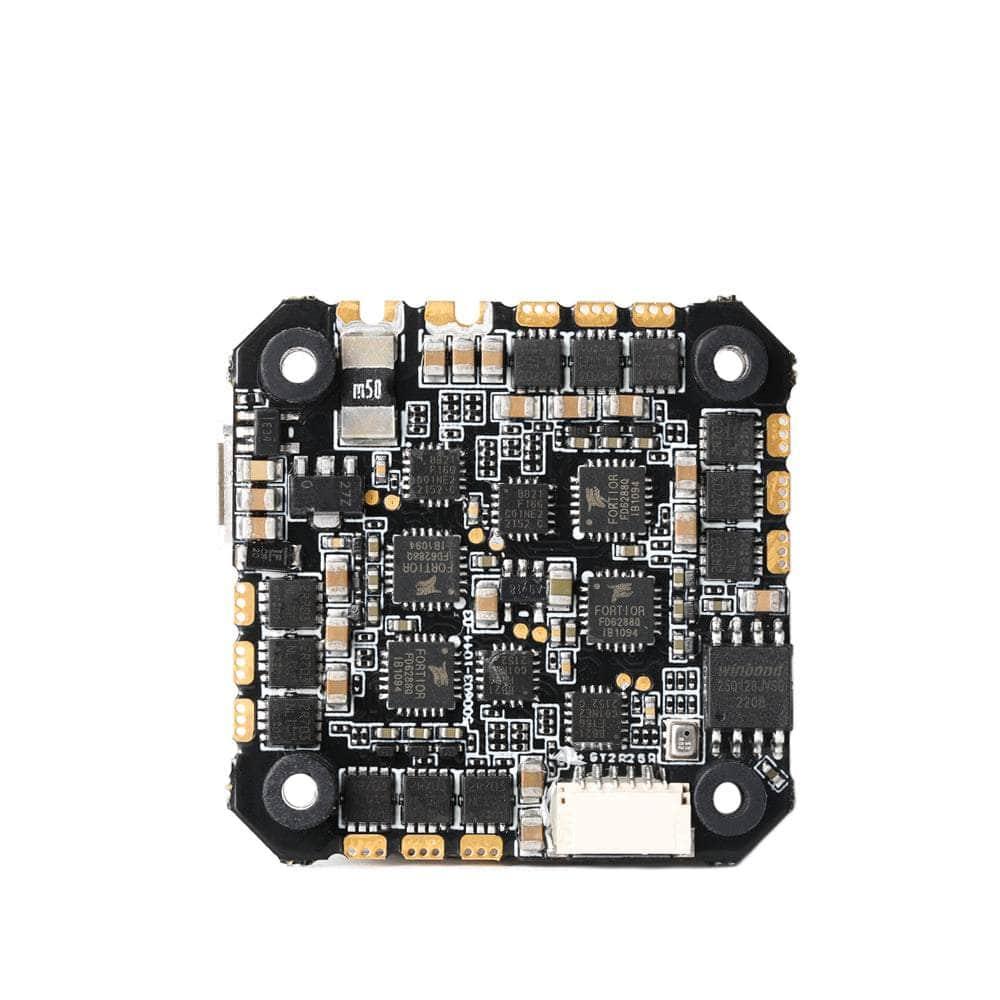

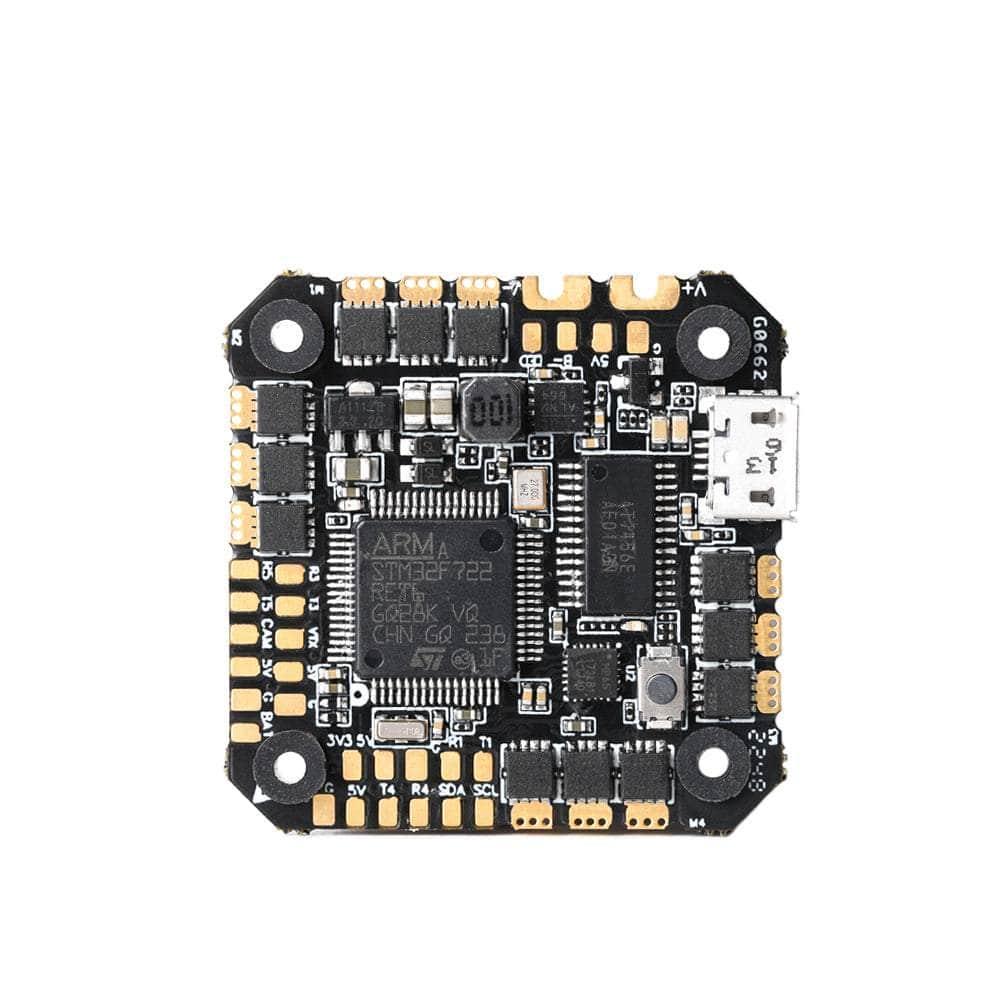

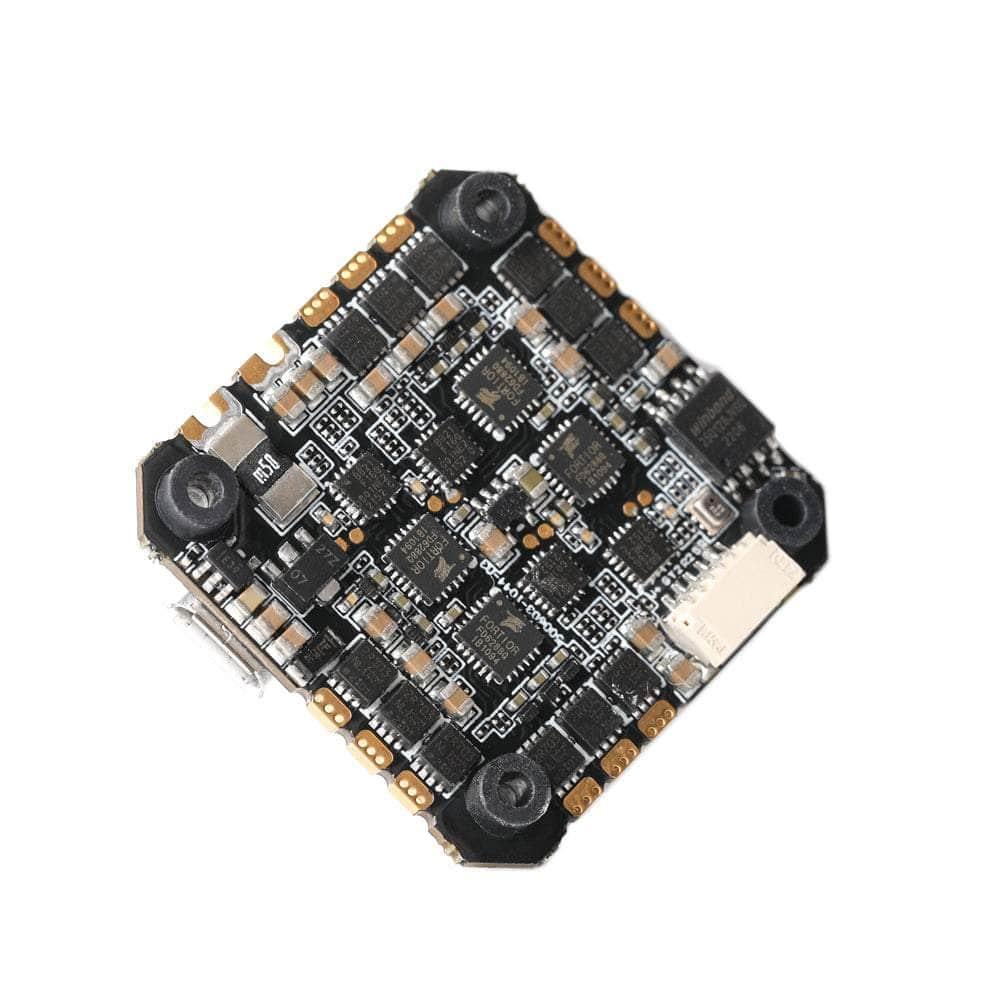

T-Motor F7 3-6S AIO Whoop/Toothpick Flight Controller w/ 35A 8Bit 4in1 ESC

T-Motor F7 3-6S AIO Whoop/Toothpick Flight Controller w/ 35A 8Bit 4in1 ESC at WREKD Co.
T-Motor F7 3-6S AIO Whoop/Toothpick Flight Controller w/ 35A 8Bit 4in1 ESC at WREKD Co.
T-Motor F7 3-6S AIO Whoop/Toothpick Flight Controller w/ 35A 8Bit 4in1 ESC at WREKD Co.
T-Motor F7 3-6S AIO Whoop/Toothpick Flight Controller w/ 35A 8Bit 4in1 ESC at WREKD Co.
T-Motor F7 3-6S AIO Whoop/Toothpick Flight Controller w/ 35A 8Bit 4in1 ESC at WREKD Co.
T-Motor F7 3-6S AIO Whoop/Toothpick Flight Controller w/ 35A 8Bit 4in1 ESC at WREKD Co.
T-Motor F7 3-6S AIO Whoop/Toothpick Flight Controller w/ 35A 8Bit 4in1 ESC at WREKD Co.
T-Motor F7 3-6S AIO Whoop/Toothpick Flight Controller w/ 35A 8Bit 4in1 ESC at WREKD Co.
SAVE 5% OFF YOUR FIRST ORDER
Use discount code FIRSTLEGENDS at checkout.

EXCLUSIVE DISCOUNTS AVAILABLE
Military, First Responders & Students
Learn More
/
NOTE: This item is on pre-order. Estimated to ship in 0 to 1 days.

T-Motor F7 3-6S AIO Whoop/Toothpick Flight Controller w/ 35A 8Bit 4in1 ESC

$124.99

Earn 124 CaveCoin by purchasing this item.

or Sign Up to start earning on your next order.

About this item

This reliable flight controller with built-in 35A 8Bit 4in1 ESC designed by T-Motor offers efficient power for your Whoop/Toothpick. The F7 provides a 3-6S power supply and maintains fast and precise data processing for smoother transitions in flight. Enjoy improved accuracy and enhanced safety with this quality made AIO setup.

Check out all our Whoop/AIO Flight Controllers and all our T-Motor products!

Features

  • Integrated Barometer
  • HD VTX Socket
  • The onboard ESC works with Bluejay & BLHeli_S ESC firmware
  • 16MB of Black Box space
  • A quality MPU series gyroscope for better noise reduction & robustness

Specifications

  • MCU: STM32F722
  • Gyro: MPU6500
  • Barometer: BMP280
  • OSD: AT7456&HD
  • Black box: 16MB
  • BEC: 5V/1.5A
  • Input voltage: 3-6S
  • Continuous current: 35A
  • Peak current: 40A
  • ESC firmware: BLS\Bluejay
  • Size: 39x39mm
  • Mounting hole: 25.5x25.5/φ3mm
  • Supports HD and Analog
  • Recommendation: P1804/F2004/F2203.5

Includes

  • 1x T-Motor F7 3-6S AIO Whoop/Toothpick Flight Controller w/ 35A 8Bit 4in1 ESC

Wiring Diagram
