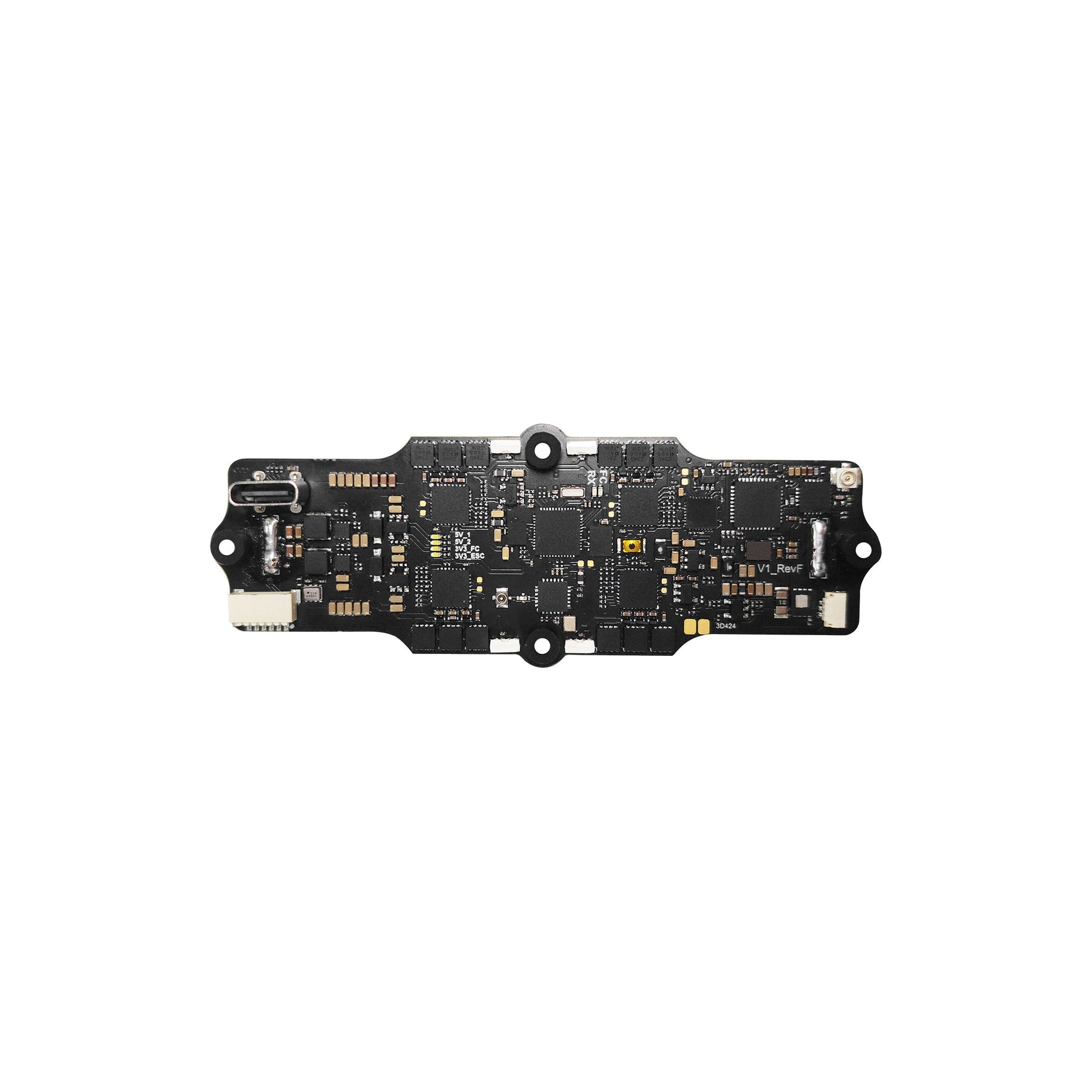

FIRSTLEGENDS at checkout.The NewBeeDrone LionBee Long Range ELRS 2.4 AIO is engineered specifically for 1S micro long-range FPV—a true breakthrough in ultra-light endurance drone design. Built around a high-performance AT32F435 288MHz MCU, ICM-42688 gyro, custom AM32 ESC, and the Smart-Max 800mW VTX, it delivers high efficiency, stable long-distance control, and excellent low-voltage performance—perfectly optimized for 18650-powered long-range missions.

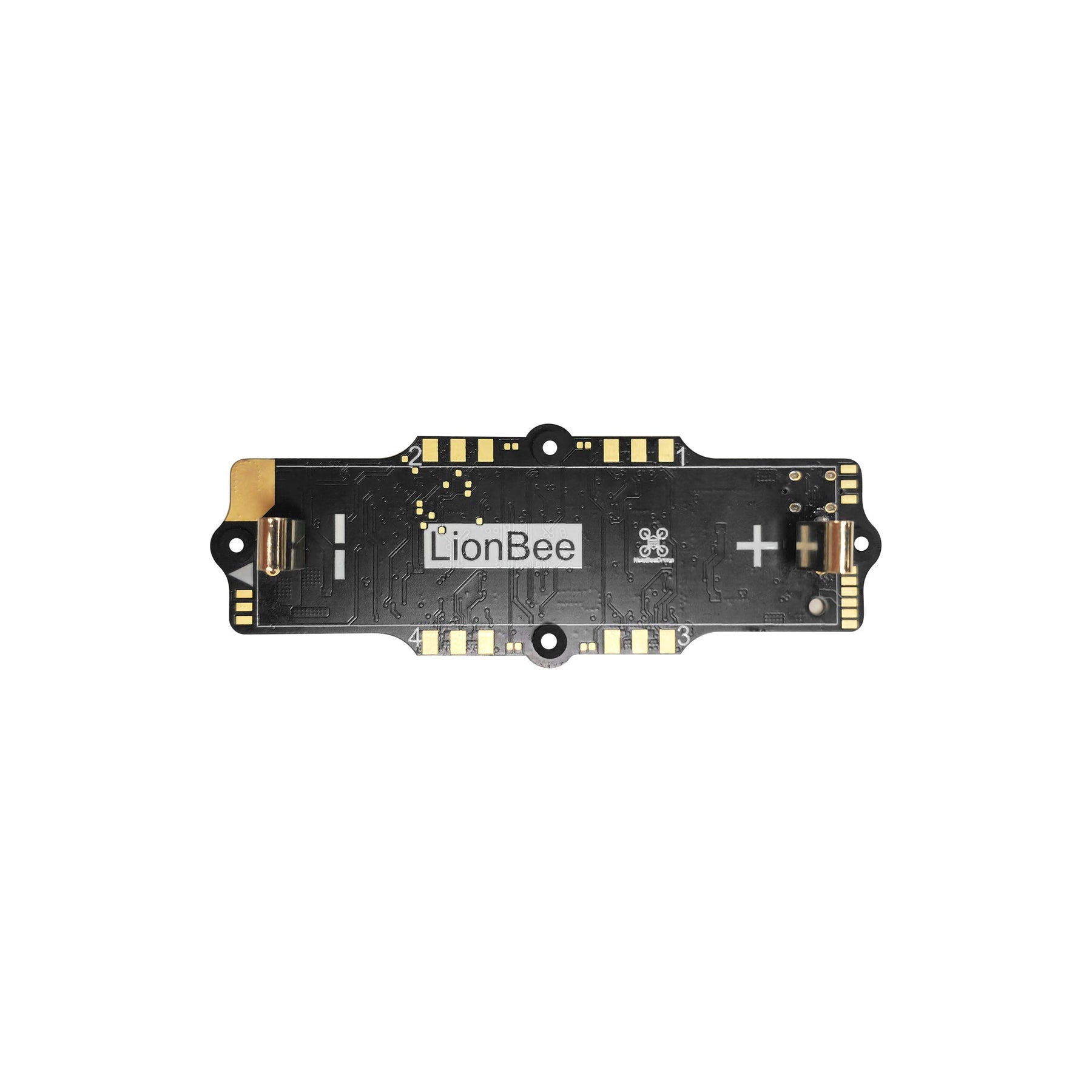

A custom 0.5mm high-current brass battery plate replaces unreliable spring contacts, ensuring clean, low-resistance power delivery even under heavy load. The extended 25.5 × 82mm AIO layout minimizes electrical noise, shortens high-current paths, and enhances overall flight stability.
With full reverse-polarity protection, the LionBee AIO prevents damage and ensures that accidentally inserting the 18650 battery backward will not damage the FC, ESC, PA, or other electronic components—an essential safeguard for field operation. The redesigned modular replaceable battery chamber features factory-soldered brass terminals and allows quick replacement if damaged during impact.
Recommended Parts to build up the LionBee Drone
Recommended battery: NewBeeDrone Nitro Nectar Gold 3000mAh 1S Tabless 18650 Battery – 2 Pack
Nectar Injector Cylindro Charger:NewBeeDrone Nectar Injector Cylindro Charger – Dual-Slot USB-C Charger for 18650/21700 & NiMH/NiCD
Sub BetaFlight github page: Link
AM32 Firmware: LINK
Betaflight firmware: LINK
LionBee Hardware Schematic: LINK
3D Print file: LINK
Structural-integrated FC + 18650 battery chamber architecture
Custom 0.5mm brass high-current conduction system
World’s first 1S 32-bit ESC MCU
AT32F435 288MHz high-performance FC processor

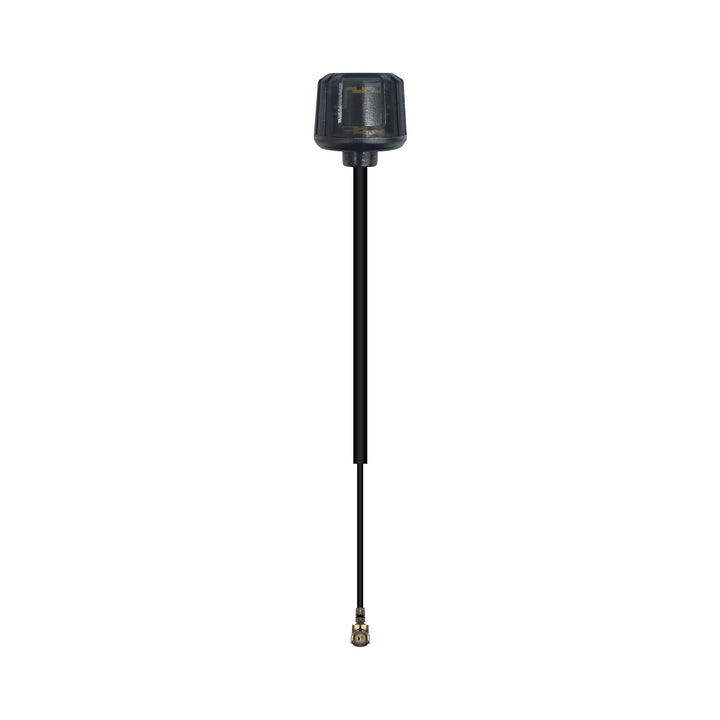

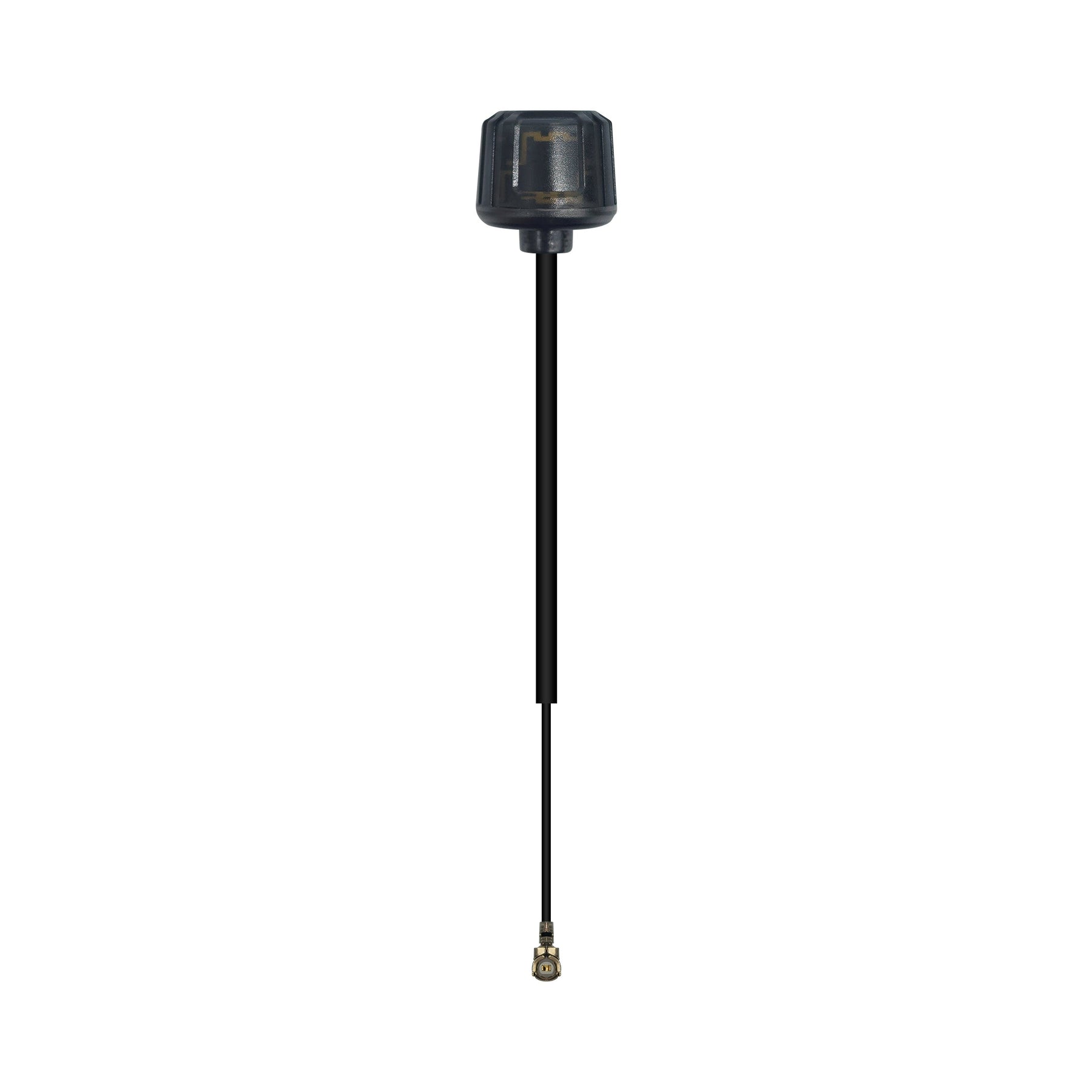

800mW Smart-Max VTX with adaptive thermal control

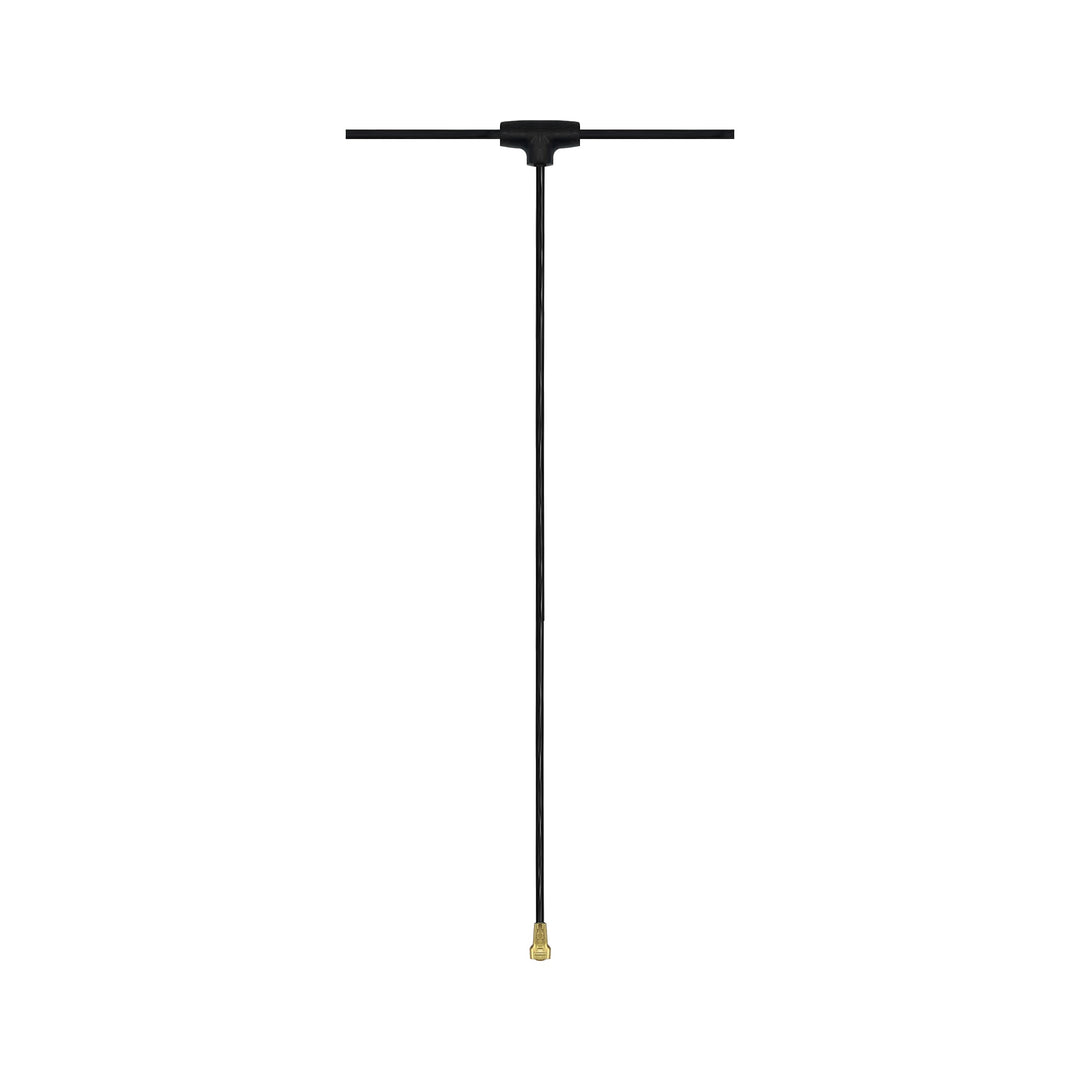

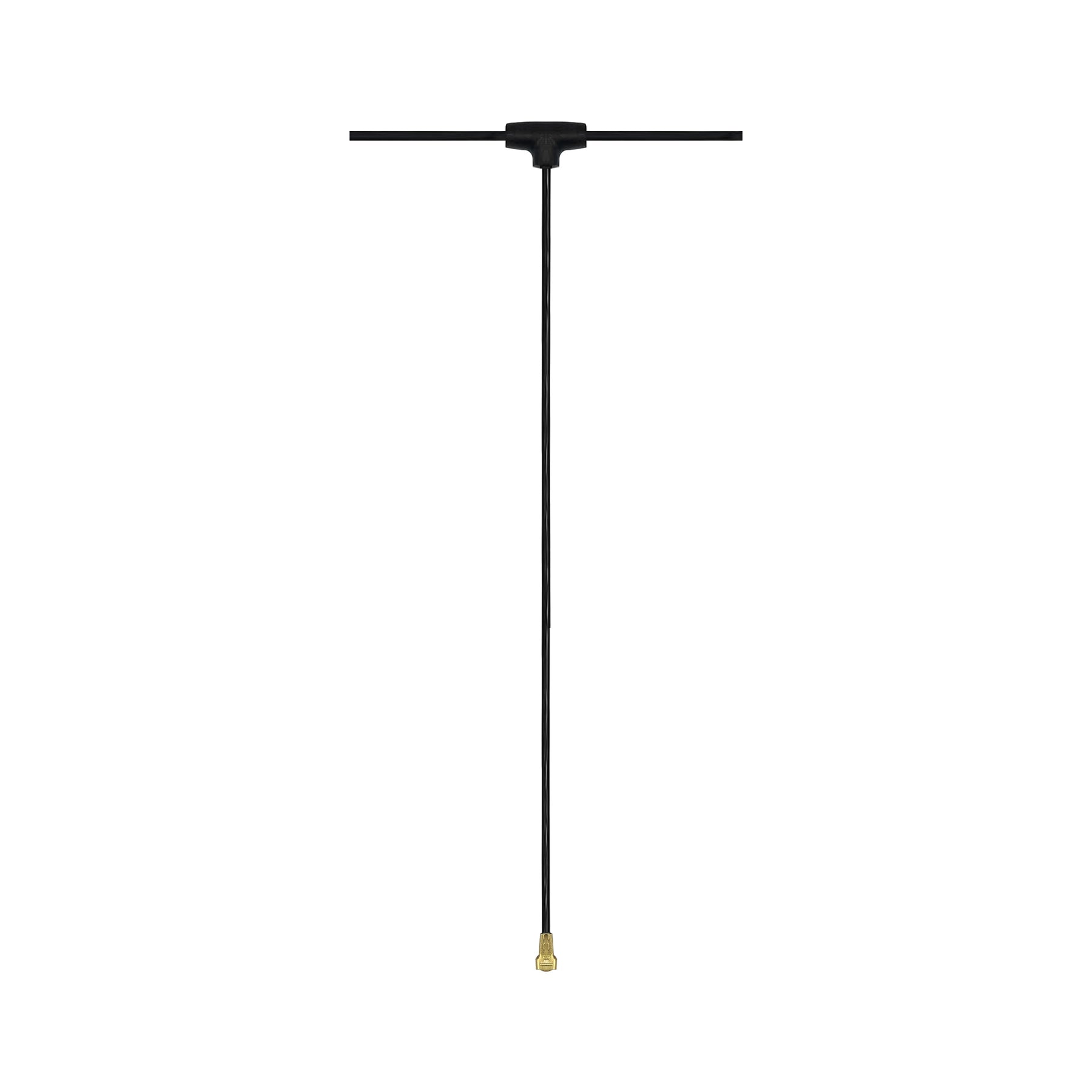

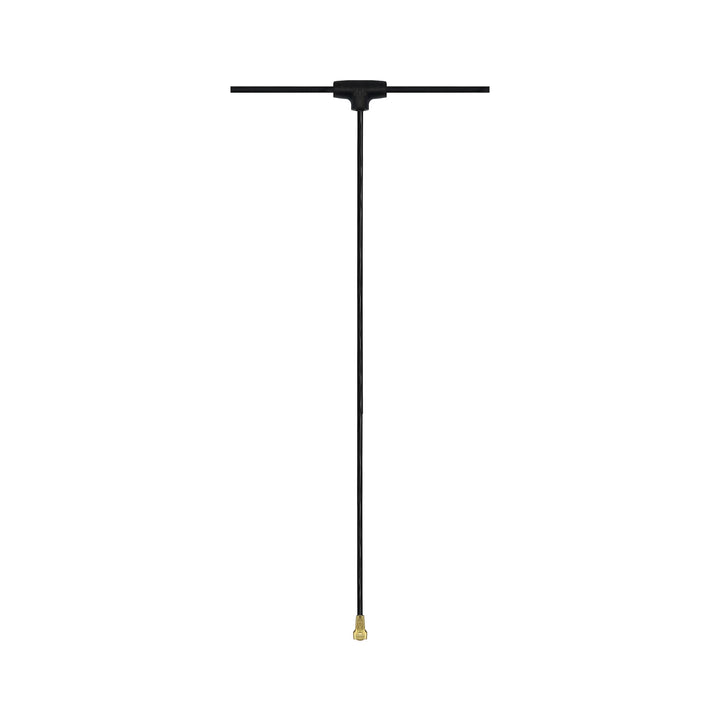

Built-in SPI ExpressLRS receiver with customized firmware support
Full reverse-polarity protection (battery inserted backward will not cause damage)

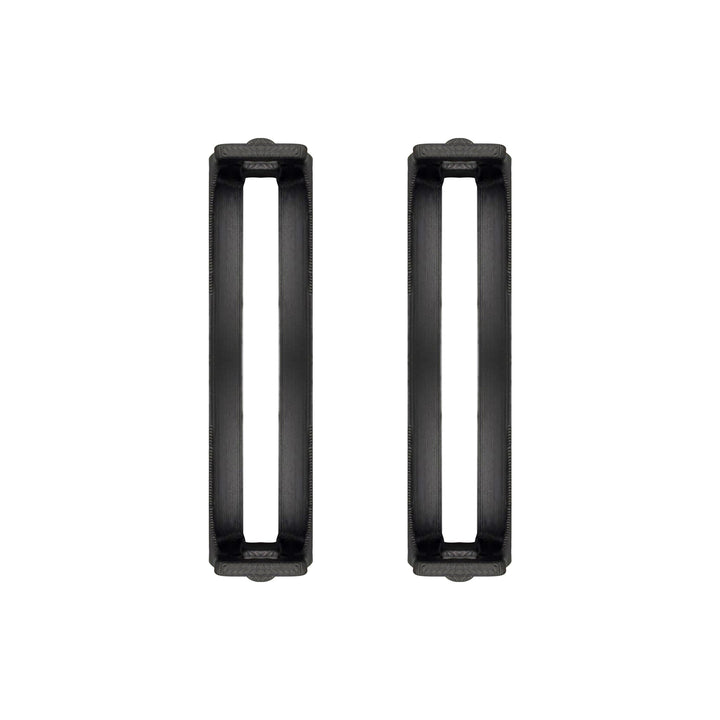

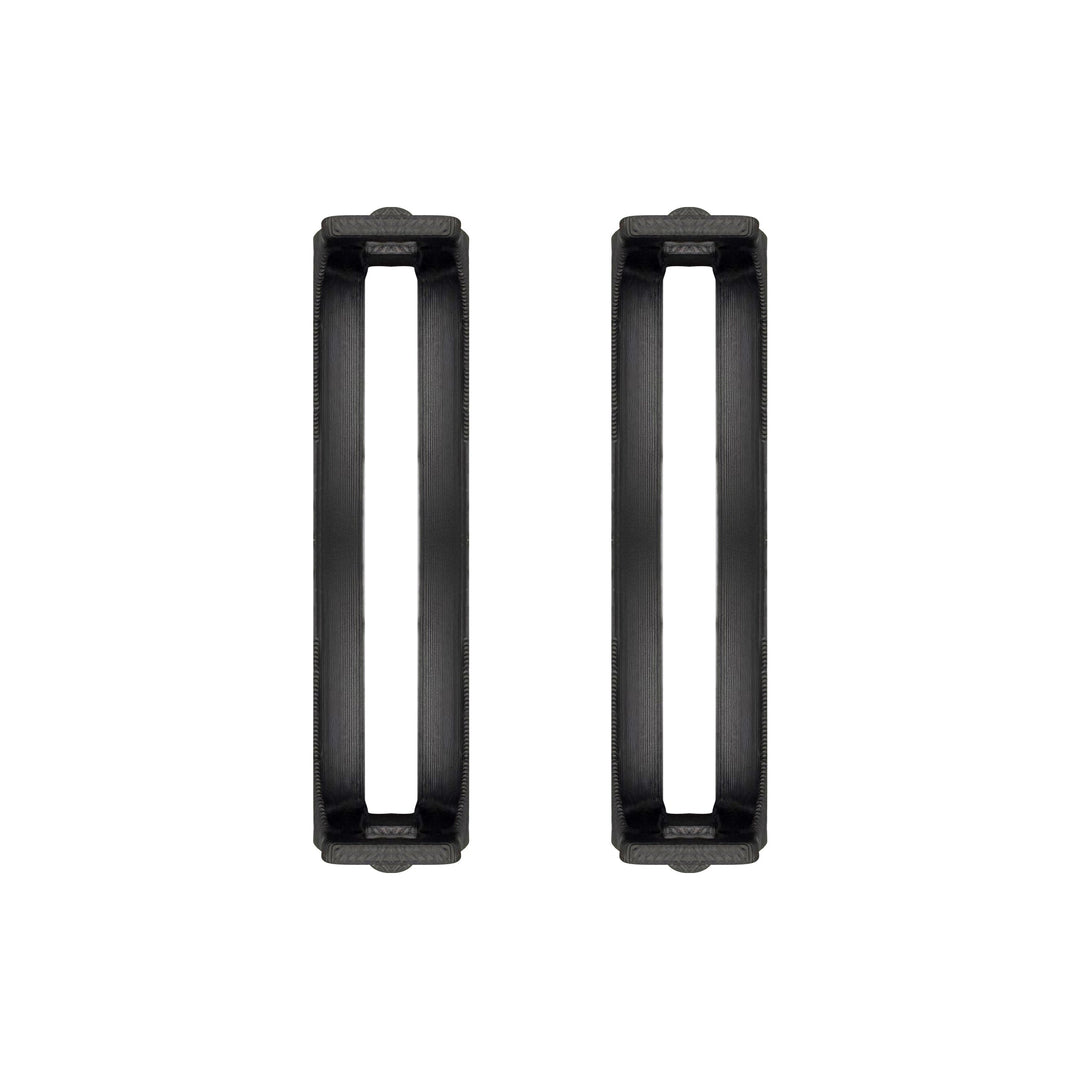

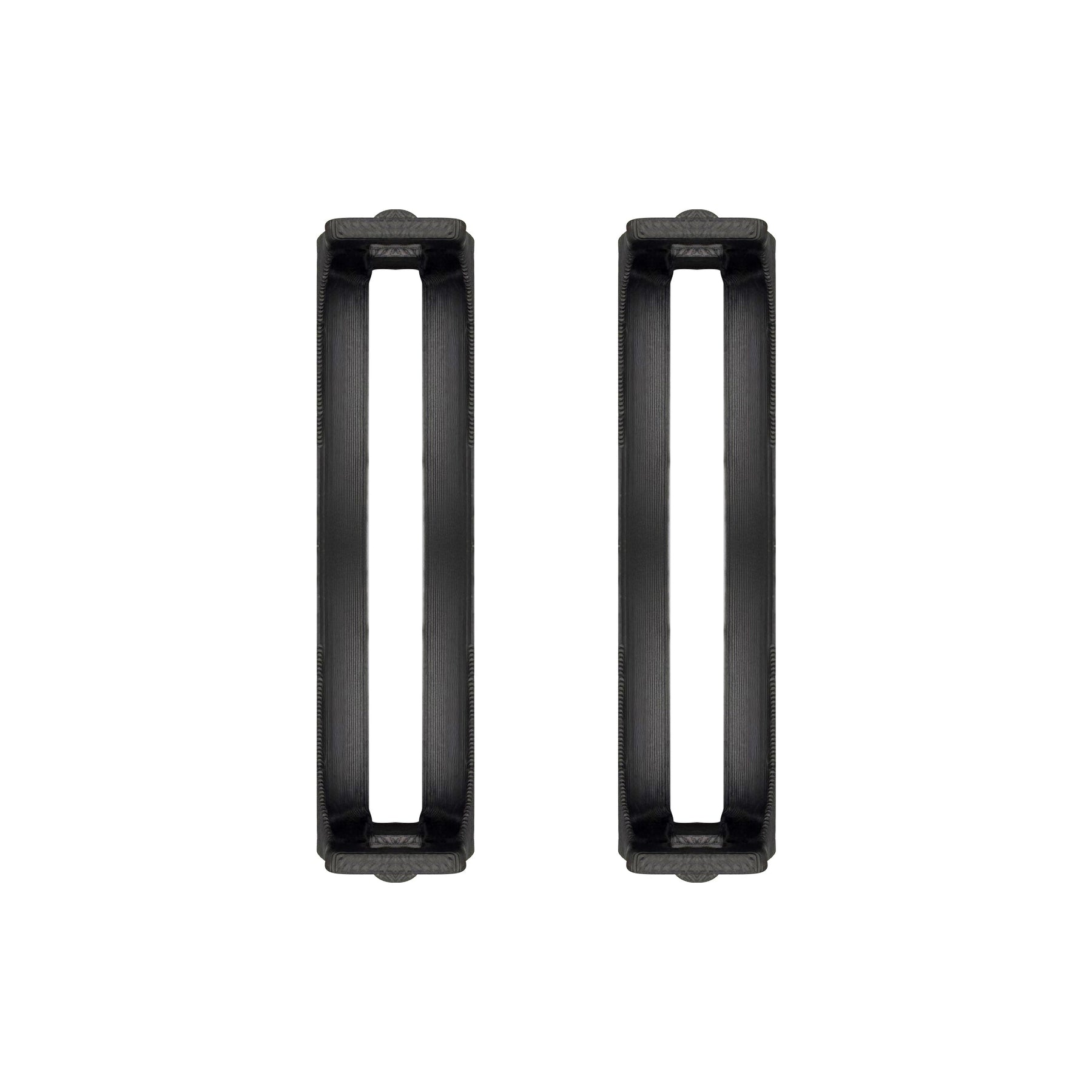

Modular, replaceable 18650 battery chamber with factory-soldered brass terminals
Ideal for long-range exploration, testing, and R&D customization
