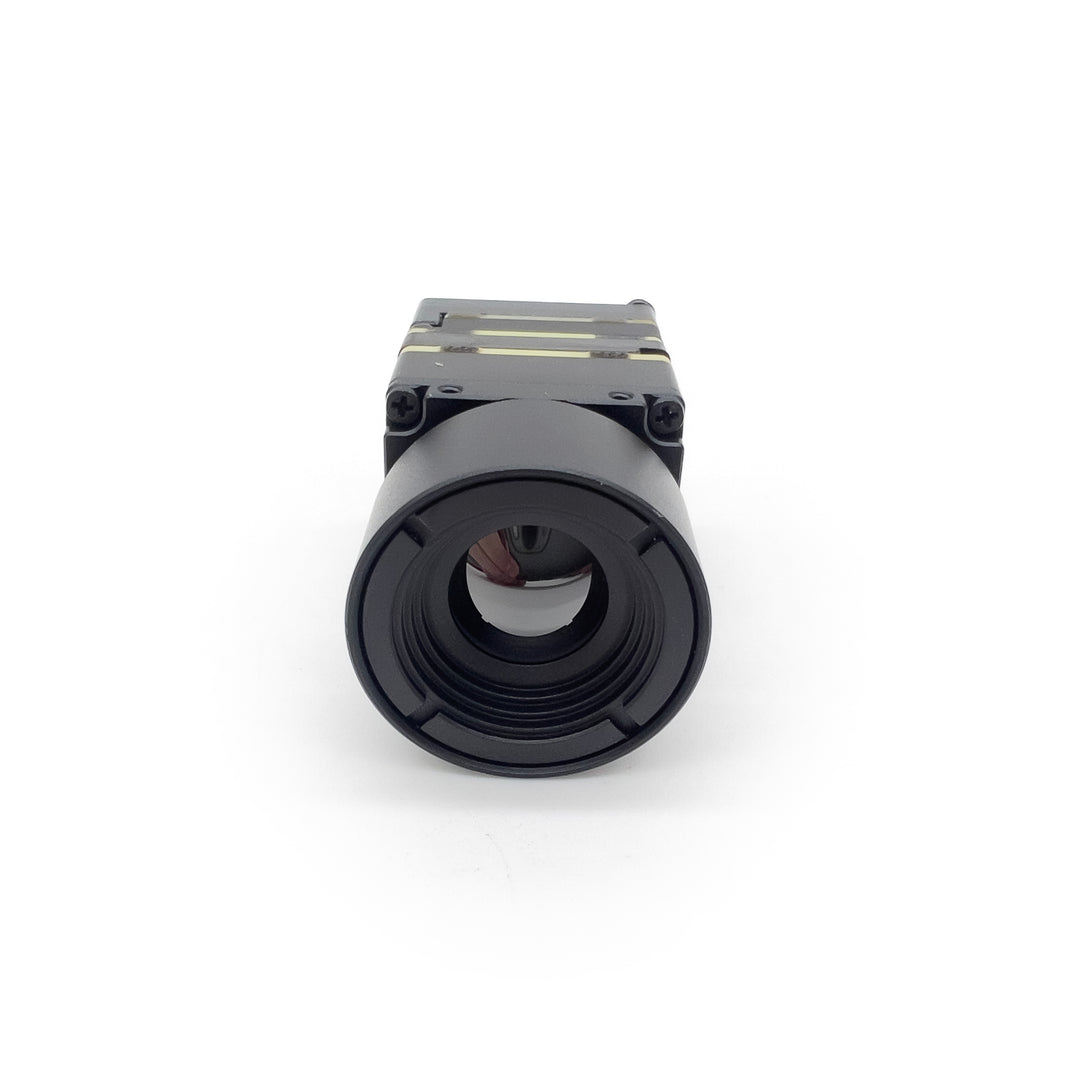

AxisFlying Thermal Imaging Camera - 640×512 CVBS Analog FPV Camera

Professional-grade thermal imaging camera designed for FPV drones. The TC640 features a high-resolution 640×512 vanadium oxide uncooled infrared detector, delivering exceptional thermal imaging performance in a compact, lightweight package.

Perfect for search and rescue operations, wildlife observation, building inspections, and professional FPV applications requiring thermal vision capabilities.

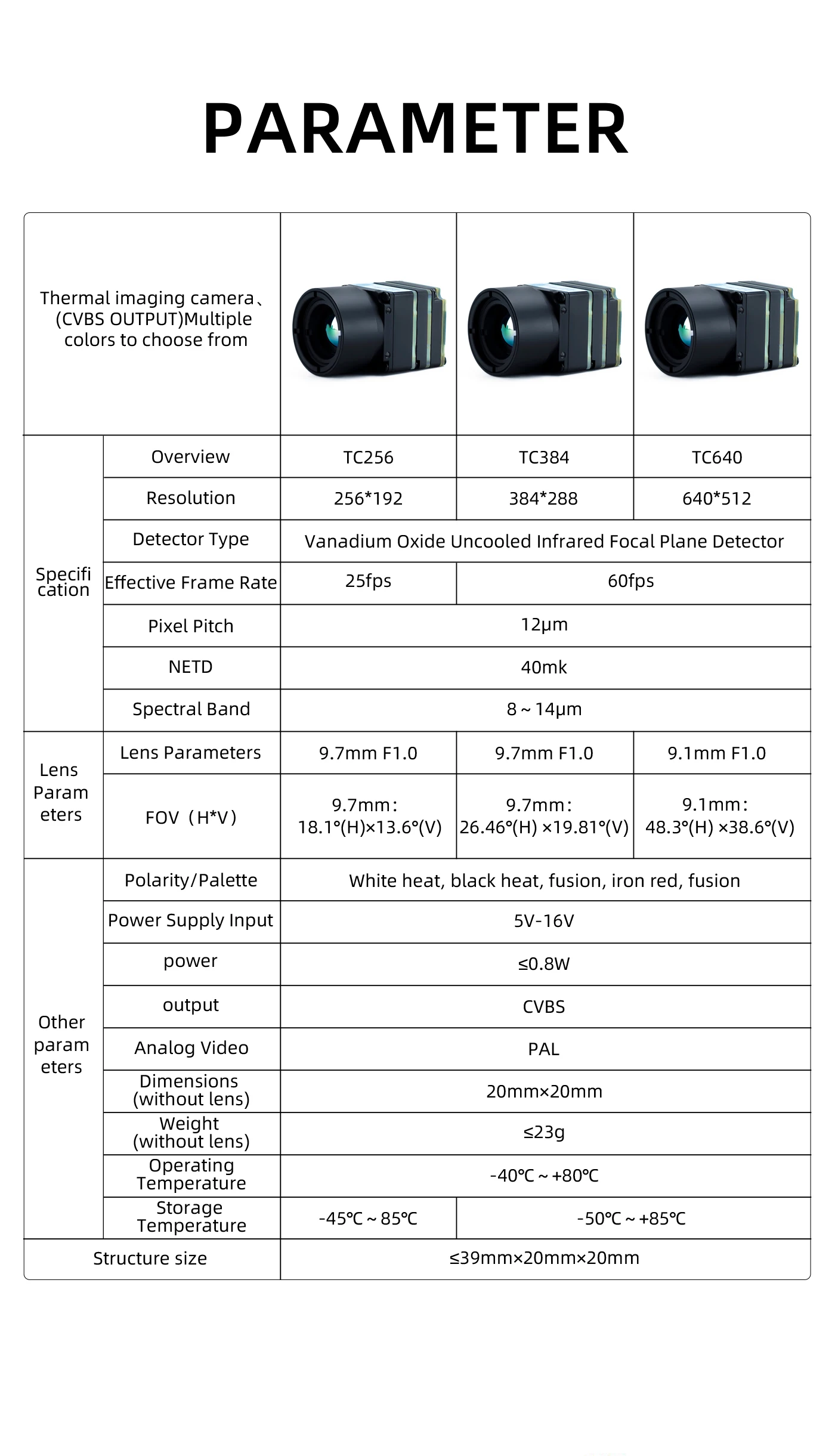

Specifications

• Resolution: 640×512 pixels
• Detector Type: Vanadium Oxide Uncooled Infrared Focal Plane Detector
• Frame Rate: 60fps
• Pixel Pitch: 12μm
• NETD: 40mK (thermal sensitivity)
• Spectral Band: 8-14μm (long-wave infrared)
• Lens: 9.1mm F1.0
• Field of View: 48.3°(H) × 38.6°(V)

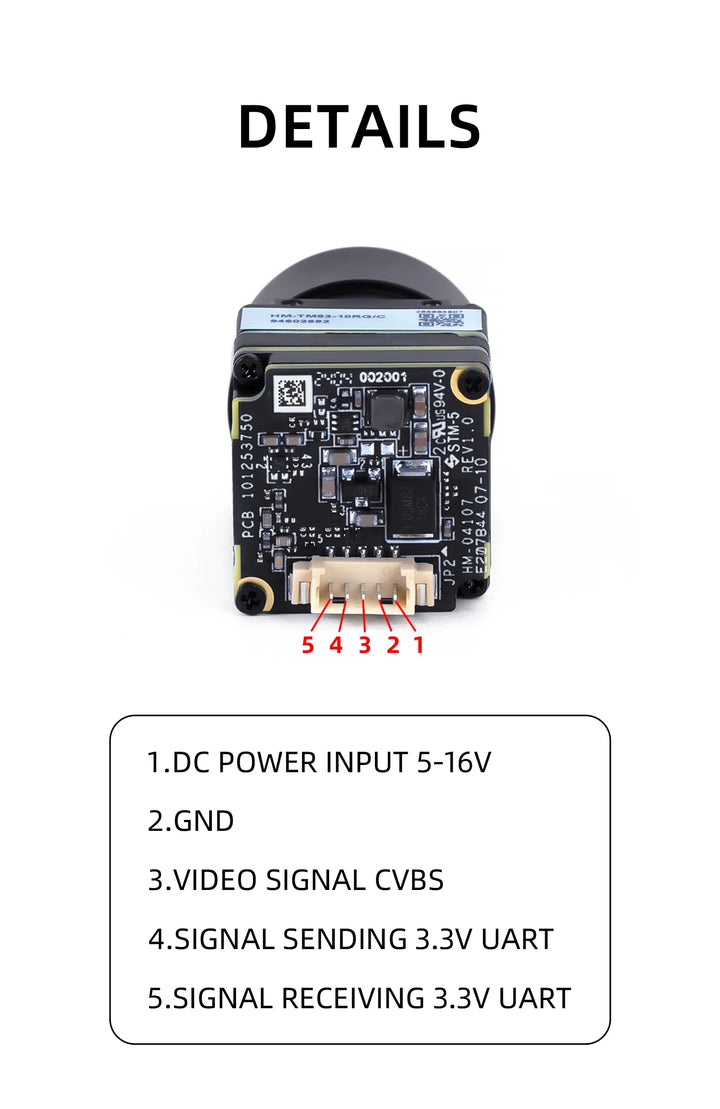

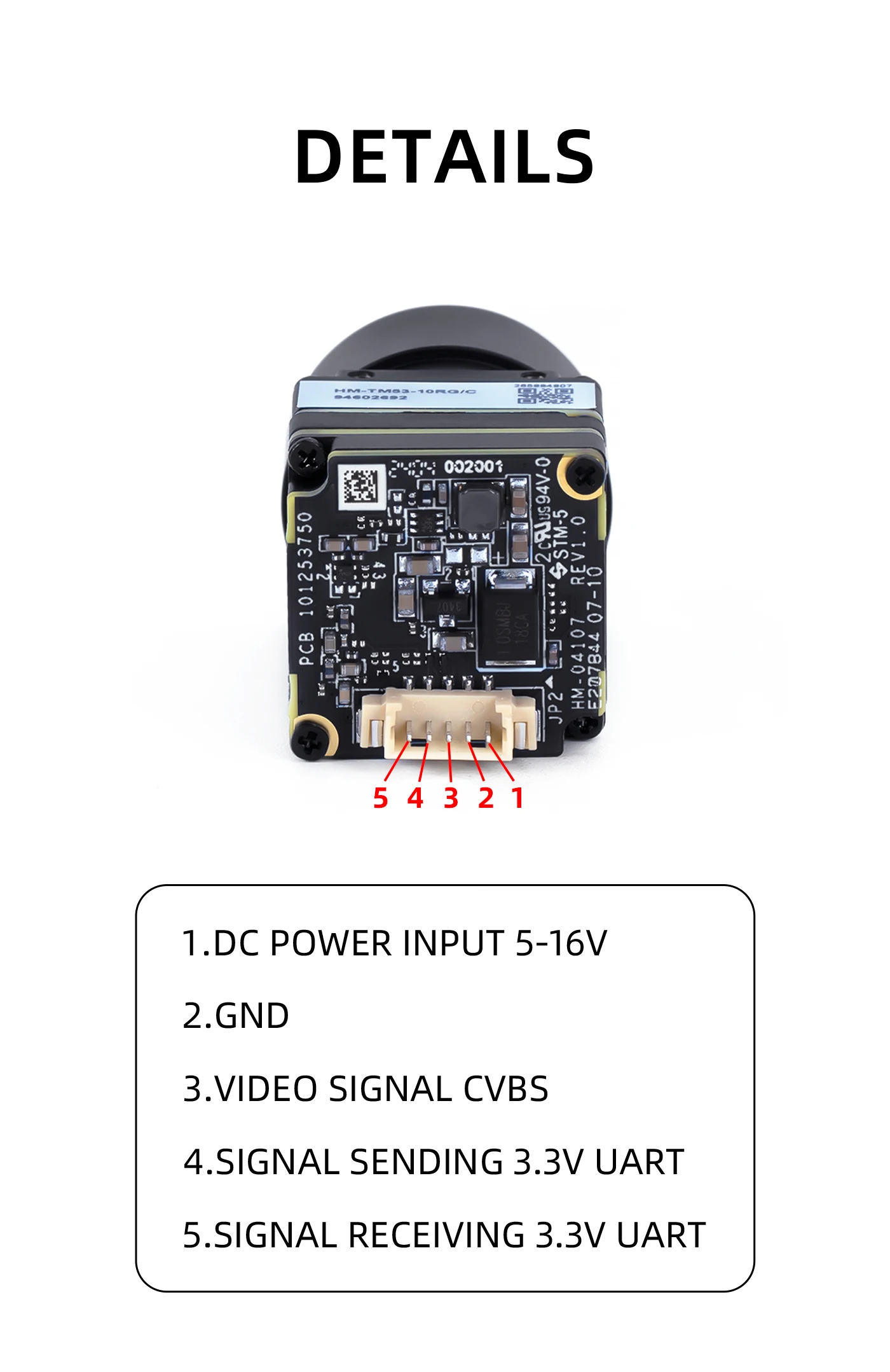

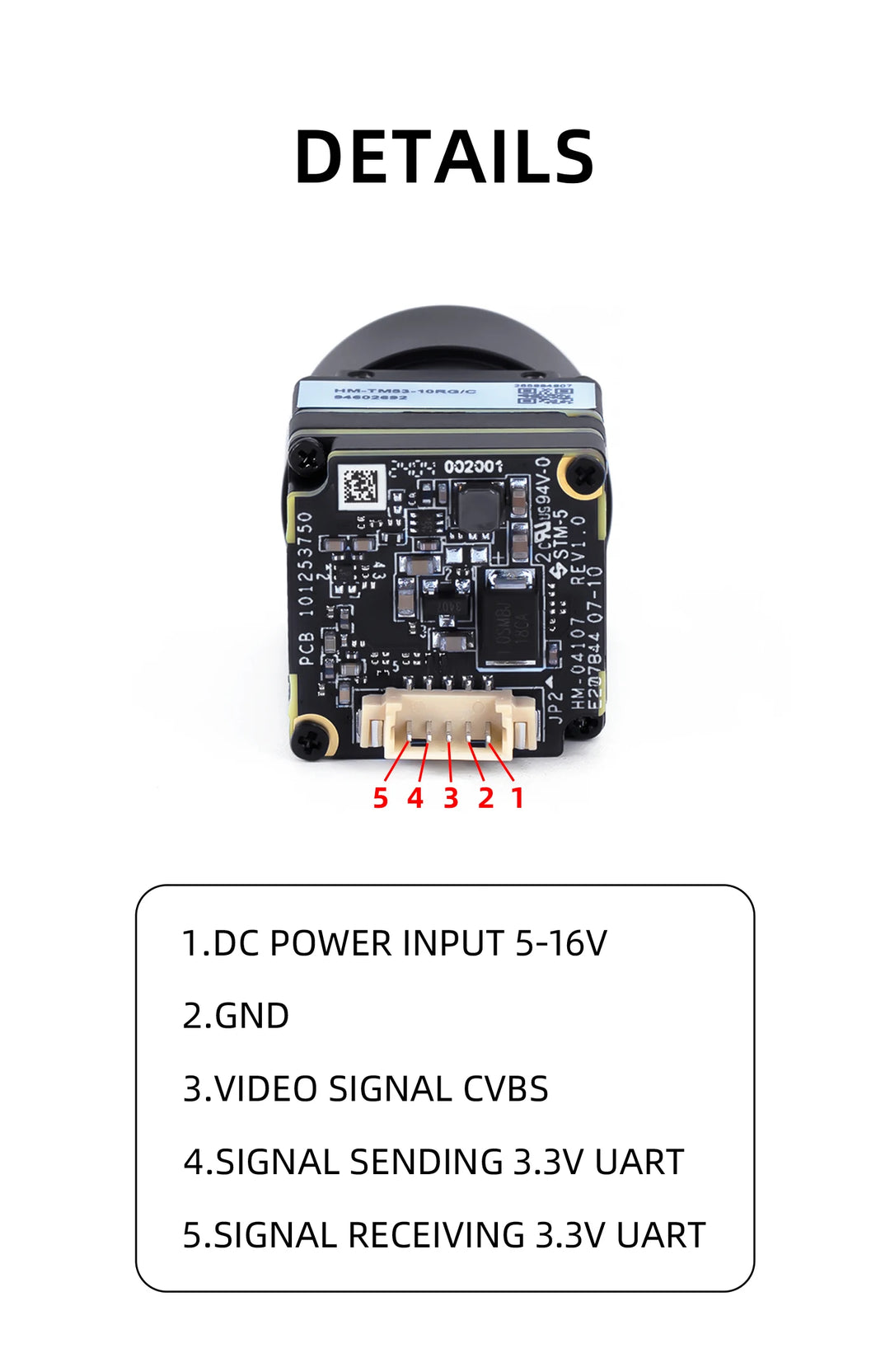

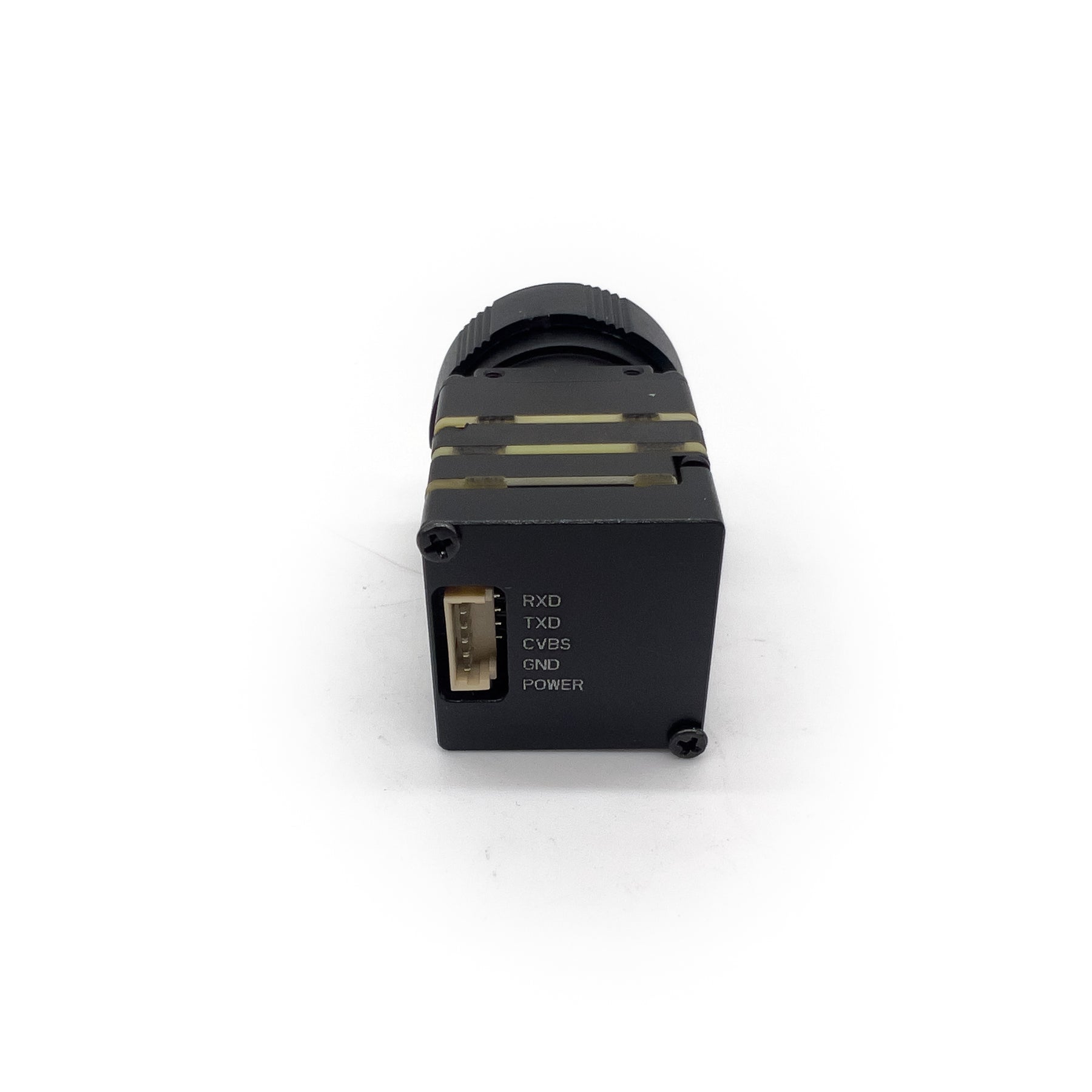

• Output: CVBS Analog Video
• Video Standard: PAL
• Power Input: 5V-16V
• Power Consumption: ≤0.8W
• Dimensions: 20mm × 20mm (without lens)
• Weight: ≤23g (without lens)
• Operating Temperature: -40°C to +80°C
• Storage Temperature: -50°C to +85°C

Features

• High-resolution 640×512 thermal imaging
• Multiple color palettes (white heat, black heat, fusion, iron red)
• Standard 20mm mounting pattern
• CVBS analog output for compatibility with standard FPV systems
• Wide operating voltage range (5V-16V)
• Low power consumption
• Compact and lightweight design
• Wide operating temperature range

Includes

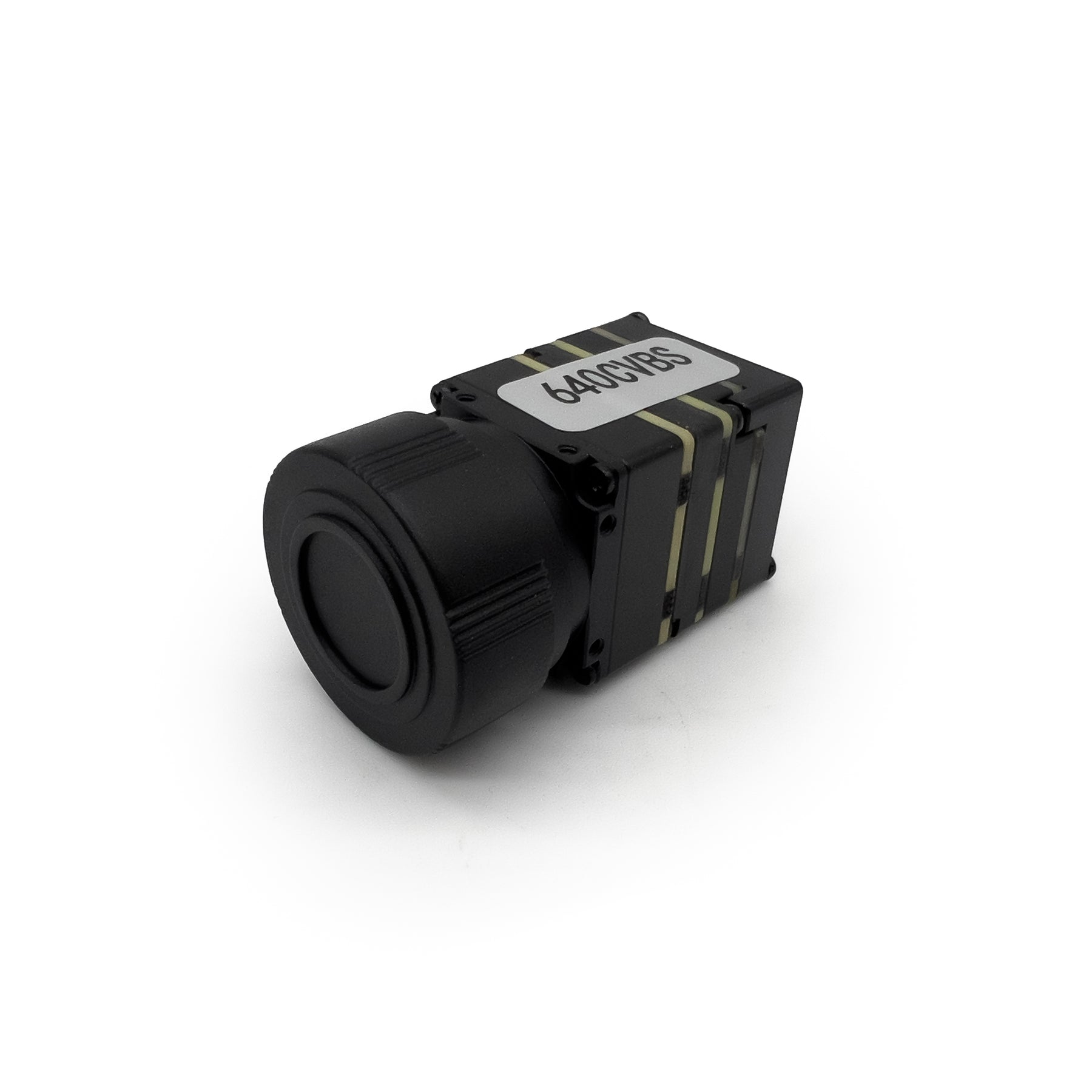

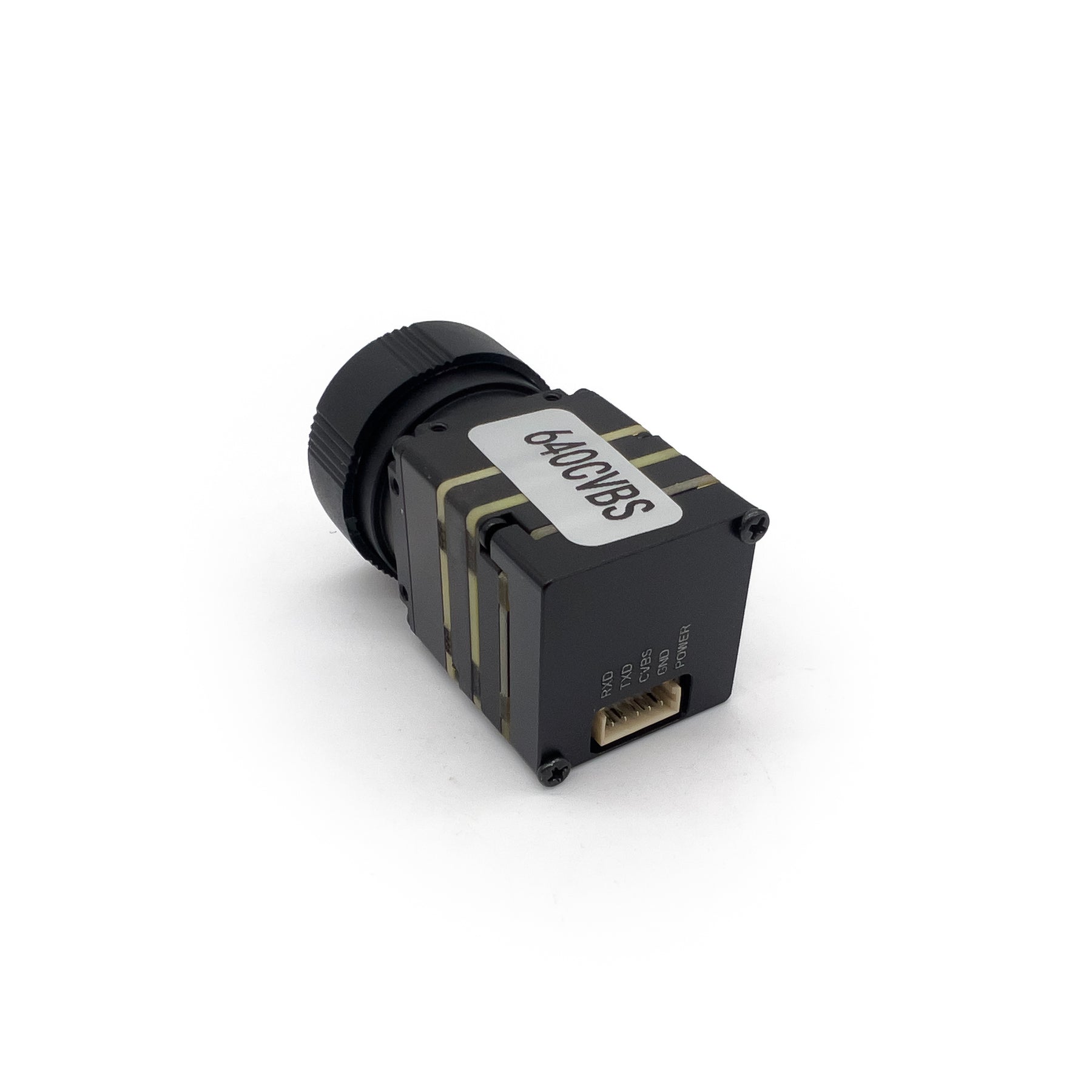

• 1 × TC640 Thermal Camera Module
• 1 × 9.1mm F1.0 Lens

Note: This is a professional thermal imaging device. Check local regulations regarding thermal imaging equipment before purchase and use.
